7-6 Wire connecting the indoor unit terminal blocks

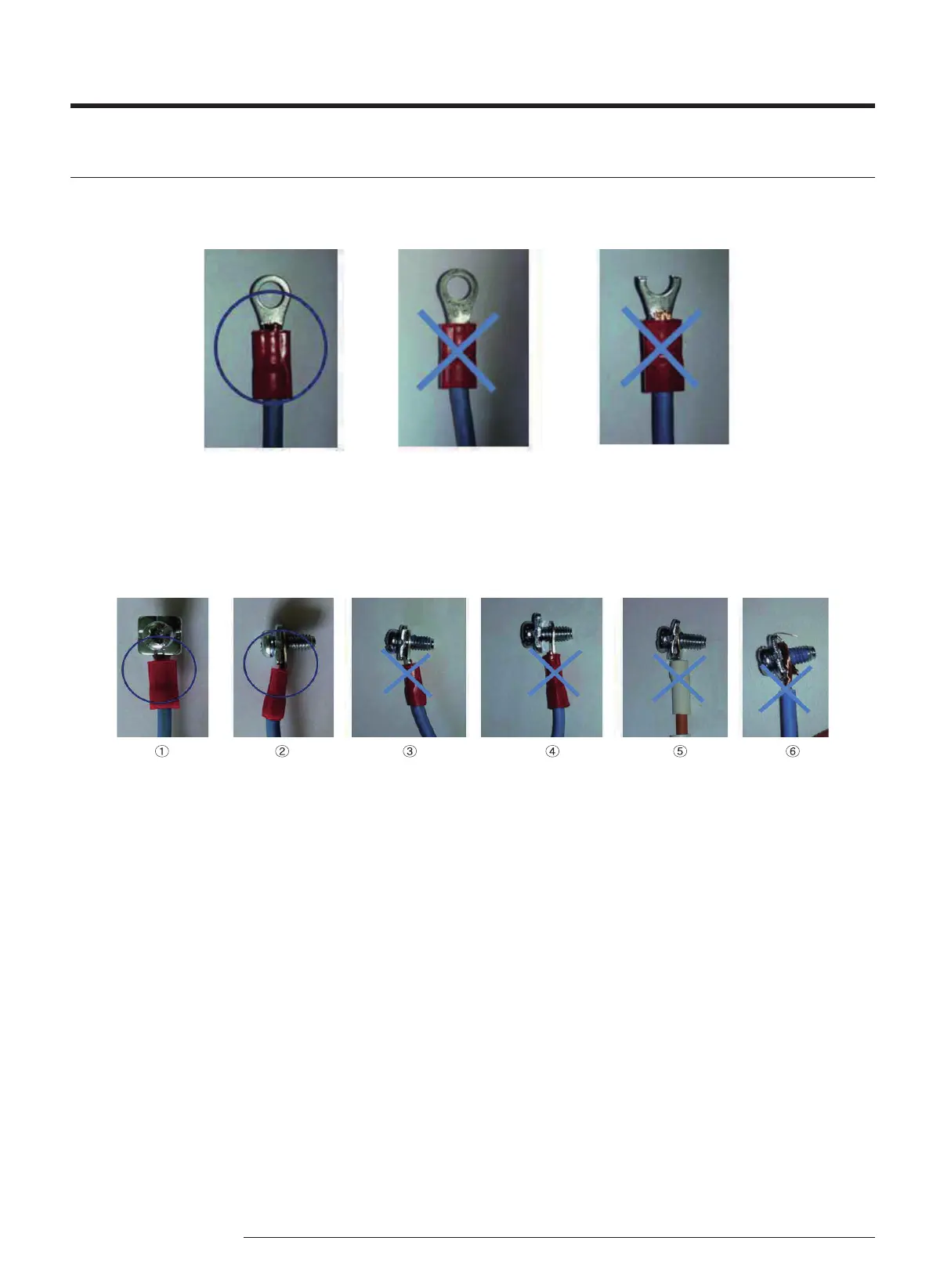

1. Terminal press of Ring terminal shall be set facing up before connecting wire.
Is inverted Terminalhasbeencut.
2. There shall be no empty space between Ring terminal and Screw after Clamp.
If not, there exists a possibility of re which can be caused by electric heat in the connecting part.
1,2 : Good
3 Bad : Ring terminal is connected reversely
4 Bad : Not clamped Screw
5 Bad : In the gap between Ring terminal & Screw
6 Bad : Unused Ring Terminal
