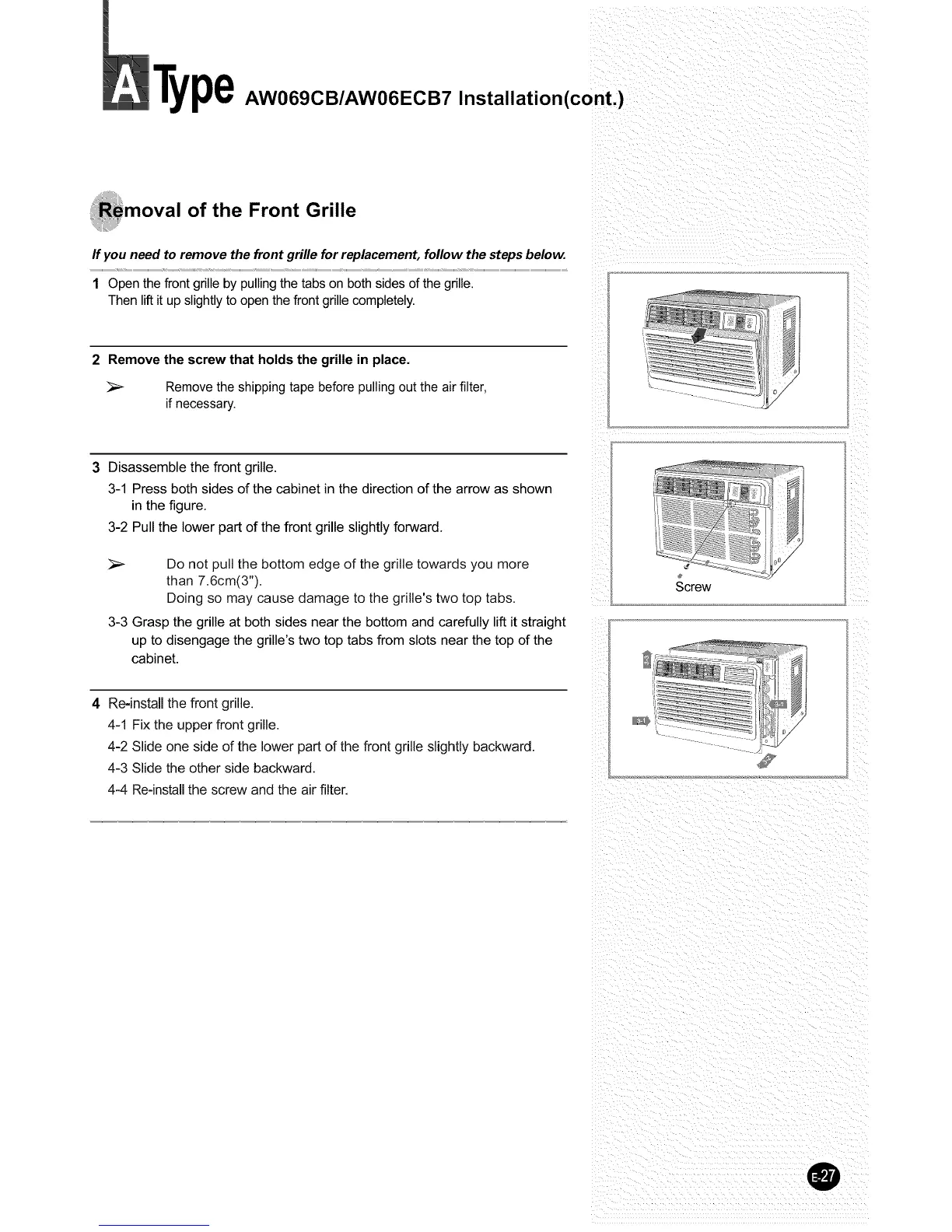

TypeAW069CB/AW06ECB7 Installation(cont.)
_moval of the Front Grille
ff you need to remove the front grille for replacement, follow the steps below.
1 Open the front grille by pulling the tabs on both sides of the grille.
Then lift it up slightly to open the front grille completely.
2 Remove the screw that holds the grille in place.
Remove the shipping tape before pulling out the air filter,
if necessary.
3 Disassemble the front grille.
3-1 Press both sides of the cabinet in the direction of the arrow as shown
in the figure.
3-2 Pull the lower part of the front grille slightly forward.
Do not pull the bottom edge of the grille towards you more
than 7.6cm(3").
Doing so may cause damage to the grille's two top tabs.
3-3 Grasp the grille at both sides near the bottom and carefully lift it straight
up to disengage the grille's two top tabs from slots near the top of the
cabinet.
Screw
4 RednstaJJ the front grille.
4-1 Fix the upper front grille.
4-2 Slide one side of the lower part of the front grille slightly backward.
4-3 Slide the other side backward.
4-4 Re-install the screw and the air filter.
@
