Samsung AZ12FADEA - Page 22

Samsung Electronics 4-5

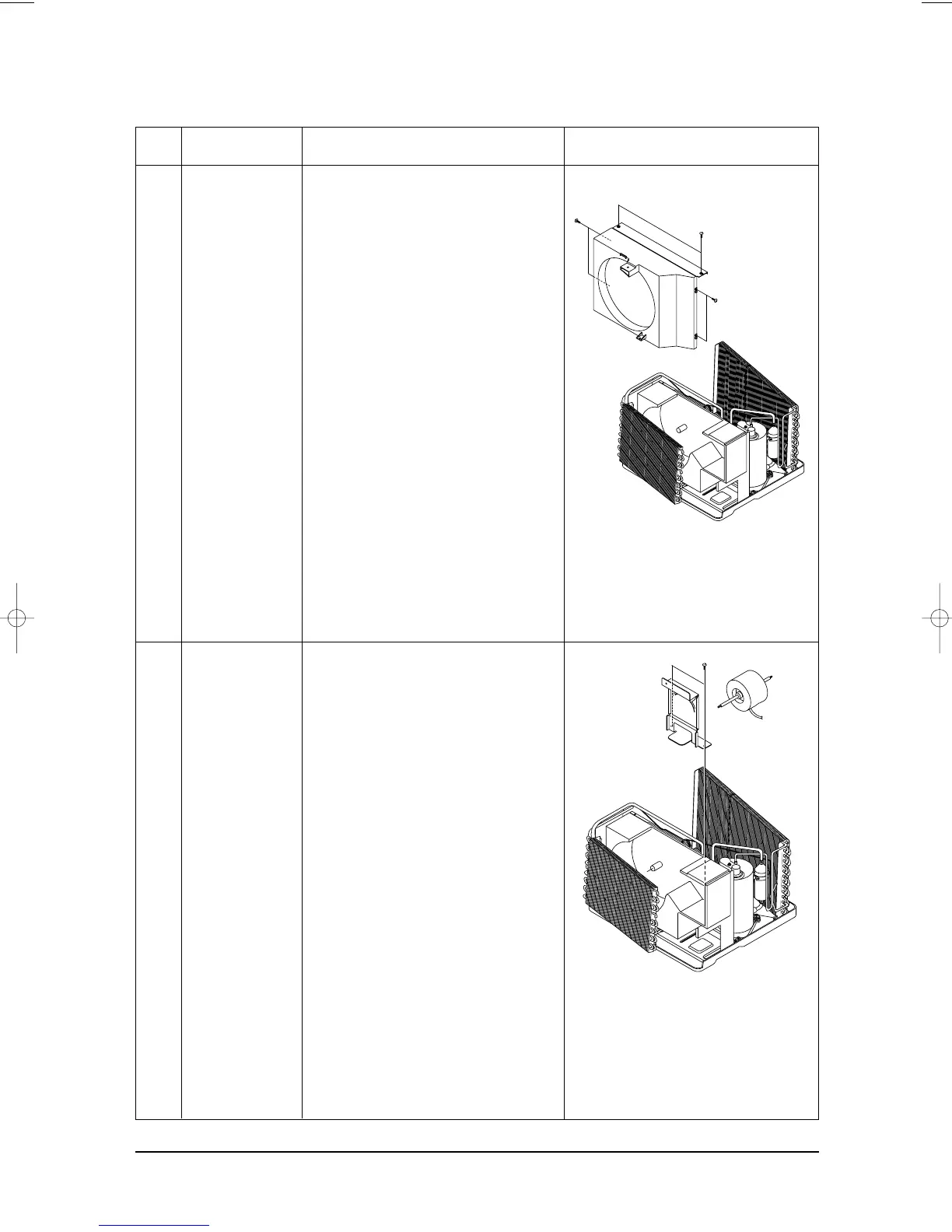

Disassembly and Reassembly
No. Part name Procedures Remarks
&
*
CASE COND
Motor
&
the others parts
1. Remove the CASE COND.
1. Remove 4 screws on the MOTOR, and
remove the motor.
2. Remove 4 screws on the mounter motor,
and remove the mounter motor.
3. Remove the CASE BLOWER.
4. Remove 4 screws on the PARTITION.
DB98_04511A(2)-1 2/18/03 4:09 PM Page 4-3
