4-6 Samsung Electronics

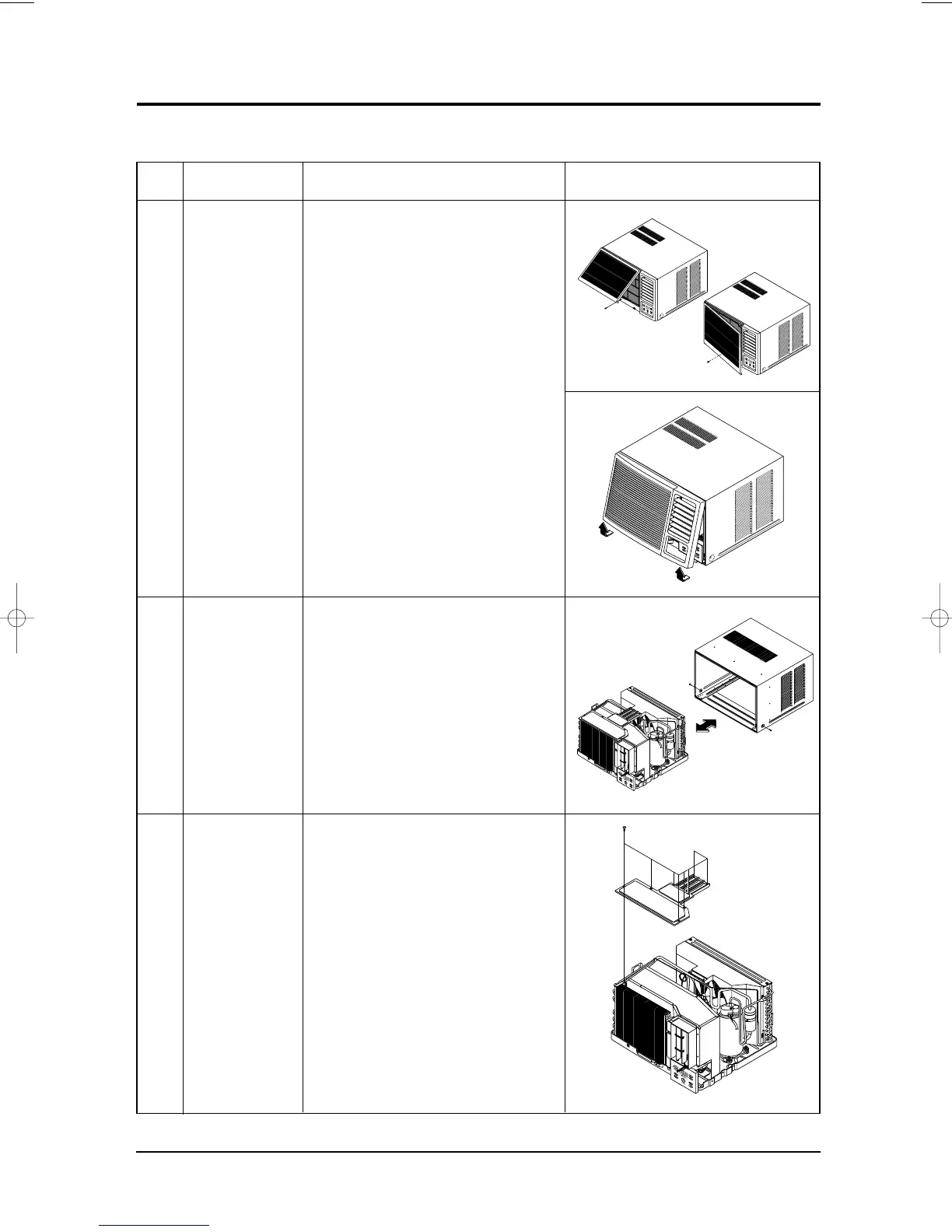

Disassembly and Reassembly Procedure (Type “B”)
Stop operating the air conditioner, and pull out the power cord before repair.
No. Part name Procedures Remarks
!
@
#
Ass'y Grill
Ass'y Cabinet
COVER-EVAP
1. Pull the grille air inlet and remove the
screw on the grille.
2. Hold the lower part of the grill with two
hands while pressing down on both sides
of the lower part of the cabinet, pull it
forward by about 30, and then lift it up for
removal.
1. Remove the screws on both sides of the
cabinet to disconnect the cabinet and
frame.
2. Pull the handle on the front side of the
bottom, and remove the unit from the
cabinet.
1. Remove the 8 screws on the COVER
EVAP.
2. Remove the COVER EVAP.
*The type of front-panel
depends on models.
DB98_04511A(2)-1 2/18/03 4:09 PM Page 4-4
To Next Page
