Samsung Electronics 4-11

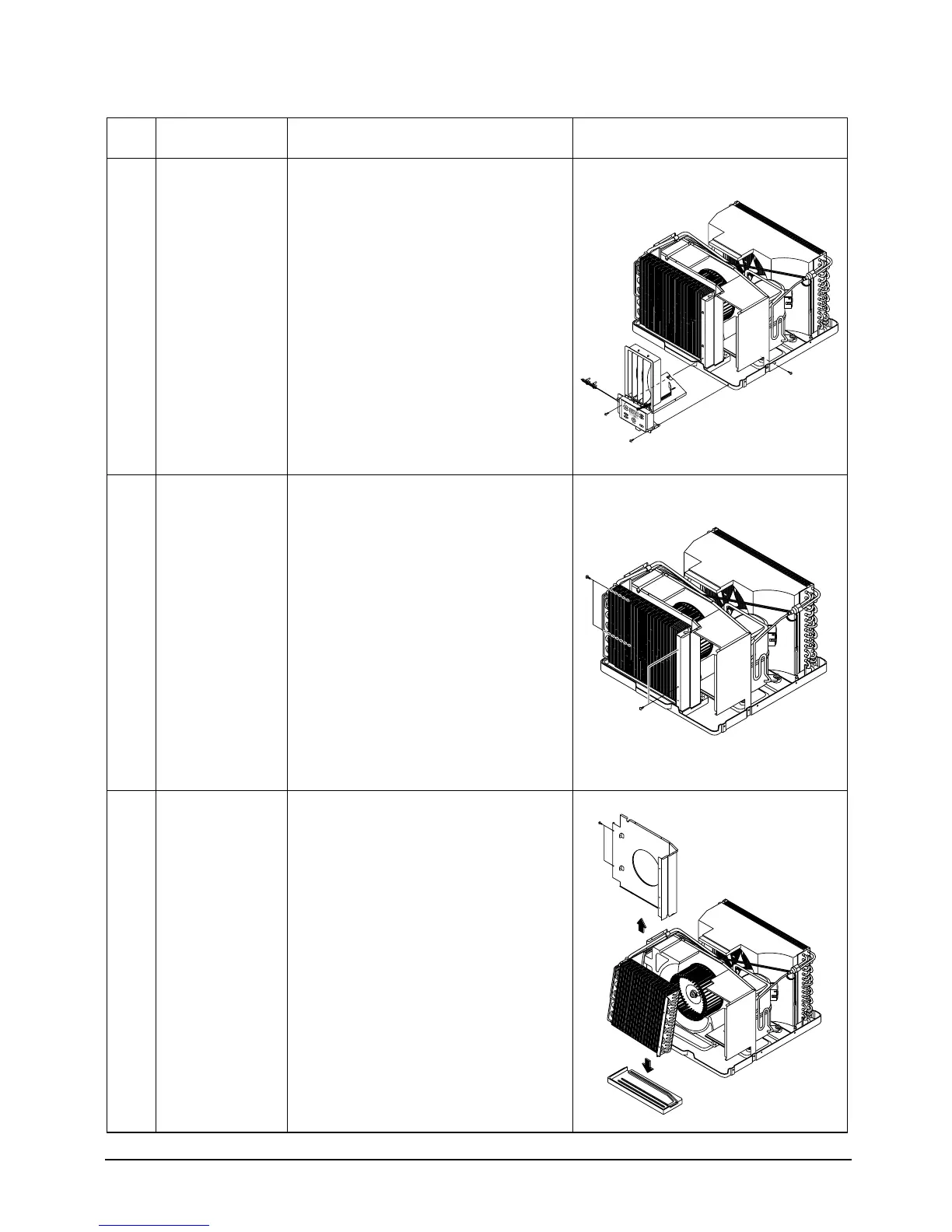

Disassembly and Reassembly
No. Part name Procedures Remarks
$
%
Ass’y - Evaporator
Plate - Evap Casing
2. Remove 3 screw on the control box and
two lead wire assemblies.
3. Take out the control box forward.
1. Remove for screws on the left and right
side of the evaporator.
1. Lift up the evaporator, and remove the tray
drain.
2. Remove two screws on the left side of the
plate evap casing.
(J)DB98-03455A(1)-1 9/12/01 1:24 PM Page 4-7
To Next Page
