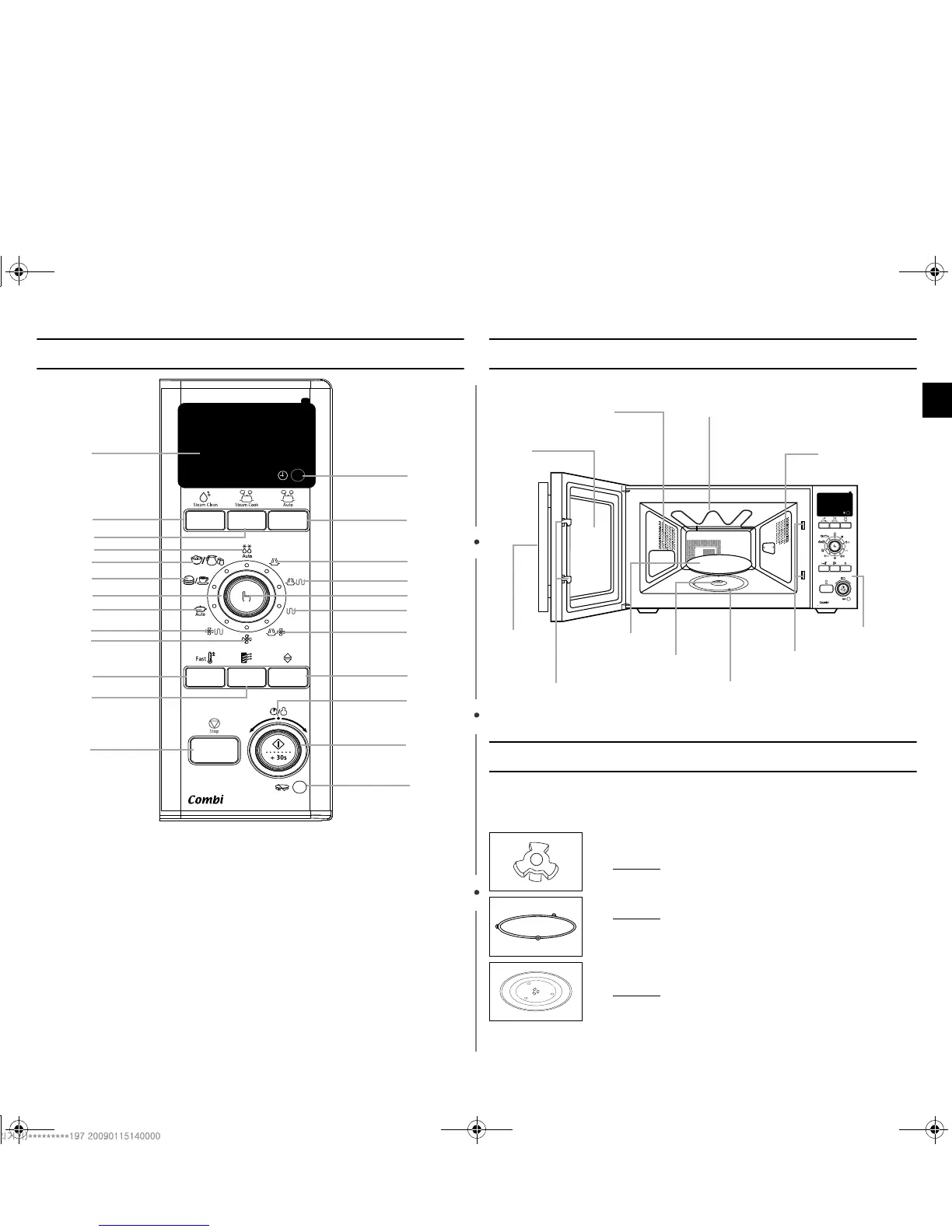

Control Panel Oven
Accessories
Depending on the model that you have purchased, you are supplied
with several accessories that can be used in a variety of ways.
1
2
3
4
5
16
6
24
17
18
21
7
8
10
11
12
15
22
13
14
23
1. DISPLAY
2.
STEAM CLEAN BUTTON
3. STEAM COOK BUTTON
4. AUTO DEFROST FEATURE MODE
5. FERMENTATION MODE
6. JUNIOR/ SNACK MODE
7. SET DIAL
8. AUTO COOK FEATURE MODE
9. COMBINED MODE
(CONVECTION+GRILL)
10. CONVECTION MODE
11. FAST PREHEAT SELECTION
12. DEODORIZATION BUTTON
13. STOP / CANCEL BUTTON
14. CLOCK SETTING BUTTON
15. AUTO STEAM BUTTON
16. MICROWAVE MODE
17. COMBINED MODE
(MICROWAVE+GRILL)
18. SELECT BUTTON
19. GRILL MODE
20. COMBINED MODE
(MICROWAVE+CONVECTION)
21. MORE/LESS BUTTON
22. JOG DIAL
23. START BUTTON
24. TURNTABLE ON/OFF BUTTON
20
9
19
1. Coupler, to be placed correctly over the motor shaft in the
base of the oven.
Purpose:
The coupler rotates the turntable.
2. Roller ring
, to be placed in the center of the oven.
Purpose: The roller ring supports the turntable.
3. Turntable
, to be placed on the roller ring with the center
fitting on to the coupler.
Purpose: The turntable serves as the main cooking
surface; it can be easily removed for cleaning.
VENTILATION HOLES
DOOR LATCHES
DOOR
TURNTABLE
COUPLER
ROLLER RING
SAFETY
INTERLOCK HOLES
VENTILATION
HOLES
HEATING ELEMENT
CONTROL PANEL
DOOR
HANDLE
