No Code No Description;Specification Q’ty Remark

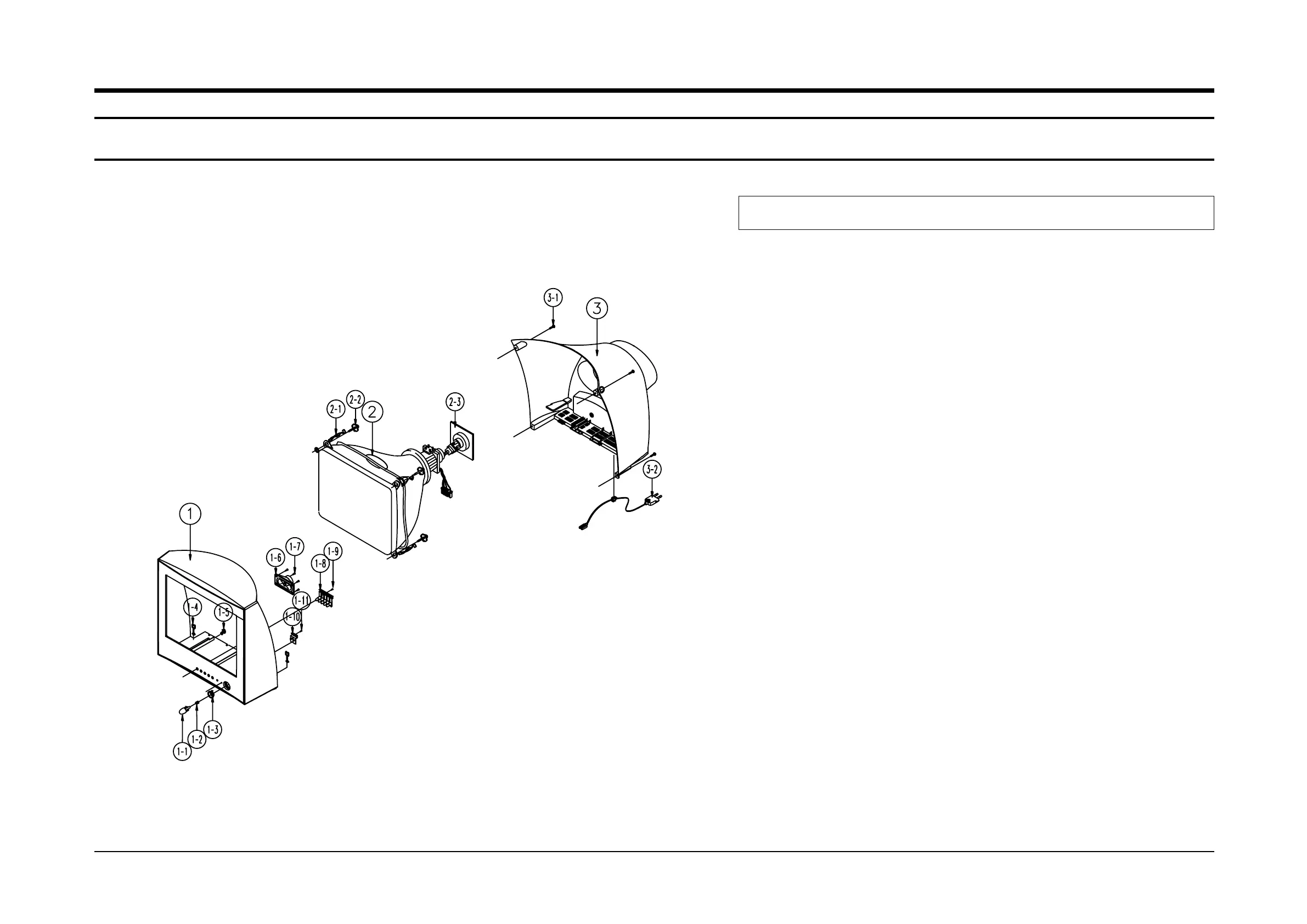

6. Exploded View & Parts List
6-1 CS15K2X/BWT
Exploded View & Parts List
Samsung Electronics 6-1
1 AA91-00649C ASSY CABINET FRONT;,15K2,(SPK)SV012P MPP 1
AA64-01691D CABINET FRONT;15K2,SV012P MPP,HIPS,HB,G7 1
1-1 AA64-01693B KNOB POWER;15K2,ABS,G3676,SV104M+W971,HB 1
1-2 AA61-60003J SPRING-CS;-,SUS304,0.5,OD6,H12,N7,-,-,- 1
1-3 AA64-01697B DECORATION-POWER;15K2,PC,SEMI-VIOLET 1
1-4 AA65-30105A CLAMP-WIRE;NYLON 66,V2,NTR,15MM,ALL MODE 1
1-5 AA61-40113A STOPPER-PCB;501H,HIPS,-,-,HB,NTR,- 1
1-6 AA96-00652A ASSY SPEAKER;-,16OHM,3W,3001-001211,200M 1
1-7 6003-001022 SCREW-TAPTITE;RH,+,B,M3,L12,ZPC(BLK),SWR 4 SPK+CF
1-8 AA64-01696B KNOB CONTROL;15K2,ABS,G3676,SV104M+W971, 1
1-9 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR 1 KC+CF
1-10 AA64-01694B WINDOW REMOCON;15K2,ACRYL,CLR 1
1-11 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR 1 WIN+CF
2 AA03-00146A CRT COLOR;-,A36QDT351X,+380mG,15inch,90, 1
2-1 AA65-30107A CLAMP-D,COIL;NYLON 66,V2,NTR,-,20~22 INC 2
2-2 AA60-10050R SCREW-ASSY;-,SWRCH18A,M5,L31.5,HH,+,WC,- 4 CRT
2-3 3704-001105 SOCKET-CRT;11P,20PI,26.5PI,NI,- 1
3 AA64-01692C CABINET BACK;15K2,HIPS,V2,BLK 1
3-1 AA60-10050T SCREW-TAPPING;-,SWRCH18A,M4,L20,RH,+,2S, 4 CB+CF
3-2 AA96-20109B ASSY-POWER,CORD;-,CP2/NO(4.0),H/C250,KKP 1
