Samsung DB10E-T User Manual
4
of 1
of 1 rating
167 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
52
Connecting to MDC
Using MDC via Ethernet
Enter the IP for the primary display device and connect the device to the PC. Display devices can be connected to each other using a LAN cable.

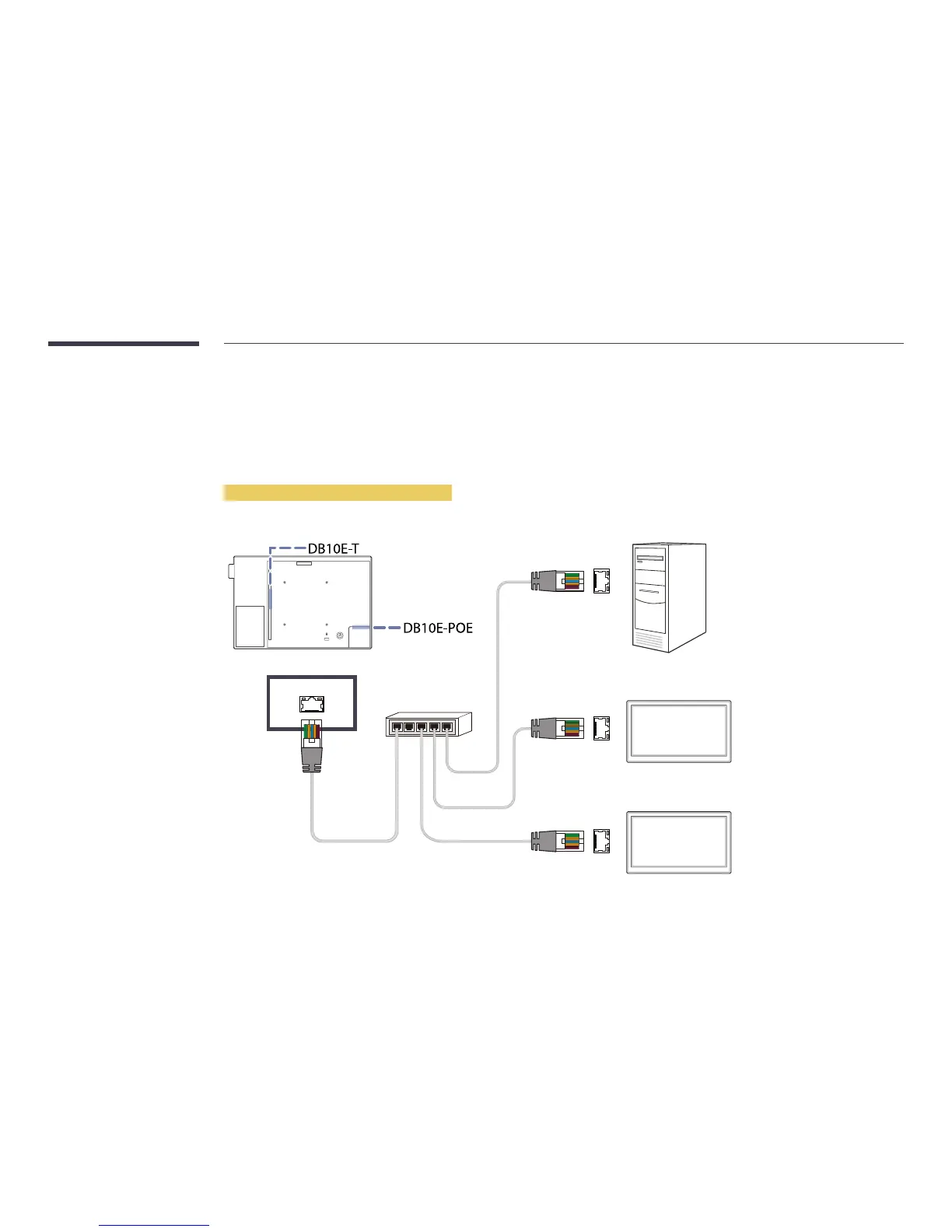

Connection using a direct LAN cable
―
Multiple products can be connected using the
RJ45
por
t on the product and the LAN ports on the HUB.
RJ45
HUB
Monitor 1
Monitor 2
Computer
51
53
Table of Contents
Default Chapter
2
Table of Contents
2
Before Using the Product
6
Copyright
6
Safety Precautions
7
Symbols
7
Cleaning
7
Storage
8
Electricity and Safety
8
Installation
9
Operation
11
Preparations
14
Checking the Components
14
Components
14
Parts
15
Control Panel
15
Reverse Side
16
Anti-Theft Lock
17
Spacer Logo
17
Remote Control
18
Before Installing the Product (Installation Guide)
20
Ventilation
20
Dimensions
21
Using the STAND-BAR
22
Installing the Wall Mount
23
Installing the Wall Mount Kit
23
Wall Mount Kit Specifications (VESA)
23
Remote Control (RS232C)
24
Cable Connection
24
Connection
27
Control Codes
28
Using a Touchscreen Monitor
37
Touchscreen Monitor
37
Read below before Using the Product
37
Requirements
38
Connecting the Touchscreen Monitor
39
Connecting to a PC
39
Connecting to a Laptop or Tablet PC
40
Configuring the Touchscreen Monitor Settings
41
Calibrating a Monitor
41
Calibration
42
Controlling the Screen
44
Touchscreen Gestures
44
Notes
45
Connecting and Using a Source Device
47
Before Connecting
47
Pre-Connection Checkpoints
47
Connecting to a PC
47
Connection Using an HDMI Cable
47
Connection Using an HDMI-DVI Cable
48
Connecting to a Video Device
48
Connection Using an HDMI Cable
49
Connecting the LAN Cable
49
Changing the Input Source
50
Source
50
Using MDC
51
MDC Programme Installation/Uninstallation
51
Installation
51
Uninstallation
51
Connecting to MDC
52
Using MDC Via Ethernet
52
Home Feature
53
Player
53
Approving a Connected Device from the Server
54
Network Channel
58
Local Channel
58
Published Content
58
Published Channel
58
My Templates
58
Available Features in the Player Page
59
Player Page Settings Menu
60
When Content Is Running
62
File Formats Compatible with Player
64
File Formats Compatible with Videowall
69
Schedule
71
Available Features in the Schedule Page
71
Template
73
Clone Product
76
ID Settings
77
Device ID
77
PC Connection Cable
77
Device ID Auto Set
77
Screen Saver
78
Network Status
78
Video Wall
79
On/Off Timer
81
On Timer
81
Off Timer
82
Holiday Management
82
Ticker
83
More Settings
83
URL Launcher
84
Screen Adjustment
85
Picture Mode
85
Backlight / Contrast / Brightness / Sharpness / Colour / Tint (G/R)
86
Sharpness / Colour / Tint (G/R) 86
87
Colour Temperature
87
White Balance
88
Point
88
Gamma
89
Calibrated Value
89
Advanced Settings
90
Dynamic Contrast
91
Black Tone
91
Flesh Tone
91
RGB Only Mode
91
Colour Space
91
Motion Lighting
91
Picture Options
92
Colour Tone
93
Digital Clean View
93
MPEG Noise Filter
93
HDMI Black Level
94
Film Mode
94
Dynamic Backlight
94
Picture Size
95
Position
96
Zoom/Position
96
Picture off
97
Reset Picture
97
Onscreen Display
98
Display Orientation
98
Onscreen Menu Orientation
98
Source Content Orientation
98
Aspect Ratio
98
Screen Protection
99
Auto Protection Time
99
Screen Burn Protection
99
Message Display
102
Source Info
102
No Signal Message
102
MDC Message
102
Download Status Message
102
Menu Language
103
Reset Onscreen Display
103
Sound Adjustment
104
Sound Mode
104
Sound Effect
105
Dialog Clarity
105
Equaliser
105
Dolby Digital Comp
106
Speaker Settings
106
Sound Output
106
Auto Volume
107
Reset Sound
107
Network
108
Network Status
108
Network Settings
108
Network Type
108
Network Settings (Wired)
109
Network Setting (Wireless)
111
Wps(Pbc)
113
Wi-Fi Direct
114
Multimedia Device Settings
114
Screen Mirroring
115
Server Network Settings
115
Connect to Server
115
Magicinfo Mode
115
Server Access
115
FTP Mode
115
Device Name
116
System
117
Accessibility
117
Menu Transparency
117
High Contrast
117
Enlarge
117
Setup
118
Initial Settings (System)
118
Touch Control
120
Touch Control Lock
120
Admin Menu Lock
120
Device to Control
120
Time
121
Clock Set
121
Dst
121
Sleep Timer
121
Power on Delay
121
Auto Source Switching
122
Primary Source Recovery
122
Primary Source
122
Secondary Source
122
Power Control
123
Auto Power on
123
Max. Power Saving
123
Standby Control
123
Power Button
123
Network Standby
123
Eco Solution
124
Energy Saving
124
Screen Lamp Schedule
124
No Signal Power off
124
Auto Power off
124
Temperature Control
125
Device Manager
126
Keyboard Settings
126
Mouse Settings
127
Play Via
128
Change PIN
128
Security
129
Safety Lock
129
Button Lock
129
USB Auto Play Lock
129
General
130
Smart Security
130
BD Wise
131
Anynet+ (HDMI-CEC)
132
HDMI Hot Plug
136
DIVX® Video on Demand
136
Game Mode
136
Reset System
137
Software Update
138
Update Now
138
Auto Update
138
Contact Samsung
138
Go to Home
138
Reset All
138
Playing Photos, Videos and Music (Media Play)
139
Read the Following before Using Media Play with a USB Device
139
Using Media Play with a USB Device 139
141
Using a USB Device
141
Playing Media Content from a Pc/Mobile Device
142
Features Provided in the Media Content List Page
143
Menu Items in the Media Content List Page
144
Available Buttons and Features During Photo Playback
145
Available Buttons and Features During Video Playback
146
Available Buttons and Features During Music Playback
147
Supported Subtitle and Media Play File Formats
148
Subtitle
148
Supported Image Resolutions
148
Supported Music File Formats
149
Supported Video Formats
149
Customer Service Centre
151
Troubleshooting Guide
151
Requirements before Contacting Samsung Customer Service Centre
151
Testing the Product
151
Checking the Resolution and Frequency
151
Check the Followings
152
Specifications
157
General
157
Powersaver
158
Preset Timing Modes
159
(Cost to Customers)
162
Appendix Responsibility for the Pay Service (Cost to Customers)
162
Not a Product Defect
162
A Product Damage Caused by Customer's Fault
162
Others
162
Weee
163
Correct Disposal of this Product (Waste Electrical & Electronic Equipment)
163
Correct Disposal of Batteries in this Product
163
Afterimage Burn-In Prevention
164
Optimum Picture Quality and Afterimage Burn-In Prevention
164
Optimum Picture Quality
164
Prevention of Afterimage Burn-In
164
Licence
166
Terminology
167
