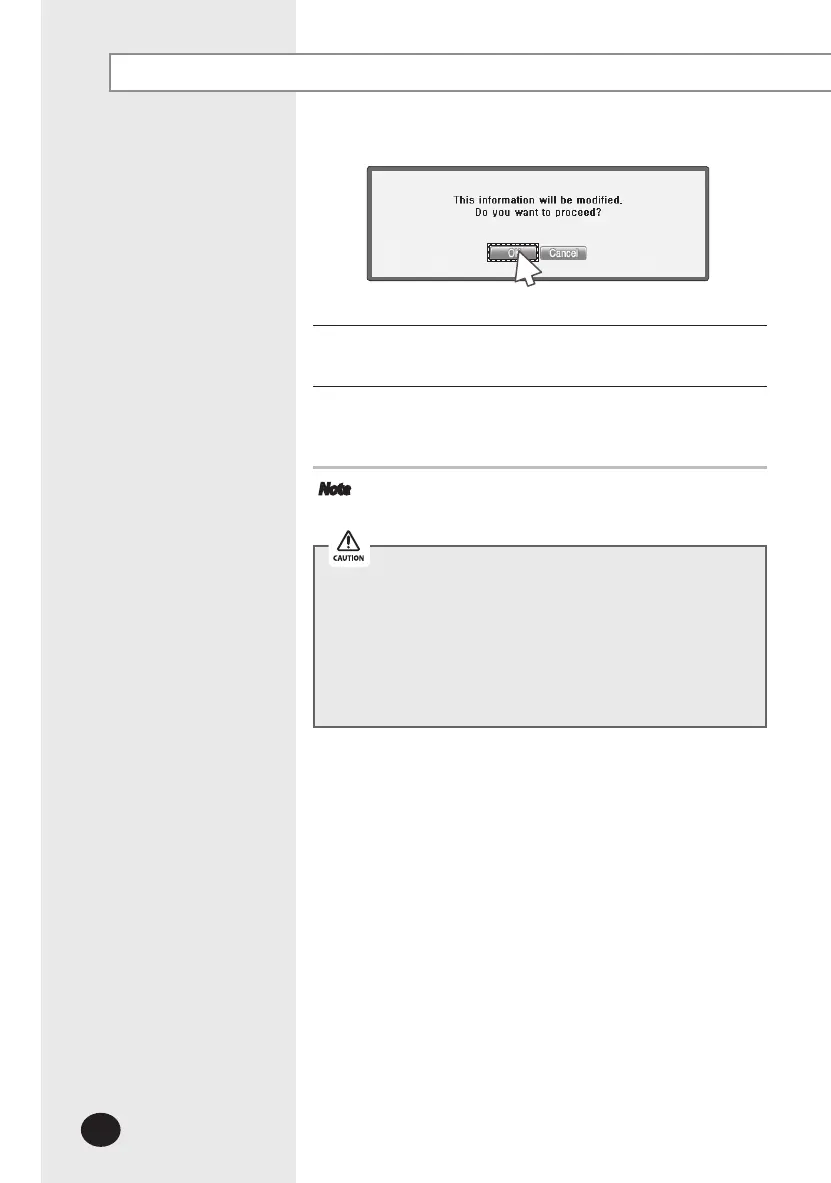

E-18
Installing the DMS2 (Continued)
5
Click [OK] when “This information will be modified. Do
you want to proceed?” message window appears.
6
“Reading data from DMS2. Please wait.” message appears
and saving is completed. Then, system environment
setting screen appears again with all items are disabled.
Note
Pattern 1 is set as factory setting.
DMS2 has total 10 DI ports. However, actually used DI ports
are Ch1 and Ch2, and the rest of the ports (Ch3~Ch10) are
for additional functions. Therefore, make sure to connect
Ch1 or Ch2 when using it.
For DO, Ch1 and Ch2 are currently used inside of DMS2.
Ch9 and Ch10 are reserved in case of need. Therefore you
can only use Ch3~Ch8.
5
