setting up your dishwasher _11

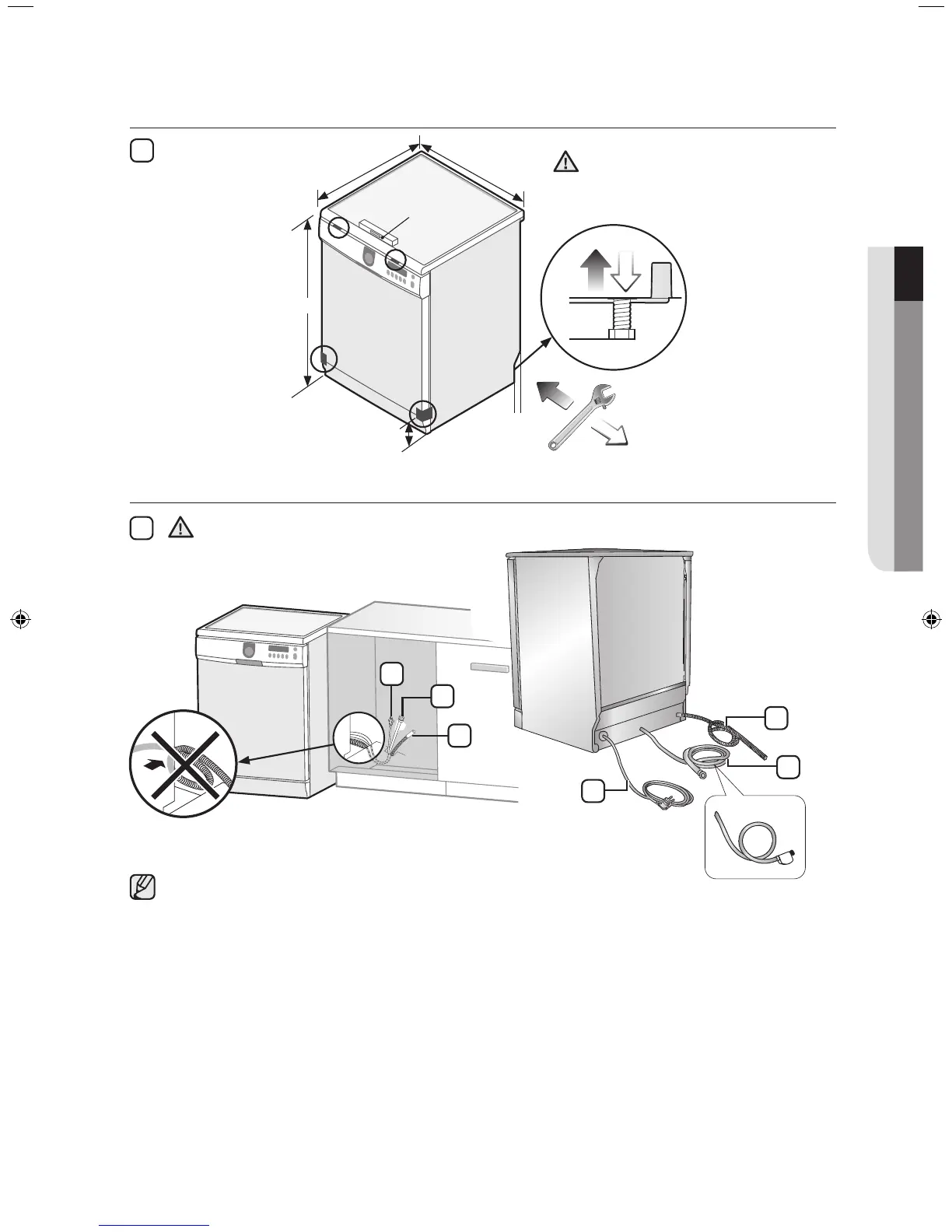

01 setting up your dishwasher
0~35mm
87
35
605
598
845
Level
Make sure that the dishwasher is
level using a leveling tool.
Remove the four protective pieces
of rubber.
CAUTION
1
C
B
A
Aqua stop
(models: DMS400TR/
DMS500TR/D146)
A
B
C
2
Make sure that the hoses are not bent when
you insert the dishwasher into its location in
your kitchen unit .
CAUTION
A: MAXIMUM DRAIN CONNECTION LENGTH 2.9 M
B: MAXIMUM SUPPLY CONNECTION LENGTH 1.5 M
C: MAXIMUM POWER CONNECTION LENGTH 1.6 M
