E-4
Preparation for installation
When deciding on the location of the air conditioner with the owner,
the following restrictions must be taken into account.
Do NOT install the air conditioner in a location where it will come into
contact with the following elements:
Combustible gases
Saline air
Machine oil
Sulphide gas
Special environmental conditions
If you must install the unit in such conditions, first consult your dealer.
General

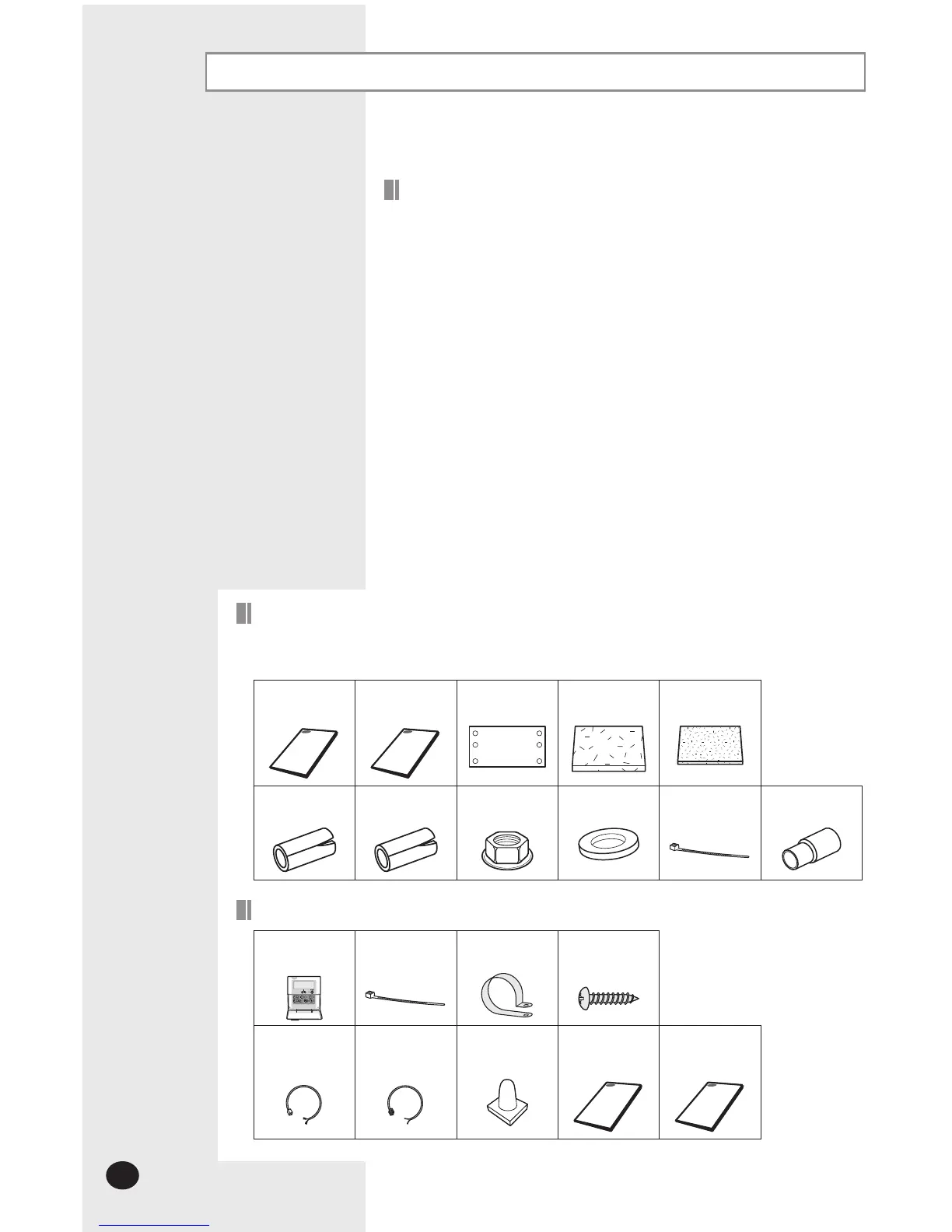

Accessories
The following accessories are supplied with the indoor unit.
The type and quantity may differ depending on the specifications.
User’s
manual
Installation
manual
Pattern sheet Insulation drain Insulation
cover pipe
Insulation pipe Insulation
drain pipe
Nut Rubber Cable-tie Drain socket
Wired remote control accessories
Wired remote
control
Cable-tie Cable clamp M4x16
tapped screw
Indoor unit power
drawing cable
Communication
cable of the wired
remote control
Wire joint User’s
manual
Installation
manual
Avoid installing the air conditioner:
In areas where it is exposed to direct sunlight. Close to heat sources.
In damp areas or locations where it could come into contact with water
(for example rooms used for laundry)
In areas where curtains and furniture could affect the supply and discharge of air.
Without leaving the required minimum space around the unit (as shown in the
drawing).
In scarcely ventilated areas.
On surfaces that are unable to support the weight of the unit without deforming,
breaking or causing vibrations during the use of the air conditioner.
In a position that does not enable the condensate drainage pipe to be correctly
installed (at the end of the installation. It is always essential to check the efficiency
of the drainage system.)
