E-5
ENGLISH

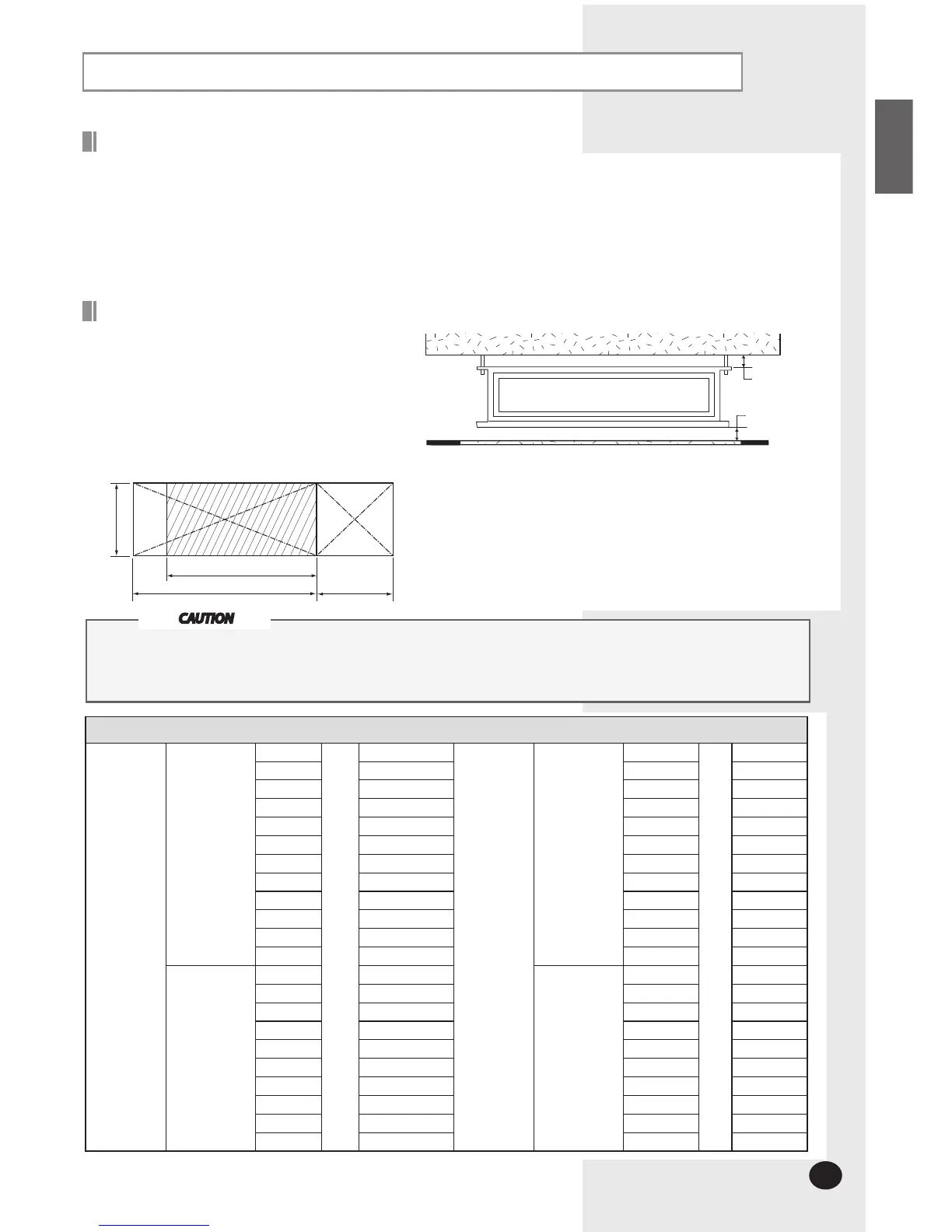

Deciding on where to install the indoor unit
Indoor unit
There must be no obstacles near the air inlet and outlet.
Install the indoor unit on a ceiling that can support its weight.
Maintain sufficient clearance around the indoor unit.
Make sure that the water dripping from the drain hose runs away correctly and safely.
The indoor unit must be installed in this way, that they are out of public access. (Not touchable by the users)
After connecting a chamber, insulate the connection part between the indoor unit and the chamber with t10 or
thicker insulation. Otherwise, there can be air leak or dew from the connection part.
Space requirements for installation & service
You must have20mm or more space between the ceiling and the bottom of indoor
unit. Otherwise, the noise from the vibration of indoor unit may bother the user.
When the ceiling is under construction, the hole for check-up must be made to
take service, clean and repair the unit.
It is possible to install the unit at an height of between 2.2~2.5m from the ground,
if the unit has a duct with a well defined lenght (300mm or more), to avoid fan
motor blower contact.
The units must be installed according to distances declared, in order to permit accessibility from each side,
either to guarantee correct operation of maintenance or repairing products.
The unit’s parts must be reachable and removable completely under safety condition (for people or things).
CAUTION
Construction Standard for Inspection Hole
1) In case, the ceiling is tex tile, Inspection hole dose not need.
2) In case, the ceiling is plaster board, Inspection hole depends on
Inside height of the ceiling.
a. Height is more than 3.28ft(1m) : Only "B" [Inspection for PBA] is
applied.
b. Height is less than 3.28ft(1m) : Both "A"&"B" are applied.
c. "A"&"B" are inspection holes .
Unit Width(W)
"A"=W+100mm
Unit Depth(D)+50mm
"B"=500mm
Dimension and weight
Net
dimension
Indoor unit
EH035EAV1
mm
990x199x600
Net weight
Indoor Unit
EH035EAV1
kg
26
EH052EAV1
1100x199x600 EH052EAV1 31
EH070EAV1
1100x199x600 EH070EAV1 31
DH052EAS 900 x 260 x 480 DH052EAS 29
DH070EAS 900 x 260 x 480 DH070EAS 29
DH090EAS 1150 x 260 x 480 DH090EAS 34
DH105EAS 1150 x 260 x 480 DH105EAS 34
DH052EAV1
900 x 260 x 480 DH052EAV1 29
DH070EAV1
1150 x 260 x 480 DH070EAV1 34
DH090EAV
1150 x 260 x 480 DH090EAV 34
DH105EAV
1150 x 320 x 480 DH105EAV 39
DH140EAV
1200 x 360 x 650 DH140EAV 55
Outdoor unit
UH035EAV1 790x548x285
Outdoor unit
UH035EAV1 33
UH052EAS 880 x 638 x 310 UH052EAS 50
UH070EAS 880 x 638 x 310 UH070EAS 50
UH090EAS 880 x 950 x 320 UH090EAS 78
UH105EAS 932 x 1128 x 375 UH105EAS 90
UH052EAV1
880 x 638 x 310 UH052EAV1 50
UH070EAV1
880 x 798 x 310 UH070EAV1 57
UH090EAV
932 x 1128 x 375 UH090EAV 90
UH105EAV
932 x 1128 x 375 UH105EAV 90
UH140EAV
932 x 1128 x 375 UH140EAV 94
or more
or more
