Samsung ERV - Page 9

ENGLISH-9
02 INSTALLATION

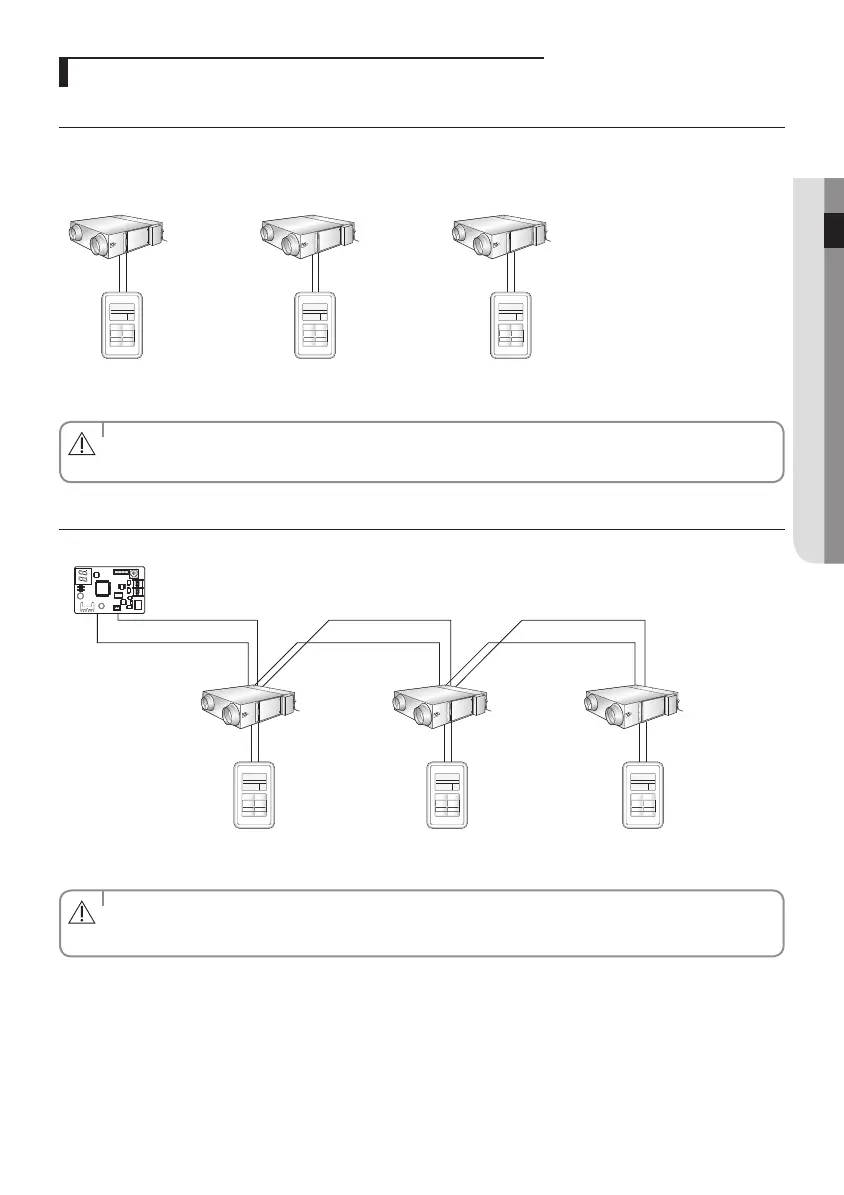

Individual control with your ERV wired remote controller
When a upper controller is not connected
Individual control means that you are using one ERV wired remote controller to control one ERV.
ERV
COM2(F3, F4) COM2(F3, F4) COM2(F3, F4)
ERV wired remote
controller
ERV wired remote
controller
ERV wired remote
controller
ERV ERV
• Regardless of the setting of group address (RMC address), only the ERV connected to COM2
communication wire is individually controlled.
Caution
When a upper controller is connected
CN4
CN3
RED
CN2
BLK
ERV interface module (MIM-N10)
ERV
COM1(F1, F2)
COM2(F3, F4)
COM1(F1, F2)
COM2(F3, F4) COM2(F3, F4)
ERV wired remote
controller
ERV wired remote
controller
ERV wired remote
controller
ERV ERV
• Regardless of the setting of group address (RMC address), only the ERV connected to COM2
communication wire is individually controlled.
Caution
