14. Tools for Disassembly and Assembly

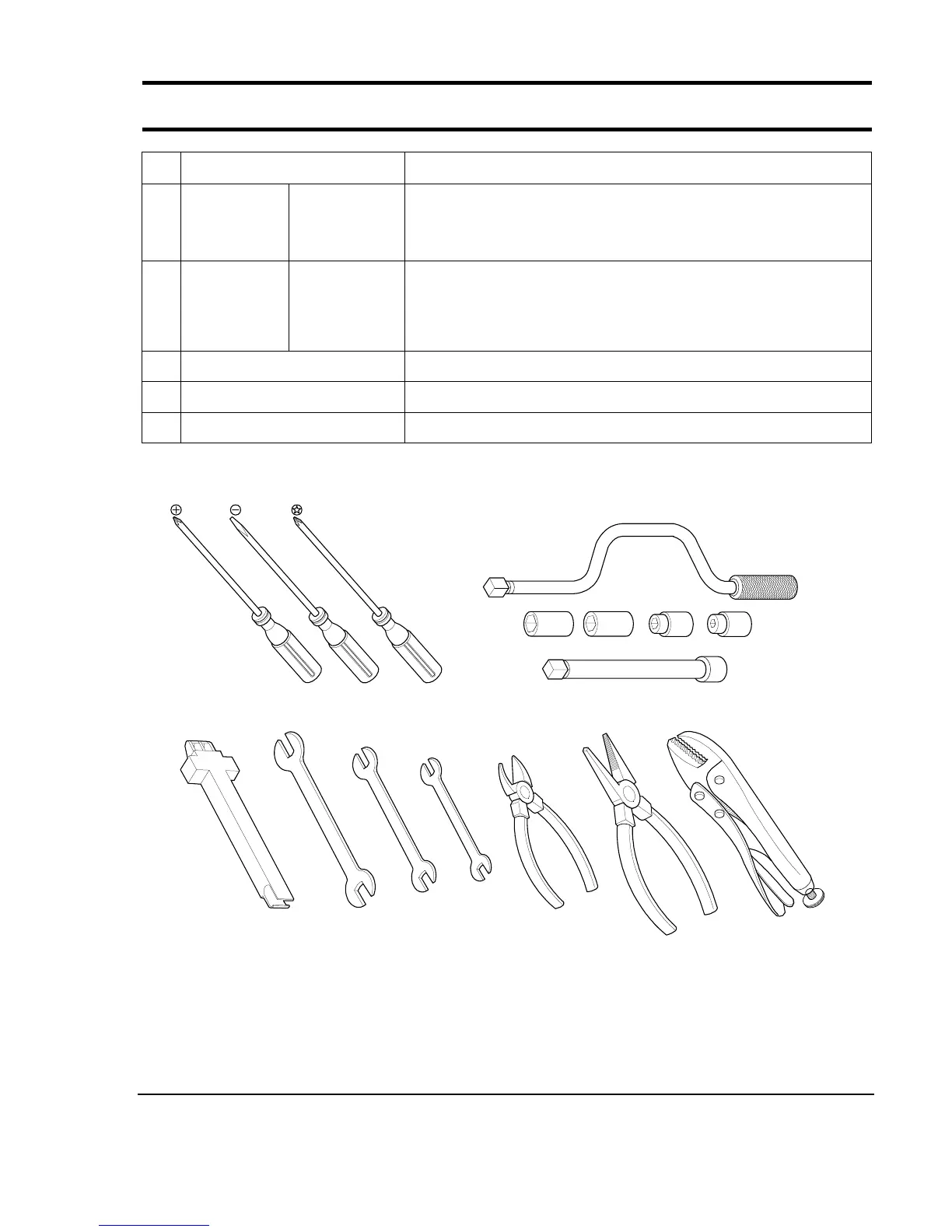

NO. TOOL
1
Box driver
10mm
13mm
17mm
19mm
Heater (1)
Motor (1), Balance (5)
2 holes of each left and right of the shock absorber
1 Pulley hole
2
Double-ended
spanner
10, 13 17,19mm
Replaceable for the box driver.
Since the bolt runs idle when the box driver is used, use the box
driver 17mm.
3
Vice pliers Tool to protect the idle and abrasion of the bolt for the box driver.
4
Other(Driver, Nipper, Long nose) General tools for the after service.
5
JIG for the Tub 1(DisassembleandAssemble)
