Samsung Generation 6 - Pipe Connections and Electrical Entry

Heat Pump Installation Guide
61
Reference Description Value
A
H.P Flow 28mm
B
H.P Return 28mm
C
Heating Return 28mm
D
Heating Flow Zone 1 22mm
E
Heating Flow Zone 2 22mm
F
Heating Flow Zone 3 22mm
G
Hot Outlet 22mm
H
Cold Inlet 22mm
All the pipework connections are o the top section of the casing. Upon lling and commissioning,
ensure all connections are completely watertight.

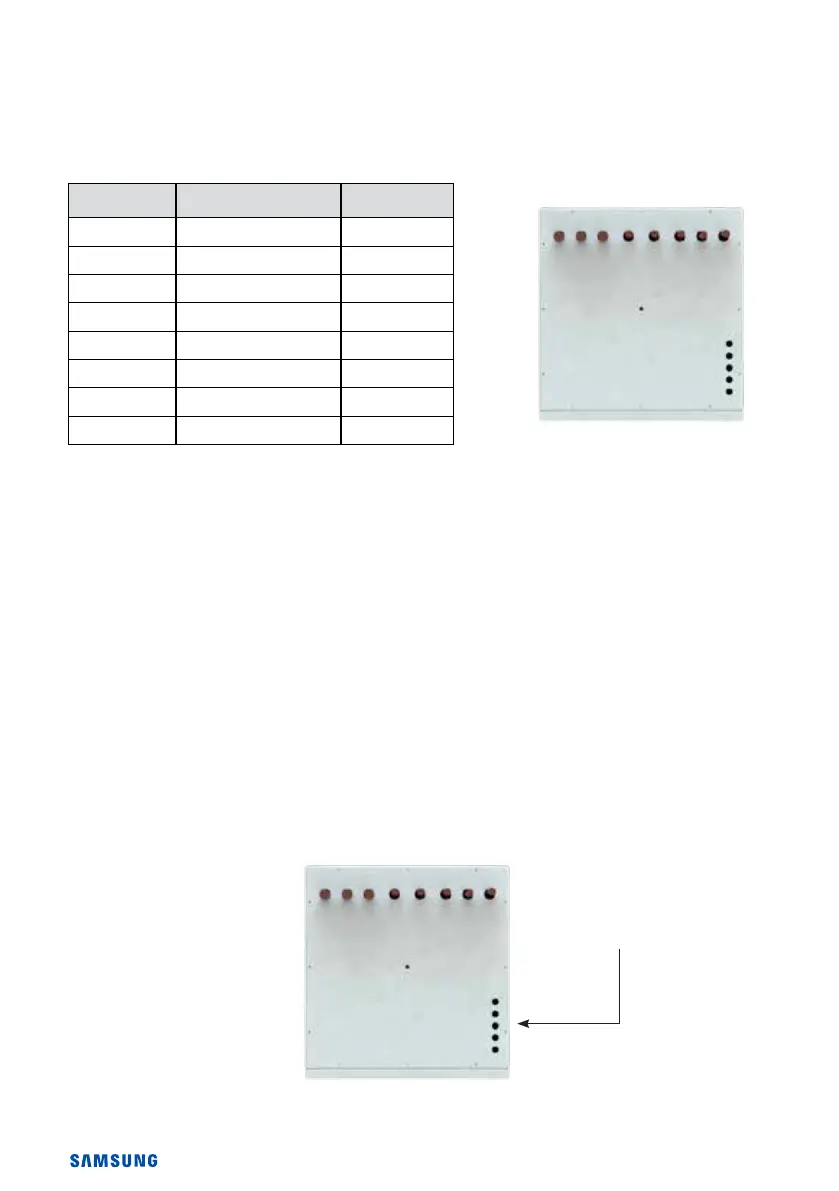

Pipe Connections
Smart Plumb Compact Installation
A lack of safety devices can lead to potentially fatal injuries, all necessary safety devices must be
installed correctly in the system. The hot and cold pipework are required to be correctly bonded and
connected to the earth line.
All electrical wiring must be carried out by a qualied electrician and be installed in accordance with
current I.E.E Wiring Regulations
Electrical Entry Point
Electrical entry point
A B C D E F G H
