2. Disassembly and Reassembly
2-1 Indoor Unit
Stop operation of the air conditioner and remove the power cord before repairing the unit.
No Parts Procedure Remark
1 Front Grille
_
Dust-Collecting
Filter

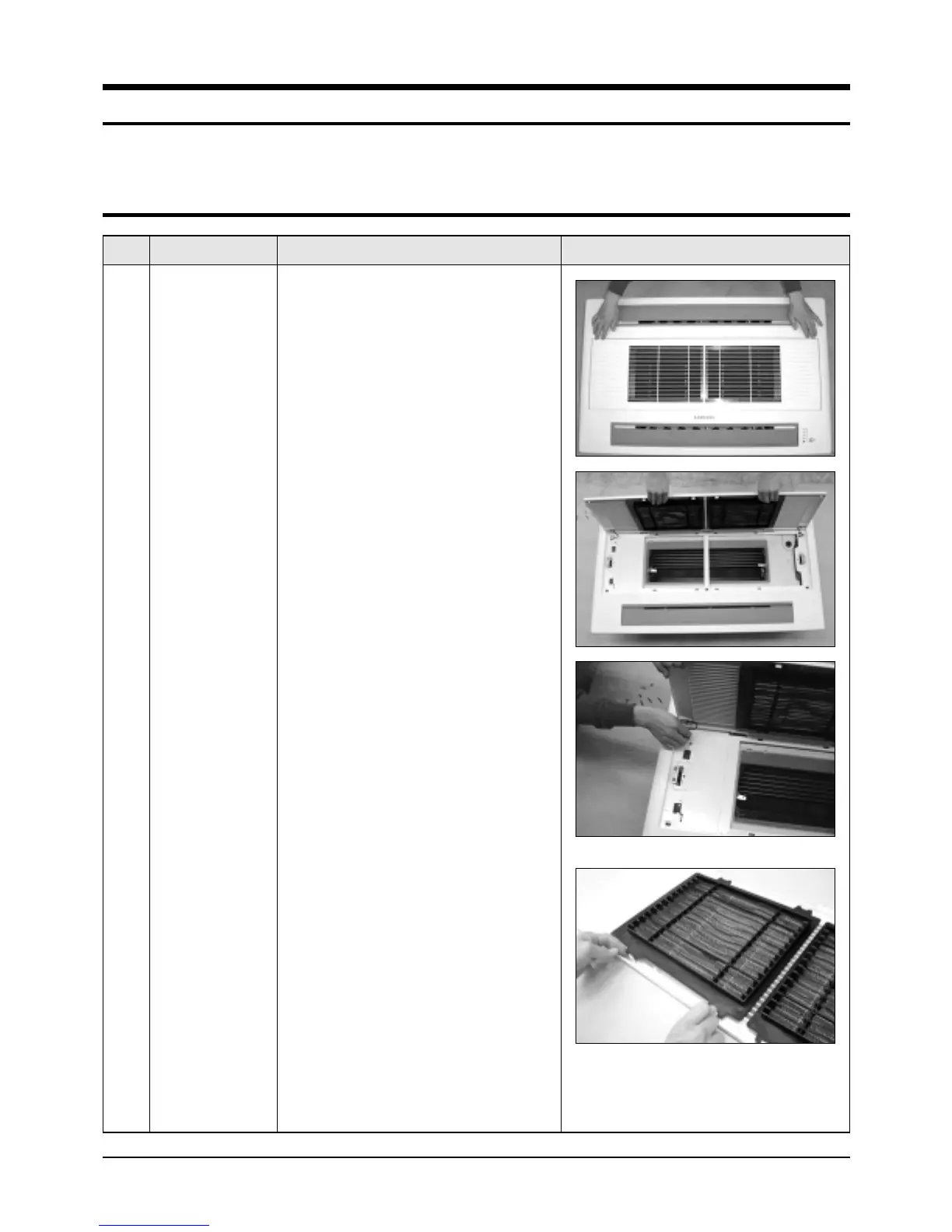

1) Press the "PUSH".
2) Front Grille Disassembly
(1) Open the Front Grille and pull it up to
the direction in the picture.
(2) Detach the Safe Ring.
3) Filter Disassembly
(1) Detach the Filter by disassembling the
Grille hook.
