Circuit Description
13-2 Samsung Electronics

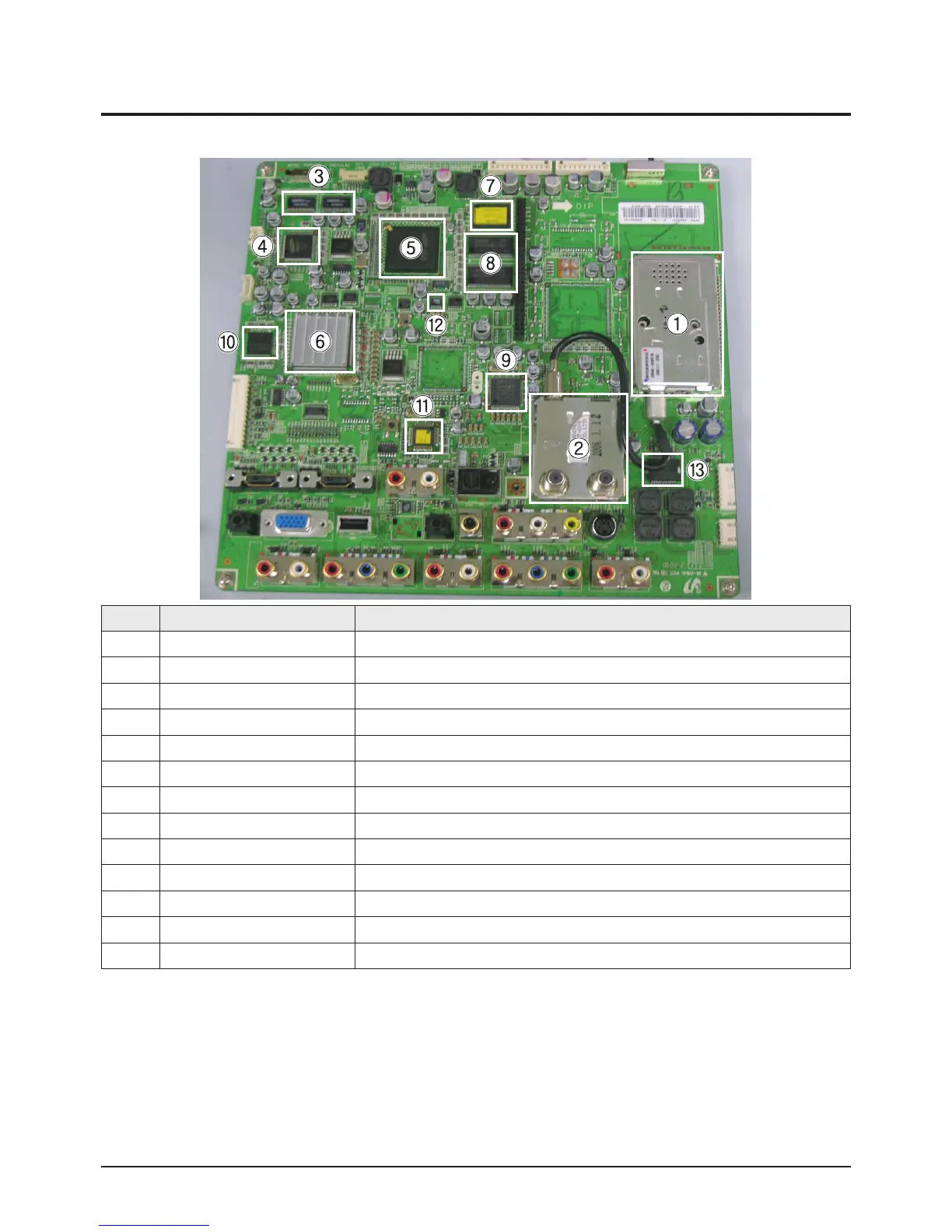

13-2 Partial Block Description
13-2-1 Main Board
No Loc. No. Description
①
TU301 (DNVS303HH261A) TUNER
②
X301 (UMX-NT-059) MODULE-SPLITTER
③
IC1502, IC1504 (DTC34LM85A) IC-TRANSMITTER (LVDS TRANSMITTER)
④
IC1503 (S4LD158X01) IC VIDEO PROCESSOR (DNIE-LBE)
⑤
IC2001 (S5H2111) IC-DECODER
⑥
IC1001 (SVP-PX56) IC VIDEO PROCESSOR
⑦
IC2032 (28F640) IC-FLASH MEMORY
⑧
IC2201, IC2202 (K4D551638F) IC-DRAM
⑨
IC202 (STV8258DSX) IC-AUDIO PROCESSOR
⑩
IC1003 (K4D263238) IC-VIDEO RAM
⑪
IC111 (S3F866B) IC-MICROCONTROLLER
⑫
IC505 (PCM1754) IC-D/A CONVERTER
⑬
IC211 (STA323W) IC-AUDIO AMP
To Next Page
