Samsung HT-DB650 - Page 13

•

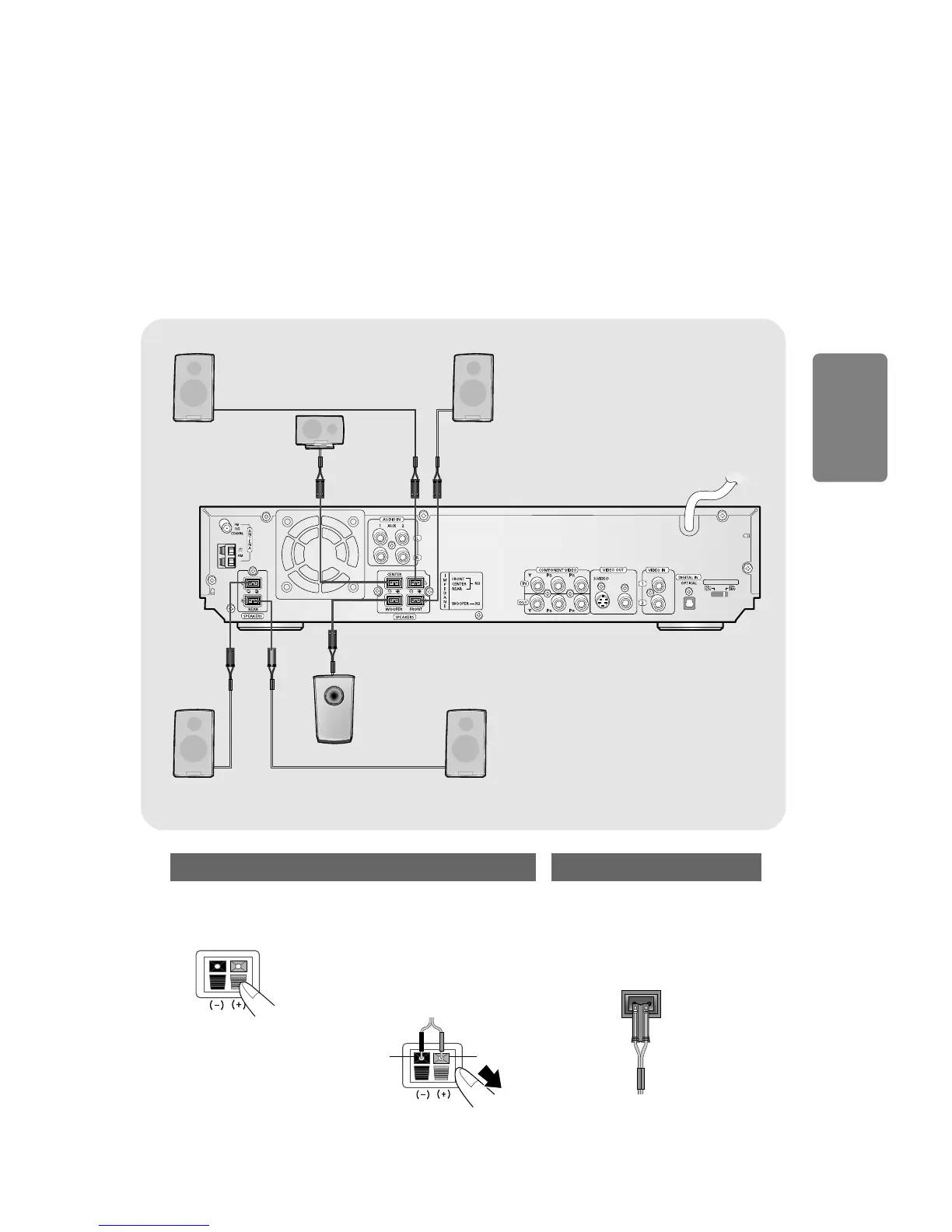

Make sure the colors of the speaker terminals
match the colors of the connecting jacks.
•
Make sure the polarities (+ and -) are correct.
•
Insert the black wire into the black
(–) terminal and the gray wire into
the gray (+) terminal.
•
Make sure the polarities (+ and –)
are correct.
Black
Press down the terminal
tab on the back of the
speaker.
1
Insert the wire into the
terminal and release the
terminal tab.
2
Connect the connecting jacks (6)
to the back of the DVD player.
3
Gray
12
Back of the Speakers Back of the Main Unit
CONNECTIONS
VOLTAGE SELECTOR
Rear Speaker (L)
Rear Speaker (R)
Subwoofer
Center Speaker
Front Speaker (L)
Front Speaker (R)
Blue
Gray
Purple
White
Red
Green
