Samsung HT-DB650 - Connecting an External Analog Component

16
CONNECTIONS
Press AUX on the remote control to select AUX 1
or AUX 2.
•
Each time the button is pressed, the selection changes as
follows: DIGITAL IN AUX 1 AUX 2.
•
You can also use the FUNCTION button on the main unit.
The mode switches as follows: DVD/CD ➝ DIGITAL IN ➝
AUX1 ➝ AUX2 ➝ FM ➝ AM.
•
If you have connected an external digital
component and Video In (1, 2) at the
same time, there will be video from AUX 1
even when you select DIGITAL IN.
•
If you have connected Audio In (L, R) to
1, connect Video In to 1 as well, and if
you have connected Audio In (L, R) to 2,
connect Video In to 2 also.
Connect Audio In on the DVD player to Audio
Out on the external analog component.
•
Be sure to match connector colors.
Connect Video Out on the DVD player to Video
In on the TV.
1
Connect Video In on the DVD player to Video
Out on the external analog component.
2
3
4
VIDEO OUT
VIDEO IN
L
R
VOLTAGE SELECTOR
Example: Analog signal components such as a VCR, Camcorder, and TV.

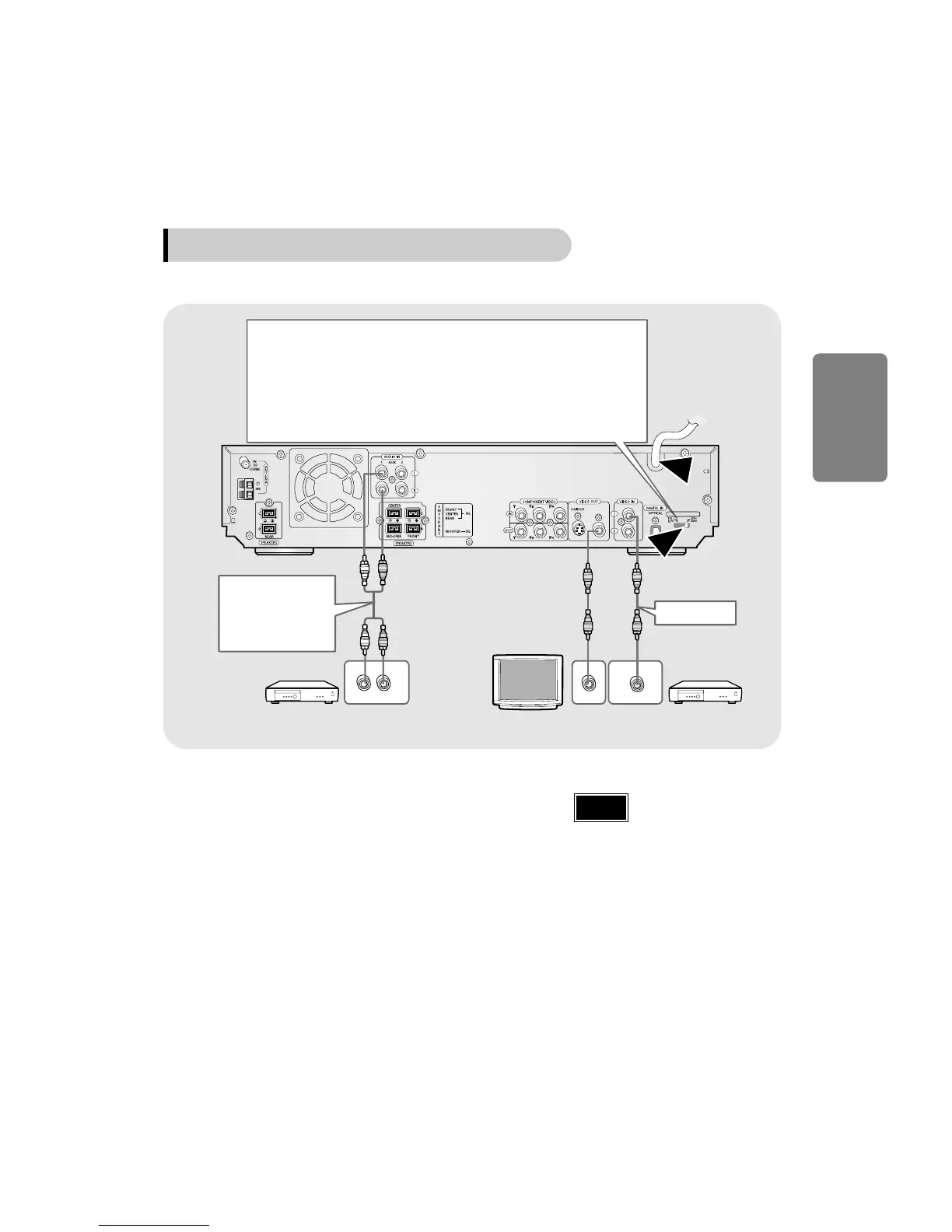

Connecting an External Analog Component
Video Cable
Audio Cable
If the external
analog component
has only one Audio
Out, connect either
left or right.
Note
The AC Cord must be plugged into an appropriate socket.
Before plugging your system into an AC outlet, you must check the voltage.
Check the position of the voltage selector on the rear of the system (OPTIONAL).
1. Plug the AC Cord on the rear of the system into an appropriate outlet.
2. Press the On/Standby button to switch your DVD Player system on.
