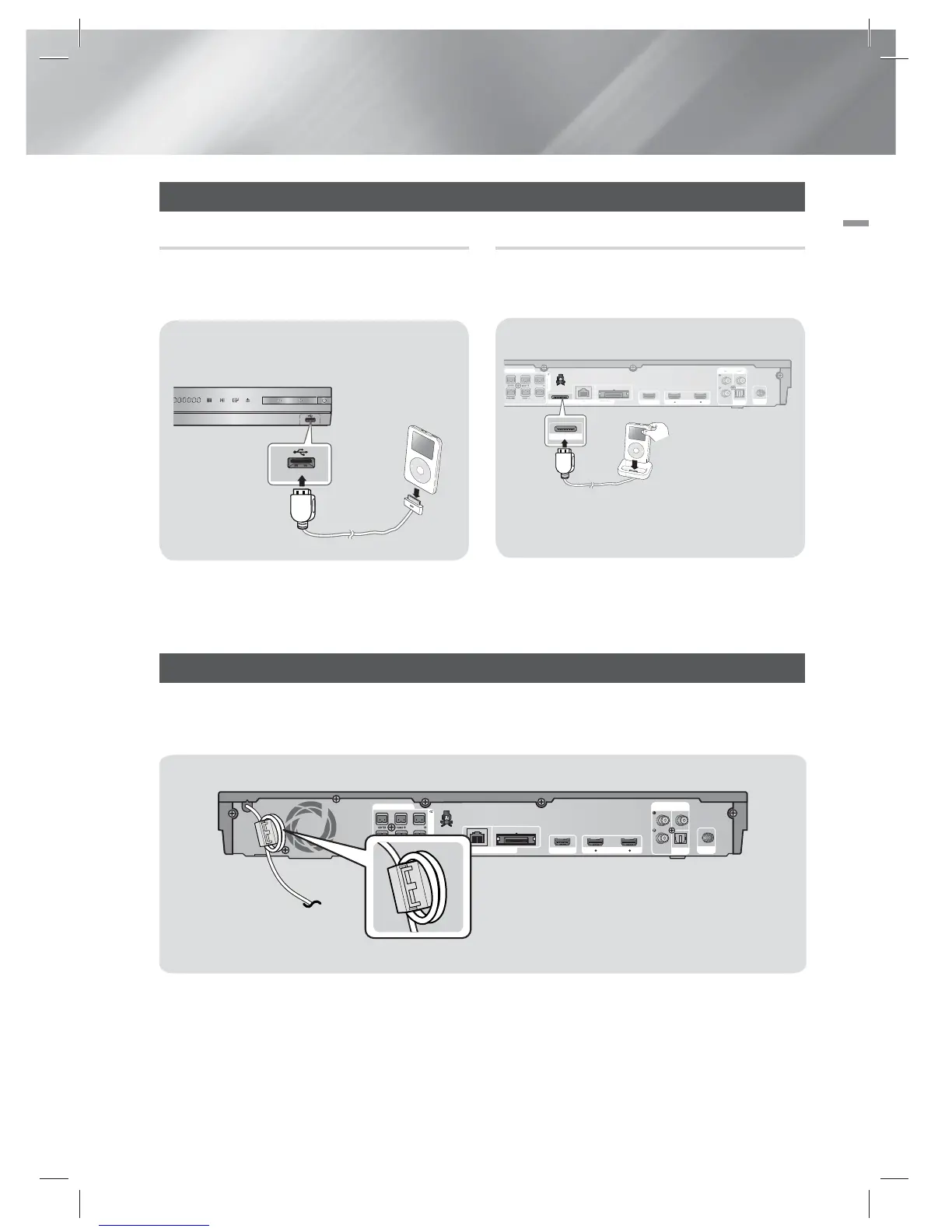

Connecting to an iPod/iPhone
Using a USB Cable
Connect an iPod/iPhone using the USB cable to
the front USB port.
5V 500mA
5V 500mA
Using a Dock
Composite cable must be connected to play a
video.
LANiPod WIRELESS
IMPEDANCE : 3
SPEAKERS OUT
SURROUND
SURROUND
OPTICAL
VIDEO
OUT
AUX
IN
DIGITAL
AUDIO IN
FM ANT
HDMI IN
1
2
HDMI OUT
LAN
W
IRELES
S
IMPEDANCE :
3
SPEAKERS OU
T
SURROUN
D
SURROUN
D
OPTICAL
V
IDEO
OUT
OU
AU
X
I
N
D
IGITAL
AUDIO IN
N
N
FM AN
T
HDMI I
N
1
2
H
DMI OU
T
iPod
| NOTE |

Make sure to connect the dock connector so that the label “

” faces upward.
Attaching the Toroidal Ferrite Core to the Power Cord of the Main Unit
If you attach a Toroidal ferrite core to the power cord of the man unit, it will help to prevent RF
interference from radio signals.
LANiPod WIRELESS
IMPEDANCE : 3
SPEAKERS OUT
SURROUND
SURROUND
OPTICAL
VIDEO
OUT
AUX
IN
DIGITAL
AUDIO IN
FM ANT
HDMI IN
1
2
HDMI OUT
1. Pull the fixing tab of the Toroidal ferrite core to open it.
2. Make a loop twice in the main unit power cord.
3.
Attach the Toroidal ferrite core to the main unit power cord as the figure shows and press it until it clicks.
