Connections
Speaker Components

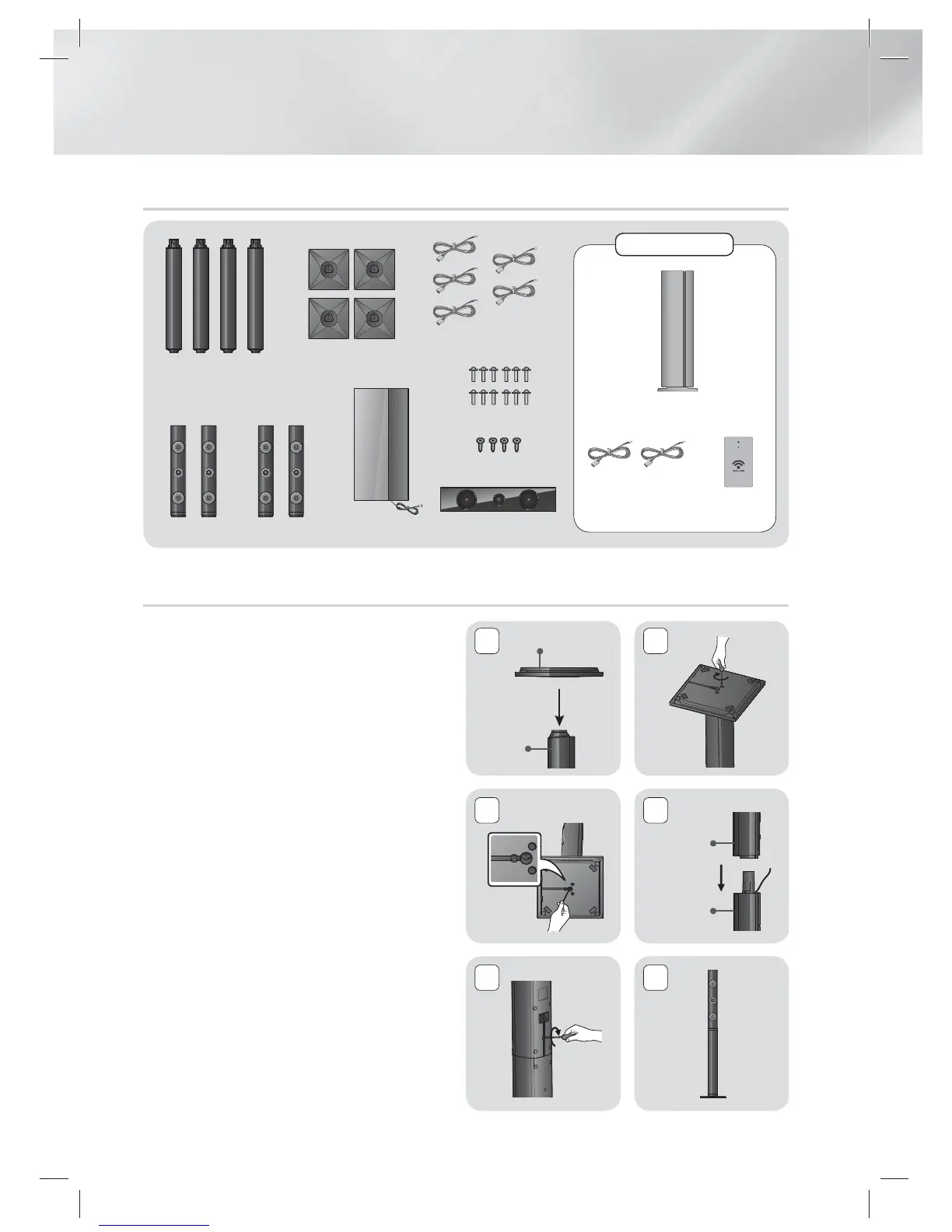

Installing the Speakers on the Tallboy Stand
1. Turn the Stand Base upside-down and
connect it to the Stand.
2. Use the driver to combine the screws (5x20)
on the 3 marked holes.
3. Straighten a supplied speaker wire and put in
the hole on the centre of Stand Base.
4. Connect the upper Speaker to the assembled
Stand.
5. Insert a screw (5x15) clockwise into the
hole on the rear of the speaker using a
screwdriver.
And then connect a speaker cable.
6. This is the appearance after the speaker is
installed.
Follow this steps to install other speaker.
5
2
4
6
1
3
Stand Base
Stand
Speaker
Stand
SPEAKER CABLE
STAND
STAND BASE
FRONT
(L) (R)
SURROUND
(L) (R)
CENTRE
SCREW (5
X15): 4EA
SCREW (5
X20): 12EA
SUBWOOFER
SWA-5000
Wireless Receiver Module
TX Card
Speaker
Cable (2EA)
