CONNECTIONS
Press AUX on the remote control to select AUX 1
or AUX 2 input.
•
Each time the button is pressed, the selection changes as
follows: DIGITAL IN ➝ AUX 1 ➝ AUX 2.
•
You can also use the FUNCTION button on the main unit.
The mode switches as follows: DVD/CD ➝ DIGITAL IN
➝ AUX 1 ➝ AUX 2 ➝ FM ➝ AM.
• If you have connected an external digital
component and also an Analog
component to Video In (1, 2) at the same
time, there will be video from AUX 1 even
when you select DIGITAL IN.
• If you have connected Audio In (L, R) to
1, connect Video In to 1 as well, and if
you have connected Audio In (L, R) to 2,
connect Video In to 2 also.
• When you select Aux 1 or 2, you are
selecting Video 1 or 2 inputs respectively.
Connect Audio In on the Home Theater to Audio
Out on the external analog component.
• Be sure to match connector colors.
Connect Video Out on the Home Theater to
Video In on the TV.
1
Connect Video In on the Home Theater player to
Video Out on the external analog component.
2
3
4
Analog signal components such as a VCR or TV.

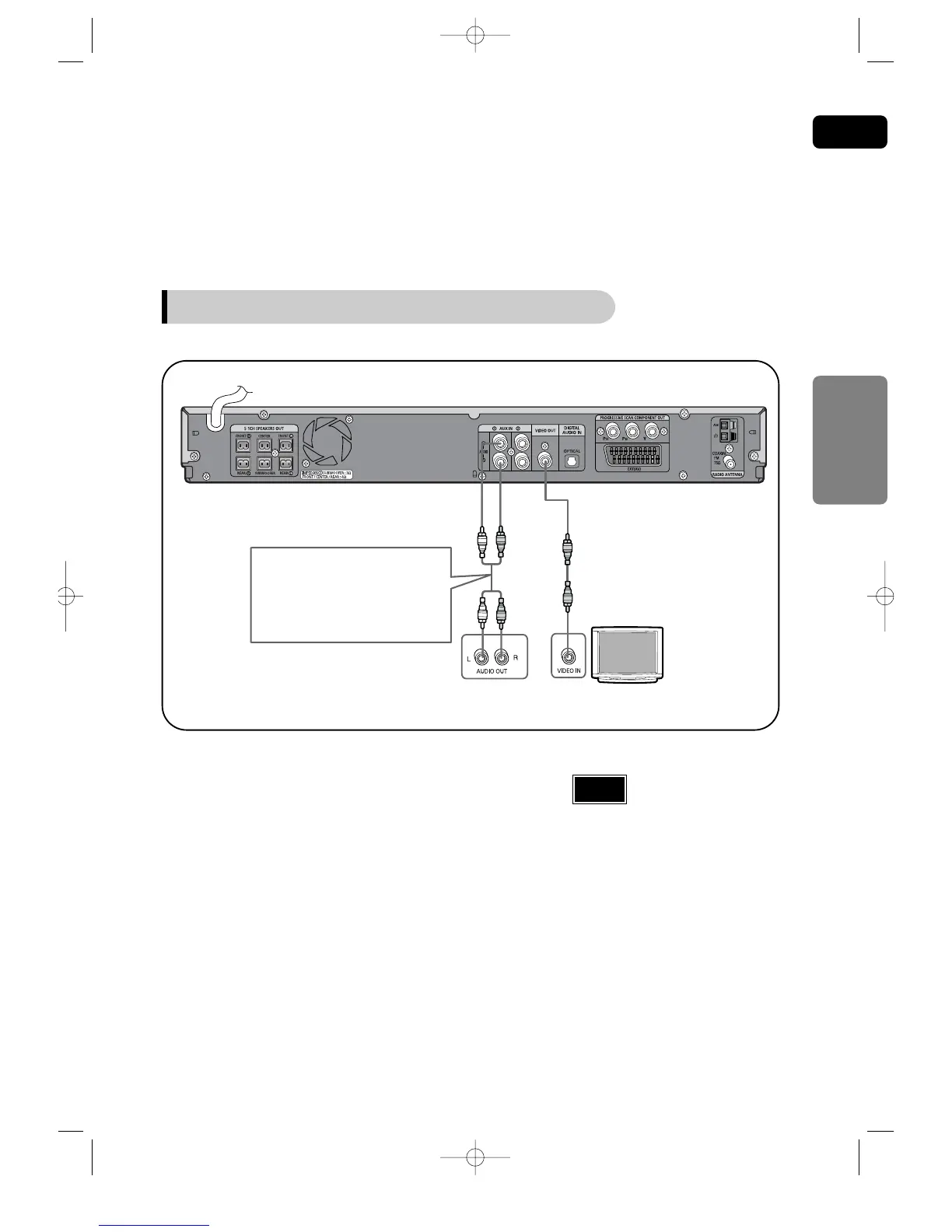

Connecting an External Analog Component
Audio Cable
(not supplied)
If the external analog component
has only one Audio Out, connect
either left or right.
