GB
9
Rear Panel
Accessories
Video Cable
Remote Control
FM Antenna
User's Manual
PREPARATION
8

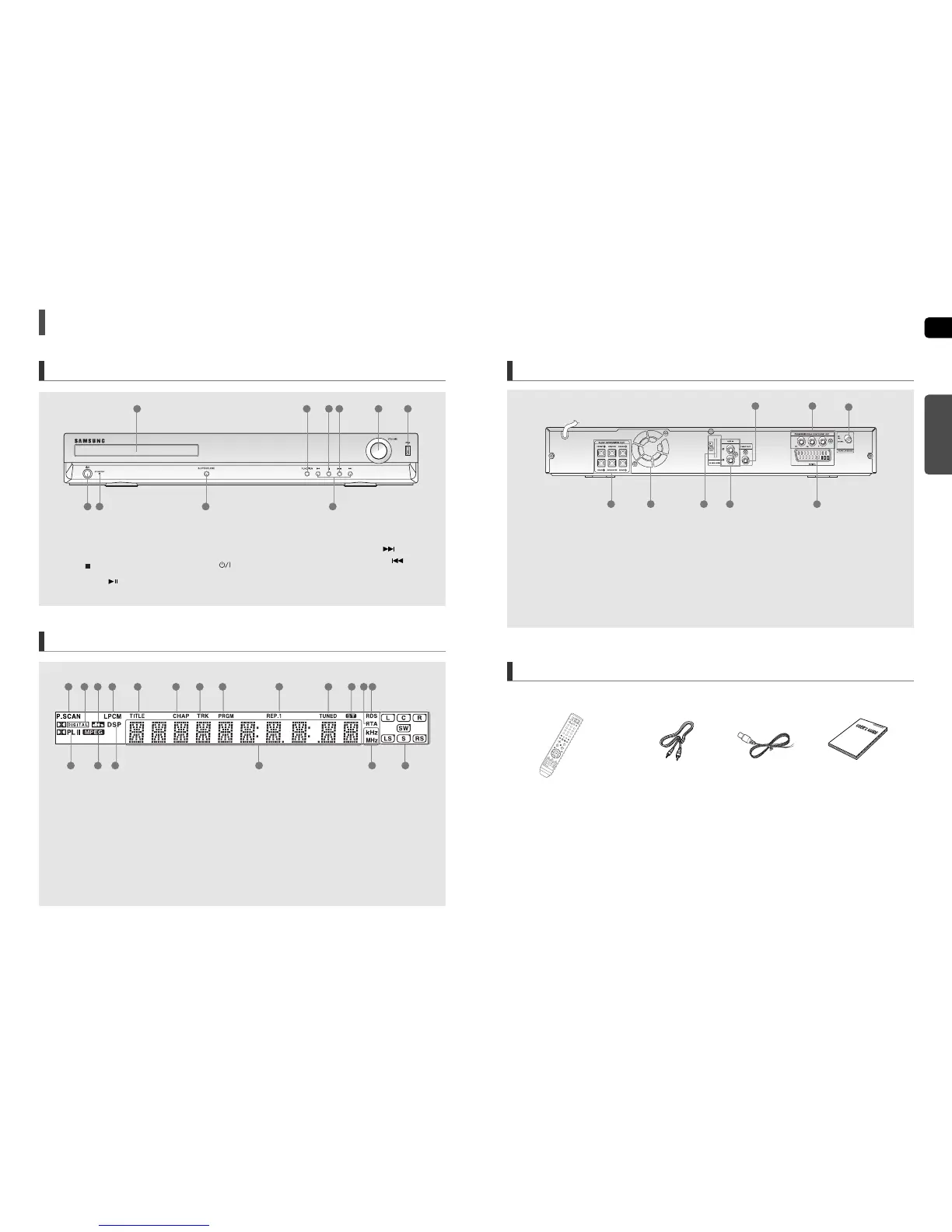

Description
Front Panel
Display
1. P.SCAN indicator
2. DOLBY DIGITAL indicator
3. DTS Disc indicator
4. LINEAR PCM indicator
5. TITLE indicator
6. CHAPTER indicator
7. TRACK indicator
8. PROGRAM indicator
9. REPEAT indicator
10. TUNER indicator
11. STEREO indicator
12. RTA indicator
13. RDS indicator
14. PRO LOGIC indicator
15. MPEG indicator
16. DSP indicator
17. System Status Display
18. RADIO FREQUENCY indicator
19. SPEAKER indicator
7
8
9 10 11 12 135 62 31 4
18 1915 16 1714
1. Disc Tray
2. Function button
3. Stop ( ) button
4. Play/Pause ( ) button
5. Volume Control
6. USB Connector
7. Power ( ) button
8. Standby indicator
9. Open/Close button
10.Tuning Up & Skip ( ) button
Tuning Down & Skip ( ) button
1
7 8
3 4
9
10
2 5 6
1. Video Output Jack
Connect the TV's Video Input jack (VIDEO IN) to
the VIDEO OUT jack.
2. Component Video Output Jacks
Connect a TV with component video inputs to these jacks.
3. FM 75Ω COAXIAL Jack
4. 5.1 Channel Speaker Output Connectors
5. Cooling Fan
6. TX Card Connection (WIRELESS)
7. AUX IN Jacks
8. SCART Jack
Connect to a TV with scart input jack.
54
1
6 7 8
3
2
