CONNECTIONS
21

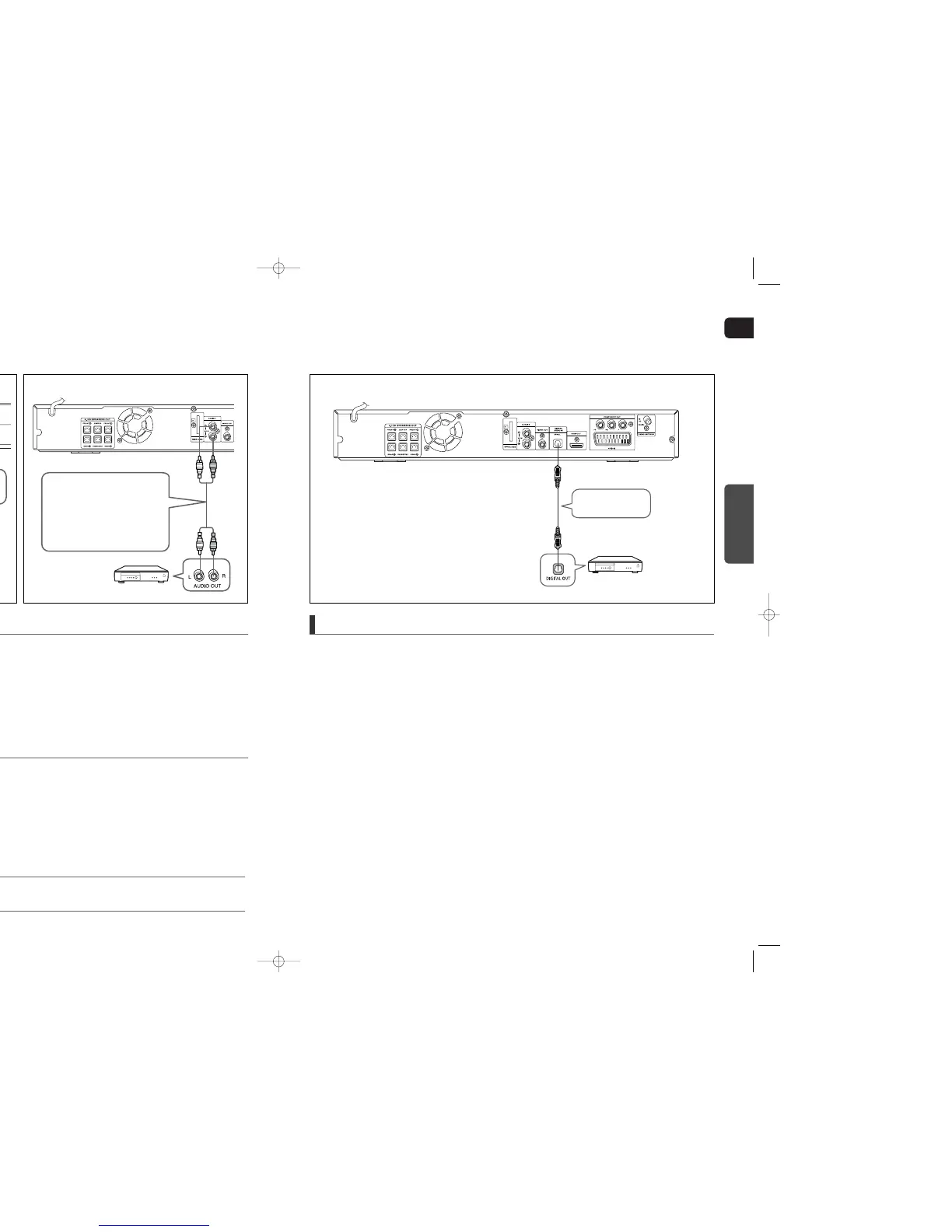

OPTICAL : Connecting an External Digital Component
Digital signal components such as a Cable Box/Satellite receiver (Set-Top Box).
1 Connect the Digital Input (OPTICAL) on the Home Theater to the Digital Output of the external digital com-
ponent.
2 Press the AUX button on the remote control to select <DIGITAL IN>.
■
You can also use the FUNCTION button on the main unit.
The mode switches as follows : DVD/CD ➝ DIGITAL IN ➝ AUX 1 ➝ AUX 2 ➝ USB ➝ FM.
OPTICAL : Rear Panel
Optical Cable
(not supplied)
20
AUX2 : Connecting an External Analog Component
Analog signal components such as a VCR.
AUX1 : Connecting an External Analog Component
Analog signal components such as an MP3 Player.
1 Connect AUX IN 2 (Audio) on the Home Theater to the Audio Out of the external analog component.
■
Be sure to match connector colors.
2 Press the AUX button on the remote control to select <AUX2> input.
■
You can also use the FUNCTION button on the main unit.
The mode switches as follows : DVD/CD ➝ DIGITAL IN ➝ AUX 1 ➝ AUX 2 ➝ USB ➝ FM.
1 Connect AUX IN 1 (Audio) on the Home Theater to the Audio Out of the external analog component.
2 Press the AUX button on the remote control to select <AUX1> input.
■
You can also use the FUNCTION button on the main unit.
The mode switches as follows : DVD/CD ➝ DIGITAL IN ➝ AUX 1 ➝ AUX 2 ➝ USB ➝ FM.
Connecting Audio from External Components
Audio Cable
(not supplied)
If the external analog compo-
nent has only one Audio Out,
connect either left or right.
• You can connect the Video Output jack of your VCR to the TV, and connect the Audio Output jacks of the VCR
to this product.
AUX1 : Front Panel AUX2 : Rear Panel
Audio Cable
(not supplied)
