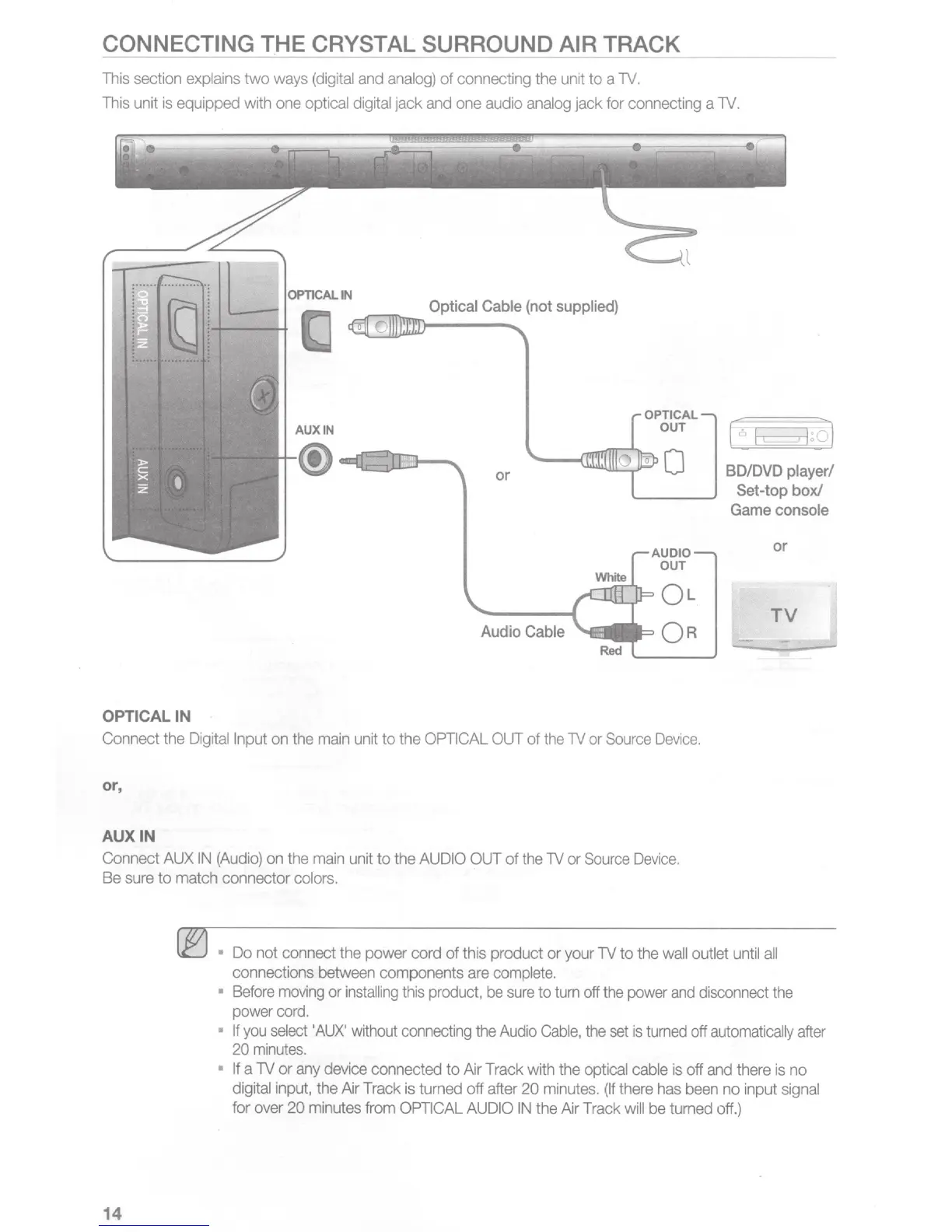

CONNECTING THE CRYSTAL SURROUND AIR TRACK
This section explains two ways (digital and analog) of connecting the unit to a TV.
This unit is equipped with one optical digital jack and one audio analog jack for connecting a TV.
[j
Optical Cable (not supplied)
~~7~]
"
0
BD/DVD player/
or
Set-top box/
Game console
or
QL
TV
j
Audio Cable
QR
..._
OPTICAL IN
Connect the Digital Input on the main unit to the OPTICAL OUT of the TV or Source Device.
or,
AUXIN
Connect AUX IN (Audio) on the main unit to the AUDIO OUT of the TV or Source Device.
Be sure to match connector colors.
14
• Do not connect the power cord of this product or your TV to the wall outlet until all
connections between components are complete.
• Before moving or installing this product, be sure to tum off the power and disconnect the
power cord.
• If you select 'AUX' without connecting the Audio Cable, the set is turned off automatically after
20 minutes.
• If a TV or any device connected to Air Track with the optical cable is off and there is no
digital input, the Air Track is turned off after 20 minutes. (If there has been no input signal
for over 20 minutes from OPTICAL AUDIO IN the Air Track will be turned off.)
