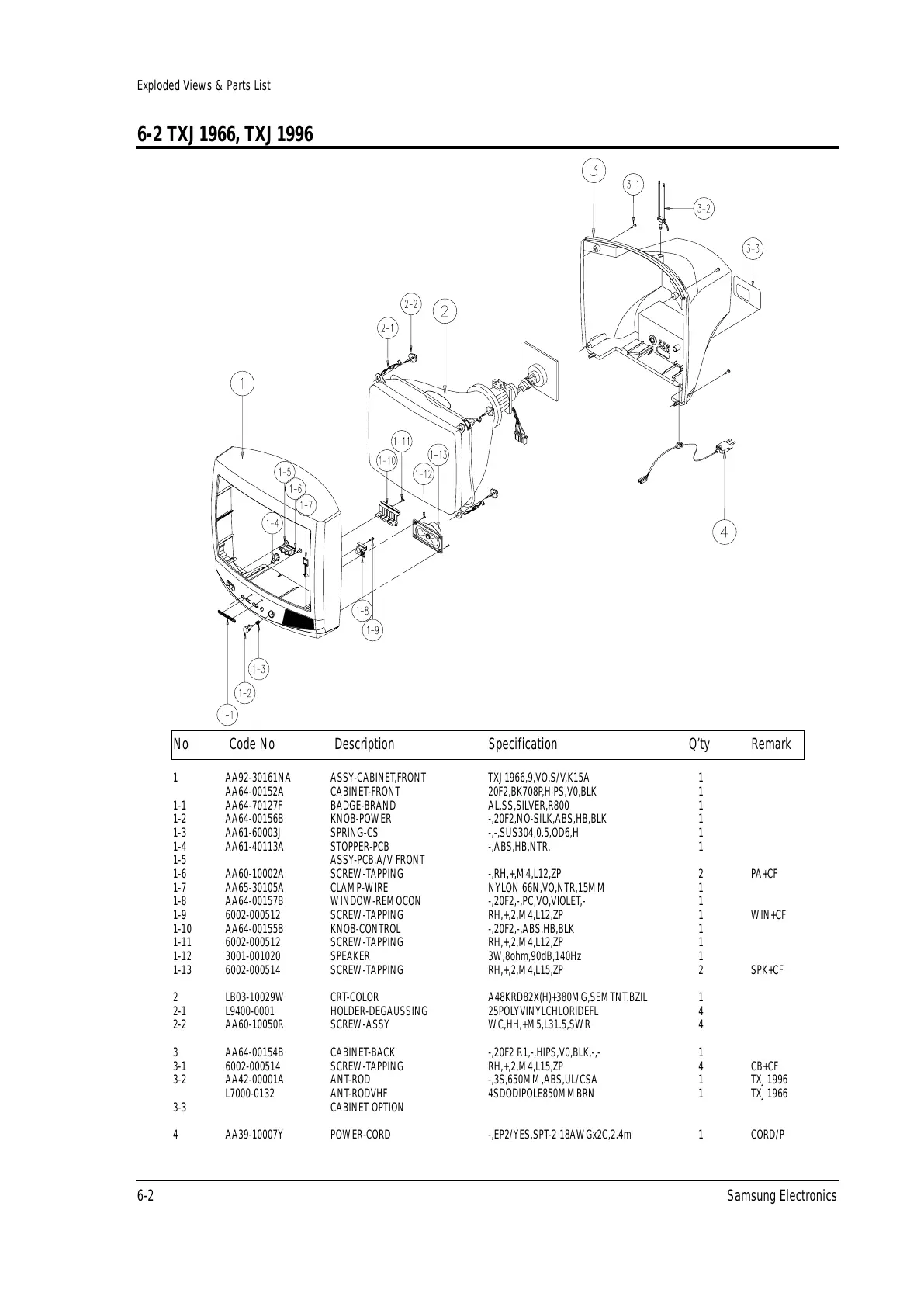

Exploded Views & Parts List
6-2 Samsung Electronics
No Code No Description Specification Q’ty Remark
1 AA92-30161NA ASSY-CABINET,FRONT TXJ1966,9,VO,S/V,K15A 1
AA64-00152A CABINET-FRONT 20F2,BK708P,HIPS,V0,BLK 1
1-1 AA64-70127F BADGE-BRAND AL,SS,SILVER,R800 1
1-2 AA64-00156B KNOB-POWER -,20F2,NO-SILK,ABS,HB,BLK 1
1-3 AA61-60003J SPRING-CS -,-,SUS304,0.5,OD6,H 1
1-4 AA61-40113A STOPPER-PCB -,ABS,HB,NTR. 1
1-5 ASSY-PCB,A/V FRONT
1-6 AA60-10002A SCREW-TAPPING -,RH,+,M4,L12,ZP 2 PA+CF
1-7 AA65-30105A CLAMP-WIRE NYLON 66N,VO,NTR,15MM 1
1-8 AA64-00157B WINDOW-REMOCON -,20F2,-,PC,VO,VIOLET,- 1
1-9 6002-000512 SCREW-TAPPING RH,+,2,M4,L12,ZP 1 WIN+CF
1-10 AA64-00155B KNOB-CONTROL -,20F2,-,ABS,HB,BLK 1
1-11 6002-000512 SCREW-TAPPING RH,+,2,M4,L12,ZP 1
1-12 3001-001020 SPEAKER 3W,8ohm,90dB,140Hz 1
1-13 6002-000514 SCREW-TAPPING RH,+,2,M4,L15,ZP 2 SPK+CF
2 LB03-10029W CRT-COLOR A48KRD82X(H)+380MG,SEMTNT.BZIL 1
2-1 L9400-0001 HOLDER-DEGAUSSING 25POLYVINYLCHLORIDEFL 4
2-2 AA60-10050R SCREW-ASSY WC,HH,+M5,L31.5,SWR 4
3 AA64-00154B CABINET-BACK -,20F2 R1,-,HIPS,V0,BLK,-,- 1
3-1 6002-000514 SCREW-TAPPING RH,+,2,M4,L15,ZP 4 CB+CF
3-2 AA42-00001A ANT-ROD -,3S,650MM,ABS,UL/CSA 1 TXJ1996
L7000-0132 ANT-RODVHF 4SDODIPOLE850MMBRN 1 TXJ1966
3-3 CABINET OPTION
4 AA39-10007Y POWER-CORD -,EP2/YES,SPT-2 18AWGx2C,2.4m 1 CORD/P
6-2 TXJ1966, TXJ1996
