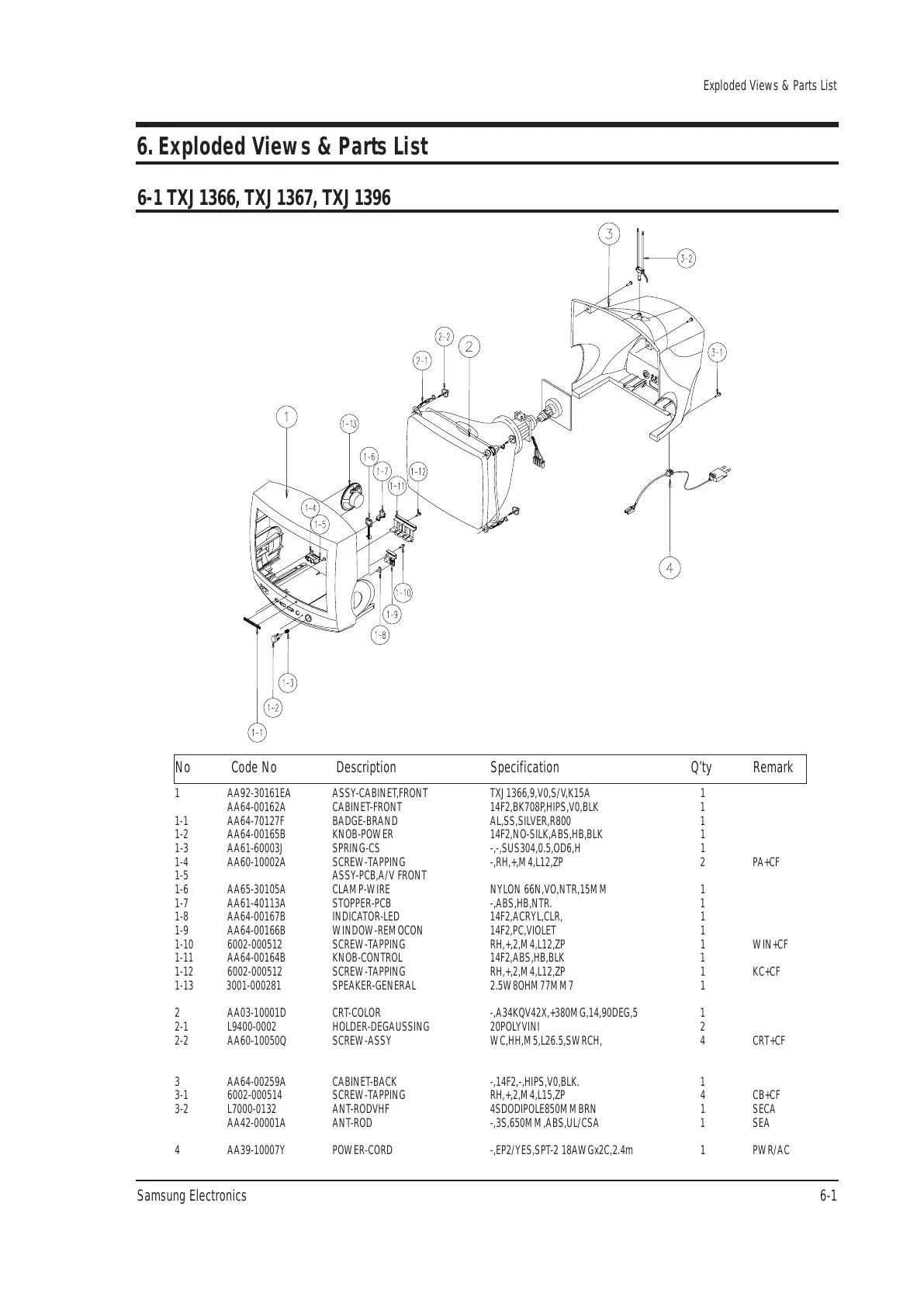

Exploded Views & Parts List
Samsung Electronics 6-1
6. Exploded Views & Parts List
No Code No Description Specification Q’ty Remark
1 AA92-30161EA ASSY-CABINET,FRONT TXJ1366,9,V0,S/V,K15A 1
AA64-00162A CABINET-FRONT 14F2,BK708P,HIPS,V0,BLK 1
1-1 AA64-70127F BADGE-BRAND AL,SS,SILVER,R800 1
1-2 AA64-00165B KNOB-POWER 14F2,NO-SILK,ABS,HB,BLK 1
1-3 AA61-60003J SPRING-CS -,-,SUS304,0.5,OD6,H 1
1-4 AA60-10002A SCREW-TAPPING -,RH,+,M4,L12,ZP 2 PA+CF
1-5 ASSY-PCB,A/V FRONT
1-6 AA65-30105A CLAMP-WIRE NYLON 66N,VO,NTR,15MM 1
1-7 AA61-40113A STOPPER-PCB -,ABS,HB,NTR. 1
1-8 AA64-00167B INDICATOR-LED 14F2,ACRYL,CLR, 1
1-9 AA64-00166B WINDOW-REMOCON 14F2,PC,VIOLET 1
1-10 6002-000512 SCREW-TAPPING RH,+,2,M4,L12,ZP 1 WIN+CF
1-11 AA64-00164B KNOB-CONTROL 14F2,ABS,HB,BLK 1
1-12 6002-000512 SCREW-TAPPING RH,+,2,M4,L12,ZP 1 KC+CF
1-13 3001-000281 SPEAKER-GENERAL 2.5W8OHM77MM7 1
2 AA03-10001D CRT-COLOR -,A34KQV42X,+380MG,14,90DEG,5 1
2-1 L9400-0002 HOLDER-DEGAUSSING 20POLYVINI 2
2-2 AA60-10050Q SCREW-ASSY WC,HH,M5,L26.5,SWRCH, 4 CRT+CF
3 AA64-00259A CABINET-BACK -,14F2,-,HIPS,V0,BLK. 1
3-1 6002-000514 SCREW-TAPPING RH,+,2,M4,L15,ZP 4 CB+CF
3-2 L7000-0132 ANT-RODVHF 4SDODIPOLE850MMBRN 1 SECA
AA42-00001A ANT-ROD -,3S,650MM,ABS,UL/CSA 1 SEA
4 AA39-10007Y POWER-CORD -,EP2/YES,SPT-2 18AWGx2C,2.4m 1 PWR/AC
6-1 TXJ1366, TXJ1367, TXJ1396
