Connecting to an AV devices
¦ Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite
receiver, VCR, Digital Audio System, Amplifier, DVD Home Theatre, PC
Using an HDMI or HDMI/DVI cable (up to 1080p)
✎ HDMI IN(DVI)
x
If an HDMI to DVI cable is connected to the HDMI IN(DVI) port, the audio does not work.
x
The picture may not display normally (if at all) or the audio may not work if an external device that uses an older
version of HDMI mode is connected to the TV. If such a problem occurs, ask the manufacturer of the external
device about the HDMI version and, if out of date, request an upgrade.
x
Be sure to purchase a certified HDMI cable. Otherwise, the picture may not display or a connection error may
occur.
x
A basic high-speed HDMI cable or one with ethernet is recommended. This product does not support the
ethernet function via HDMI.

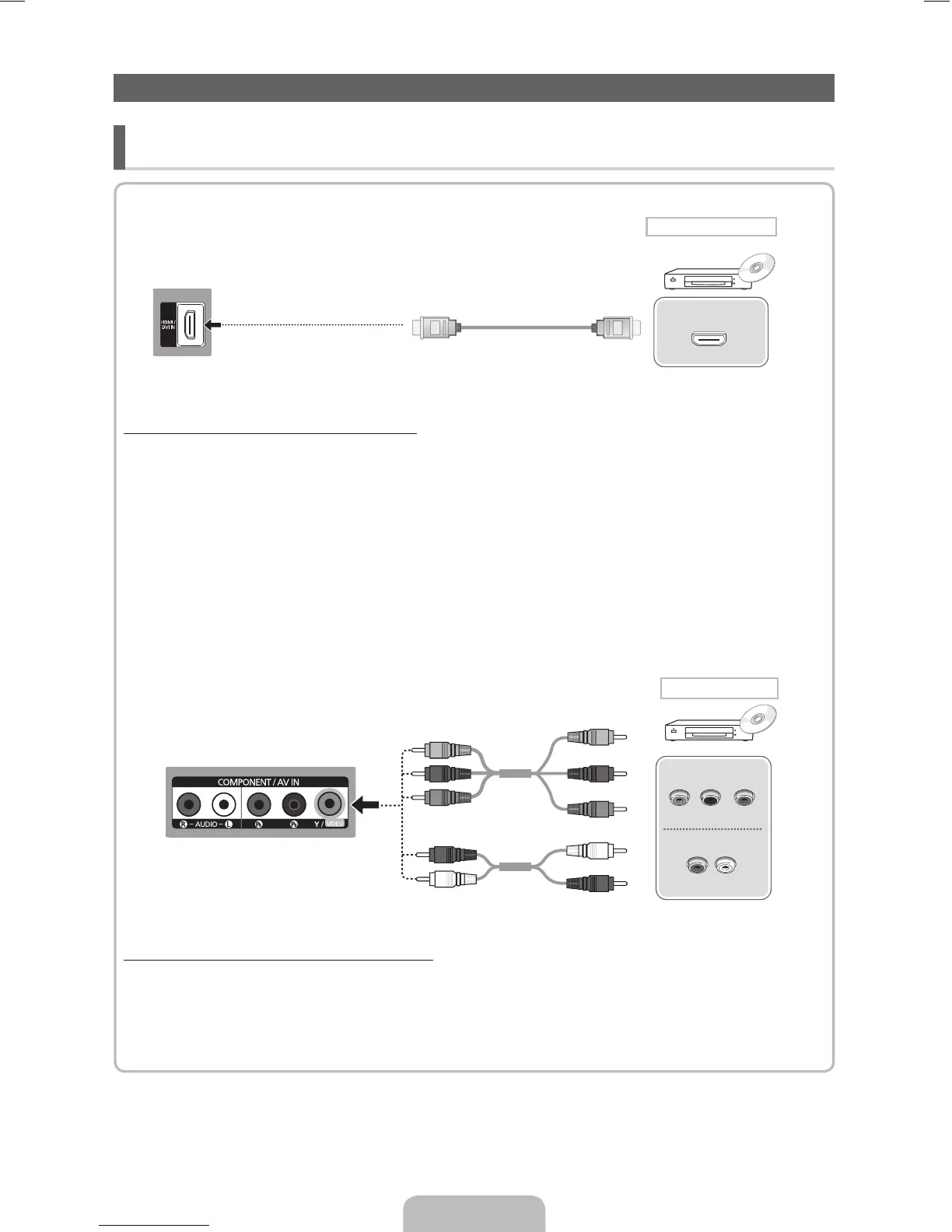

HDMI OUT
HDMI connection
TV Rear
W
W
R
R
G
R
G
R
B
B
AUDIO OUT
R-AUDIO-L
PR PB Y
COMPONENT OUT
Component connection
Using a Component (up to 1080p) Video (480i only)
✎ When connecting to AV IN the colour of the AV IN [Y/VIDEO] jack (Green) does not match the colour of the video
cable (Yellow).
✎ To obtain the best picture quality, the Component connection is recommended over the A/V connection.
TV Rear
* The image may differ depending on the model.
* The image may differ depending on the model.
