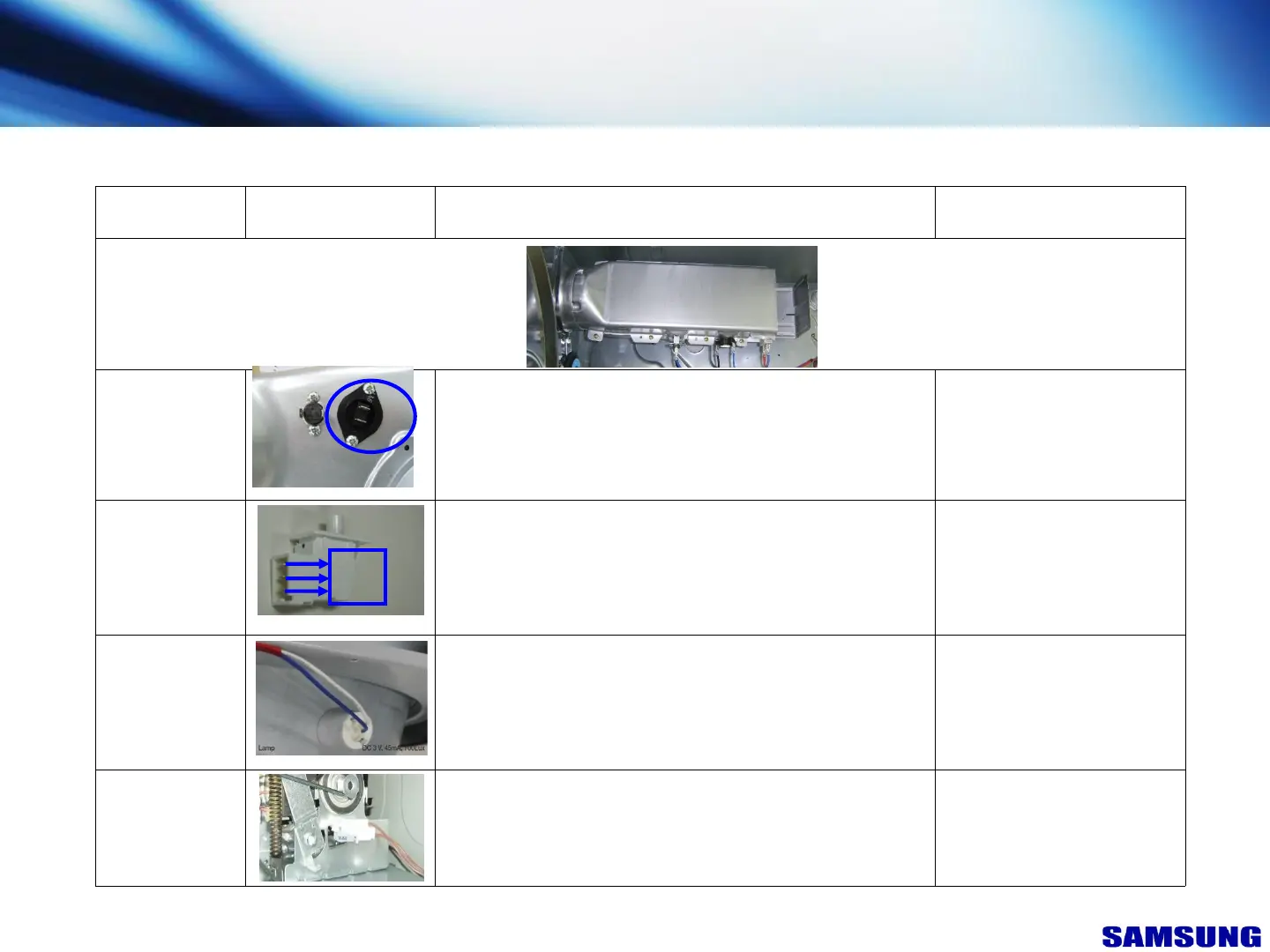

Component Check
Parts Image Description Value
Thermistor
Unplug connector and test from wire insertion side.
Pin #2 and Pin #6 of CN6
10 KΩ @ 77° F/25°C
Door Switch
Unplug connectors and test switch terminals.
Door open terminals COM to NC
Door open terminals COM to NO
Door closed terminals COM to NC
Door closed terminals COM to NO
Infinity
Less than 1 Ω
Infinity
Less than 1 Ω
Lamp
Unplug connectors and test switch terminals.
Check across terminals Infinity Ω
Belt Switch
Unplug connectors and test switch terminals.
Check across terminals switch closed
Check across terminals switch open
Less than 1 Ω
Infinity
COM
NO
NC
[Electric]
BE L T C U T -O F F S /W 125V , 15A
6. Reference Information
