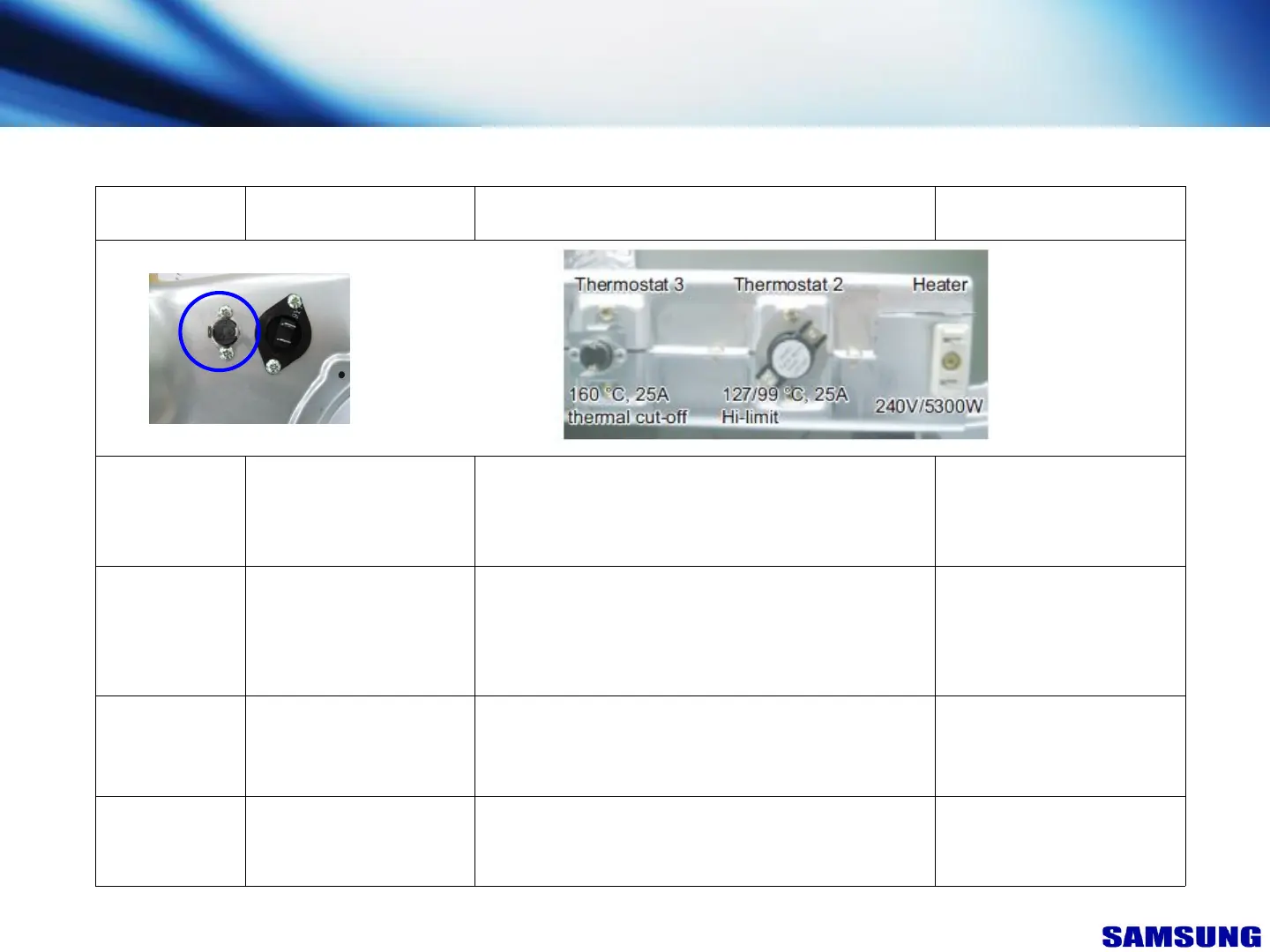

Component Check
Parts Spec Description Value
Thermostat 1
Thermostat Cut Off
185°F/85°C, 25A
Unplug connector and measure its resistance Less than 1 Ω
Thermostat 2
Hi Limit
260°F/127°C, 25A
(Electric)
230°F/110°C, 25A
(Gas)
Unplug connector and measure its resistance Less than 1 Ω
Thermostat 3
Thermostat Cut Off
320°F/160°C, 25A
Unplug connector and measure its resistance Less than 1 Ω
Heater
230V / 4700W Unplug connectors and test Heater terminals 10 Ω
Thermostat 1
[Electric]
