Heater Assembly
(ELECTRIC MODEL)
FIGUREDESCRIPTIONPART NAME

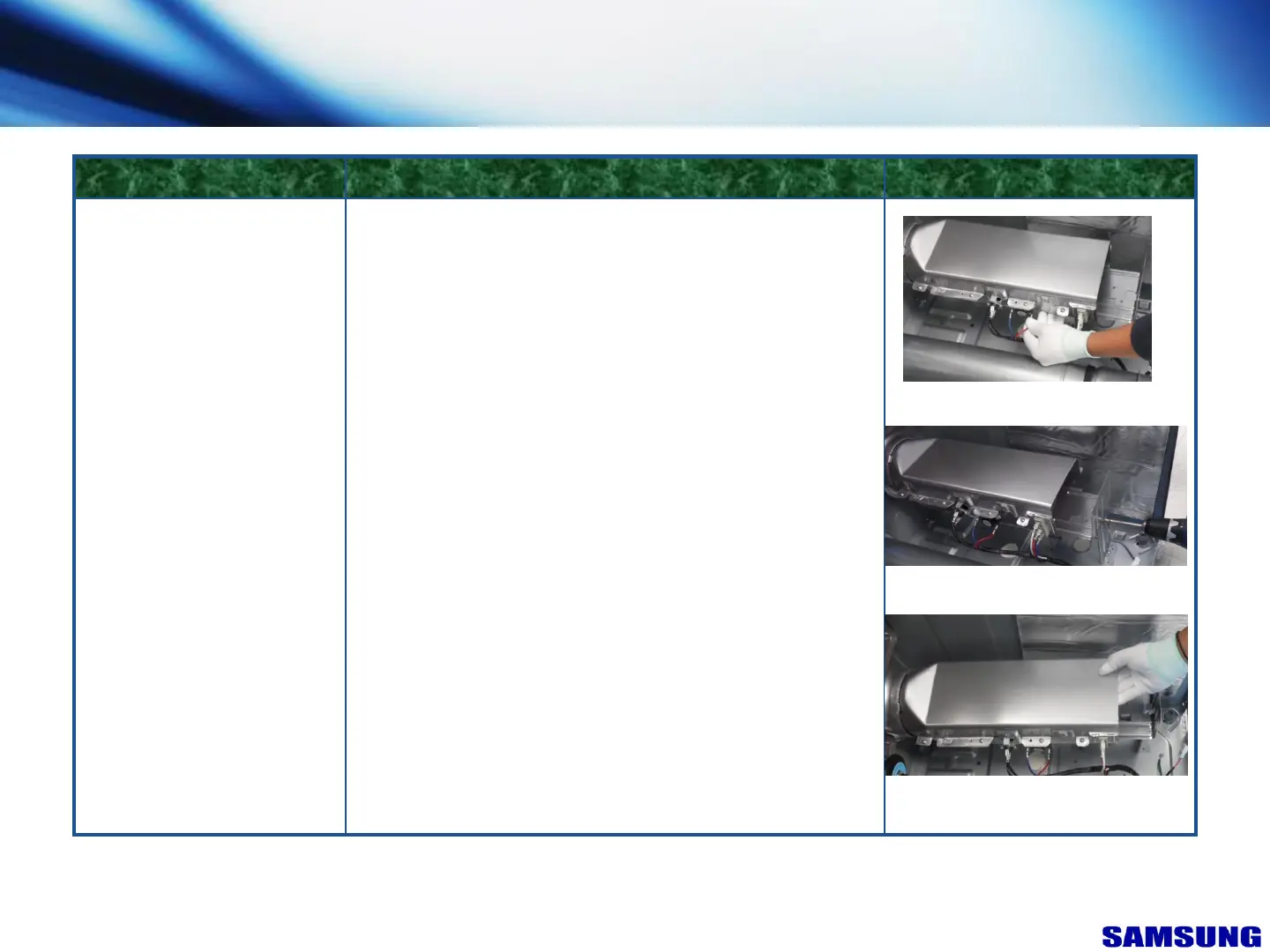

1.After separate Motor, Duct-Fan, do the following.
2.Remove 6 Housing Heater-Terminals
3.Remove 1 screw from Heater Die.
4.Separate Heater in Drum-Back.
