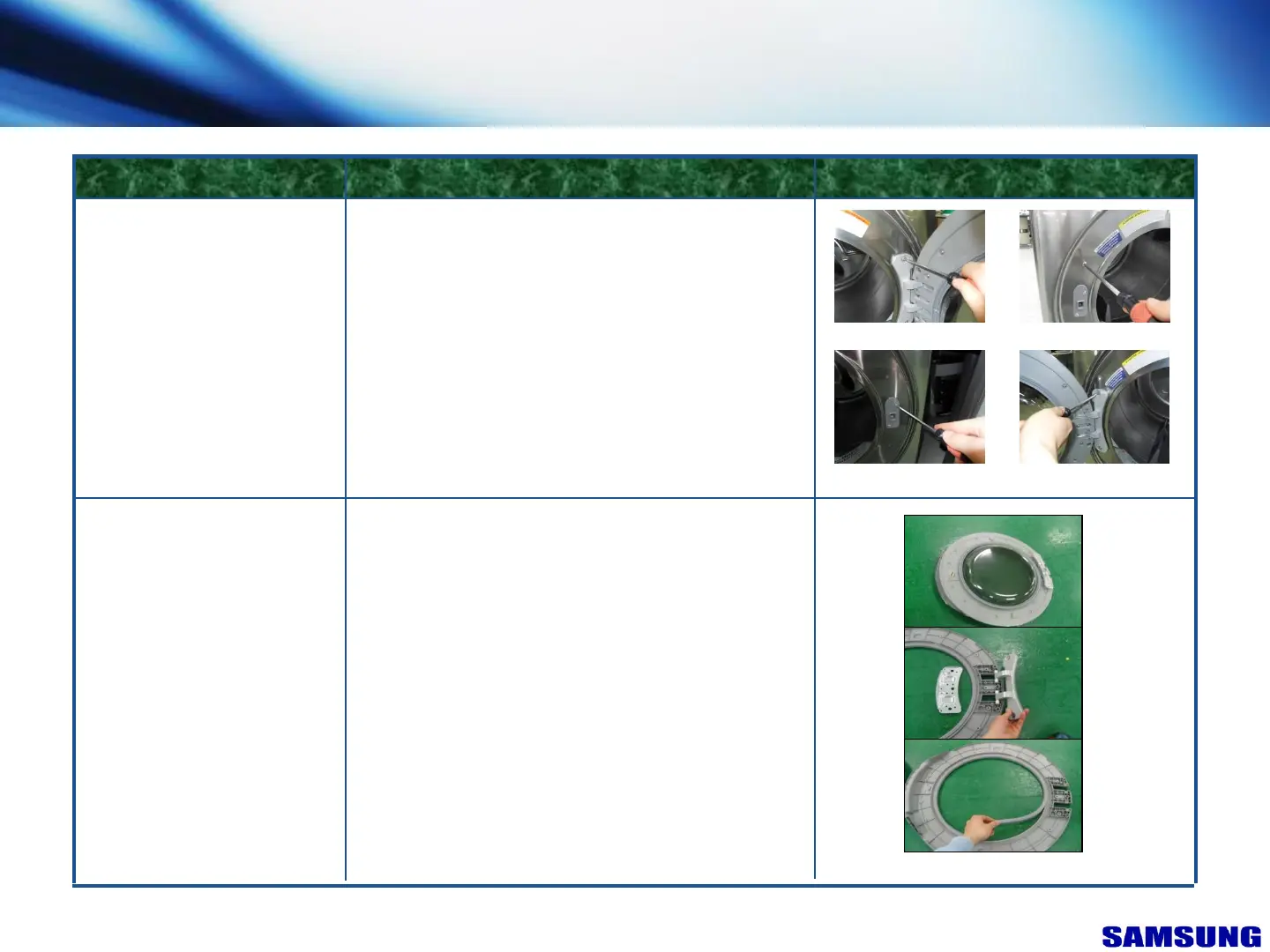

1.Unplug the unit.
2.Remove two screws from Holder-Lever
3.Remove two screws from Door Hinge.
4.Assemble Door Lock Guide and
Door Assy to each other’s location.
Door Reversal
FIGUREDESCRIPTIONPART NAME
Disassembly
1. Remove 10 screws Holder-Glass
2. Remove Door Cover
3. Remove 4 screw Support-Hinge
4. Remove Support-Hinge, Hinge-Door.
5. Remove Door Seal
■ After reassembly check the door
opened and closed properly.
1 2
3
4
7. Disassembly & Reassembly
“This document can not be used without Samsung's authorization”
71
