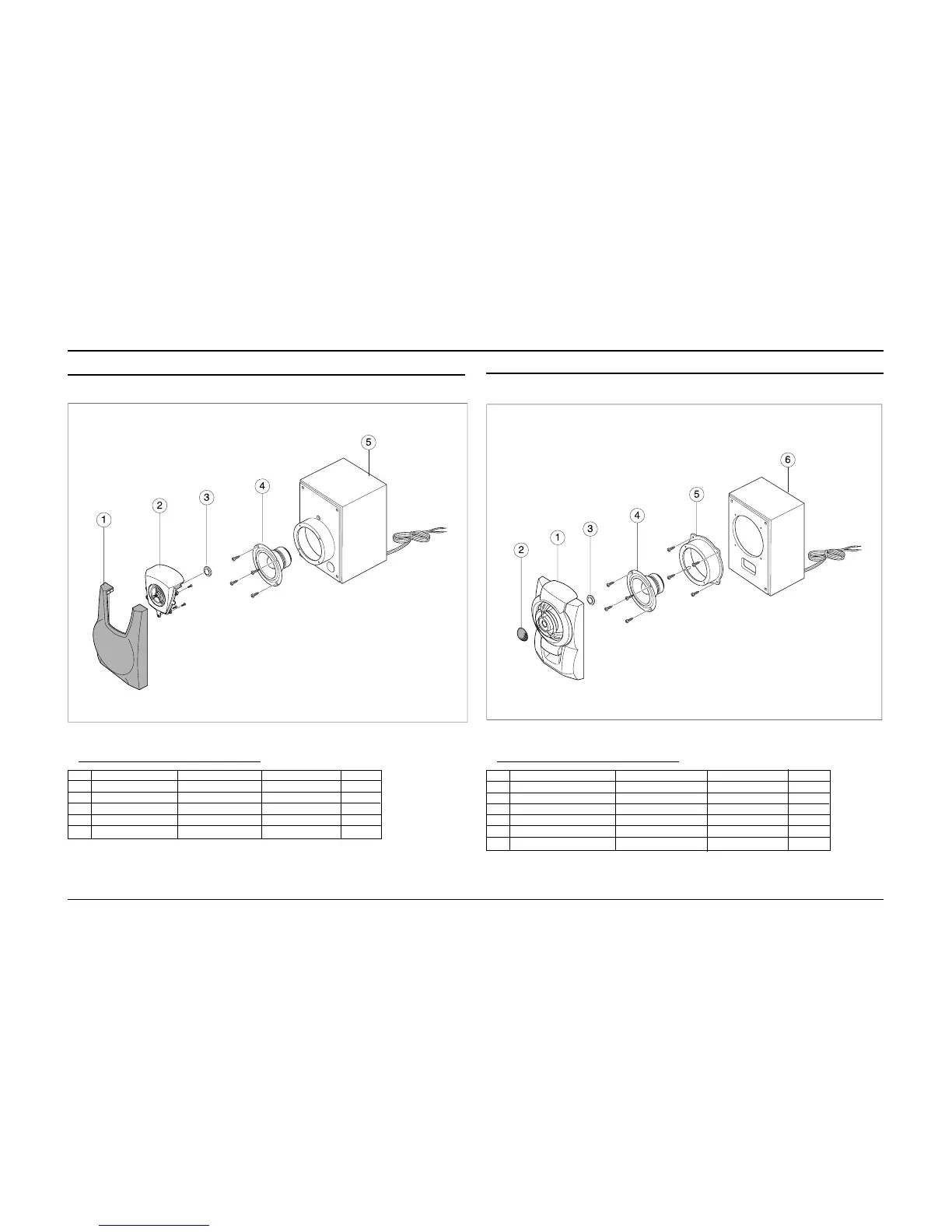

2-4 SPEAKER Exploded View and Parts list
Samsung Electronics
2-13
2-4-2 PS930 -- Application Model : MAX910/930/938
No. Description Specification Code No. Q’TY
1 PANEL FRONT HIPS L/GRAY AH81-00079C 1
2 PUNCHING GRILLE EGI AH81-00079D 1
3 PIEZO CAP AH81-00079K 1
4 UNIT W/F 5 1/4” AH81-00079G 1
5 WOOFER RING HIPS BLK AH81-00079E 1
6 CABINET ASS’Y AH81-00079F 1
* PS930 : ASS’Y SPEAKER(AH81-00079A)
2-4-1 PS920 -- Application Model : MAX909/929/932(P)
No. Description Specification Code No. Q’TY
1 NET HIPS BLK AH81-00078E 1
2 PANEL FRONT HIPS L/GRAY AH81-00078C 1
3 PIEZO CAP AH81-00078K 1
4 UNIT W/F 5 1/4” AH81-00078G 1
5 CABINET ASS’Y AH81-00078F 1
* PS920 : ASS’Y SPEAKER(AH81-00078A)
* CAUSION : It is used the bonding, connet NET FRAME to CABINET ASS’Y.
So when the disassembly, take extreme care not to demage the SPEAKER.
* CAUSION : It is used the bonding, connet PANEL FRONT to CABINET ASS’Y.
So when the disassembly, take extreme care not to demage the SPEAKER.
