Samsung MAX-939 - Exploded Views and Parts List; 2-1 Cassette Deck Exploded Views and Parts Lists

2.Exploded Views and Parts List

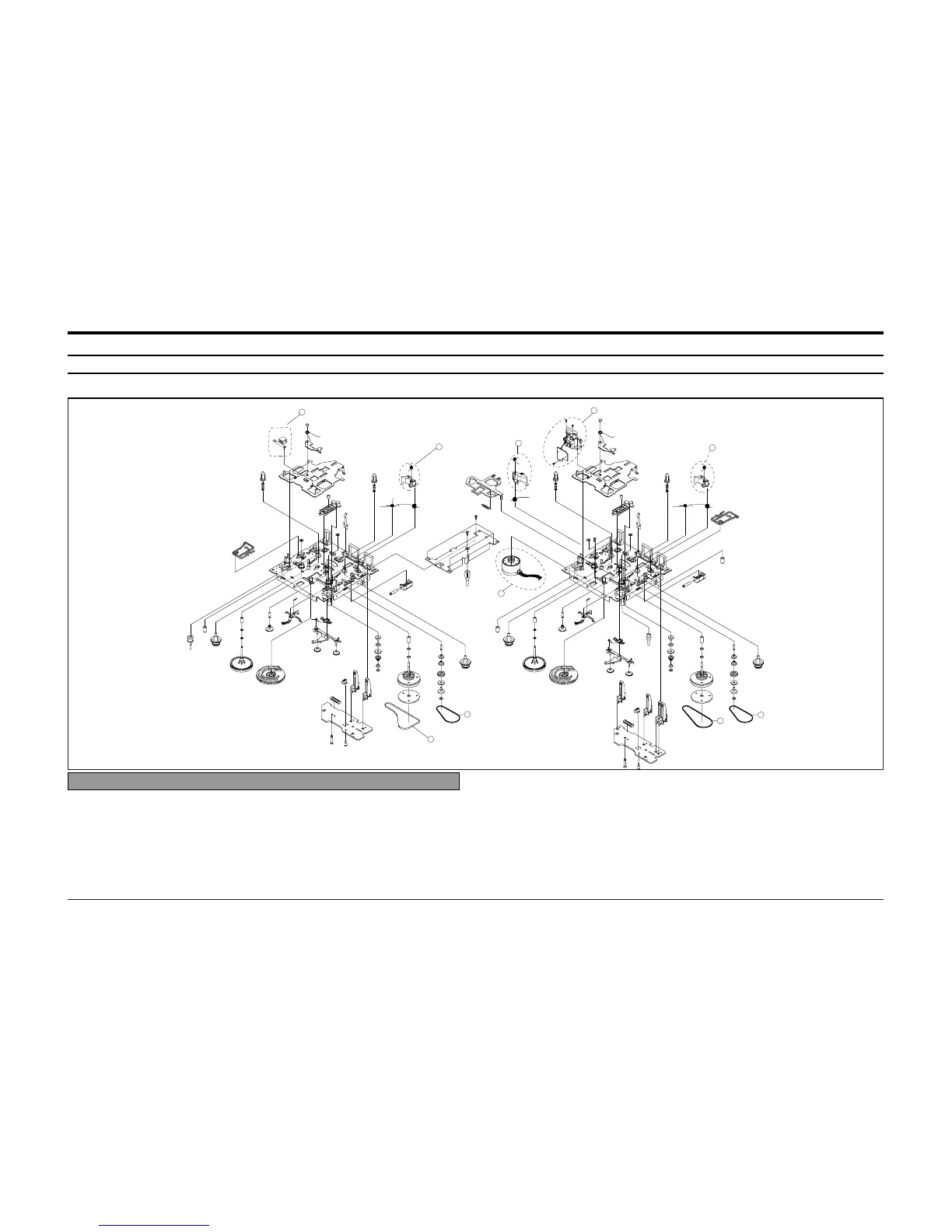

2-1 Cassette Deck Exploded View and Parts List :
Samsung Electronics 2-1
4
5
2
1
8
4
3
7
6
8
No. Code No. Description Specification Remarks
AH59-20006B DECK-CASSETTE ADR2113MW3
1 AH81-11052G MOTOR ASS’Y EG530YD2BH
2 AH81-10798Y HEAD ASS’Y(R/P) YK56RAA4N3
3 AH81-10022E HEAD ASS’Y(P/B) MS15RAA2N1
4 AH81-10798K PINCH ARM(F) ADR2100-06
5 AH81-10798M PINCH ARM(R) ADR2100-07
6 AH81-10798Q MAIN BELT(R/P) ADR2113MW-02
7 AH81-10798T MAIN BELT(P/B) ADR2113MW-03
8 AH81-10798U SUB BELT ADR2100-09
2-1-1 Application Model : MAX939/940/941
