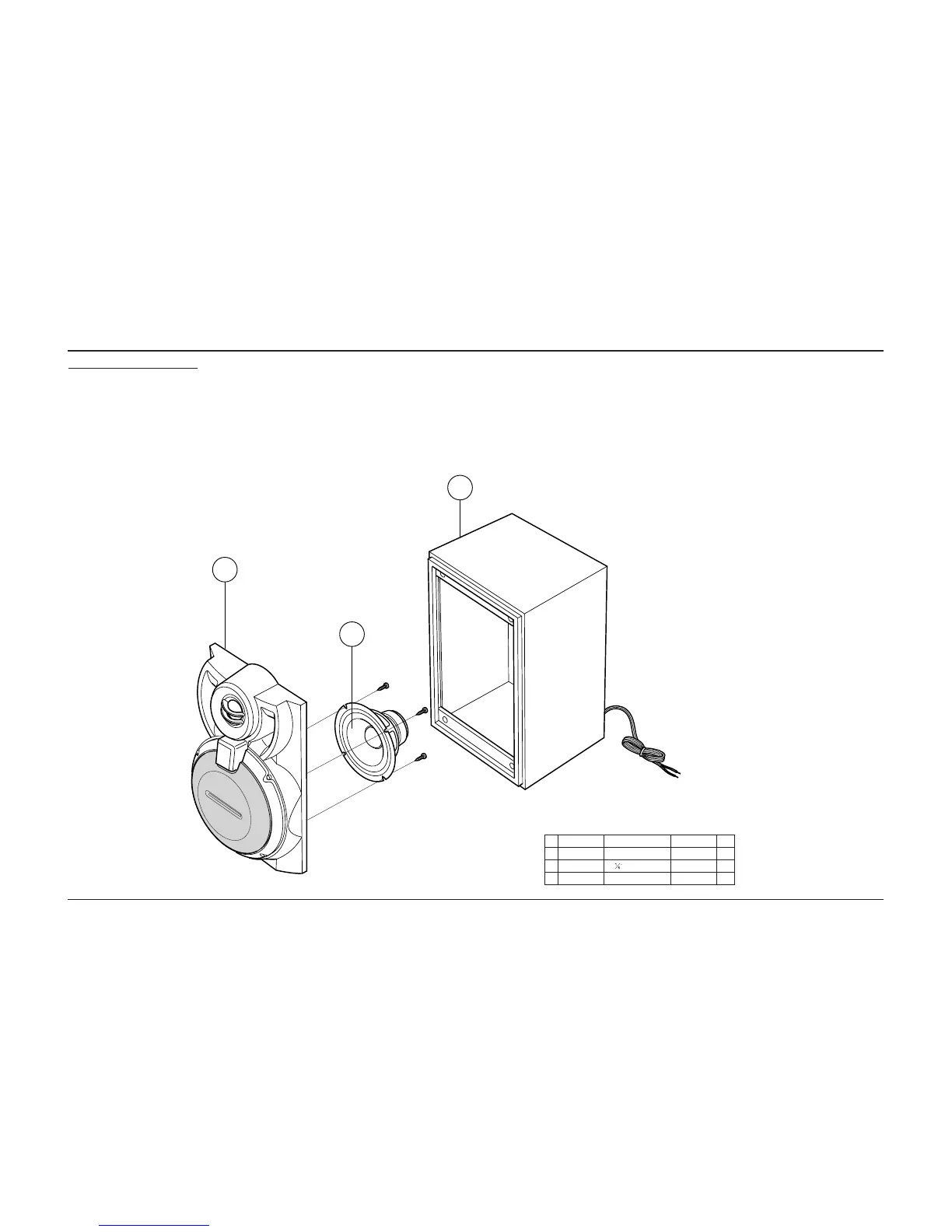

2-5 SPEAKER Exploded View and Parts list
1
2
3
PS B450E/H : AH81-00638A
No. Description Code No. Q'TY
1
PANEL ASS ' Y AH81-00638J 1
2
UNIT WOOFER AH81-00638E 1
3
CABINET ASS'Y AH81-00638D 1
Specification
PANEL+P/GRILLE+PIEZO
5 WHITE CONE
PB 9t
* CAUSION : It is used the bonding, connet NET FRAME(or FRONT PANEL ASS’Y) to CABINET ASS’Y.
So when the disassembly, take extreme care not to demage the SPEAKER.
2-5-1 MAX-B450/MAX-ZB450
