26
Process
4. MCU
address and
port setting
for indoor
unit
(for wired
remote
controller)

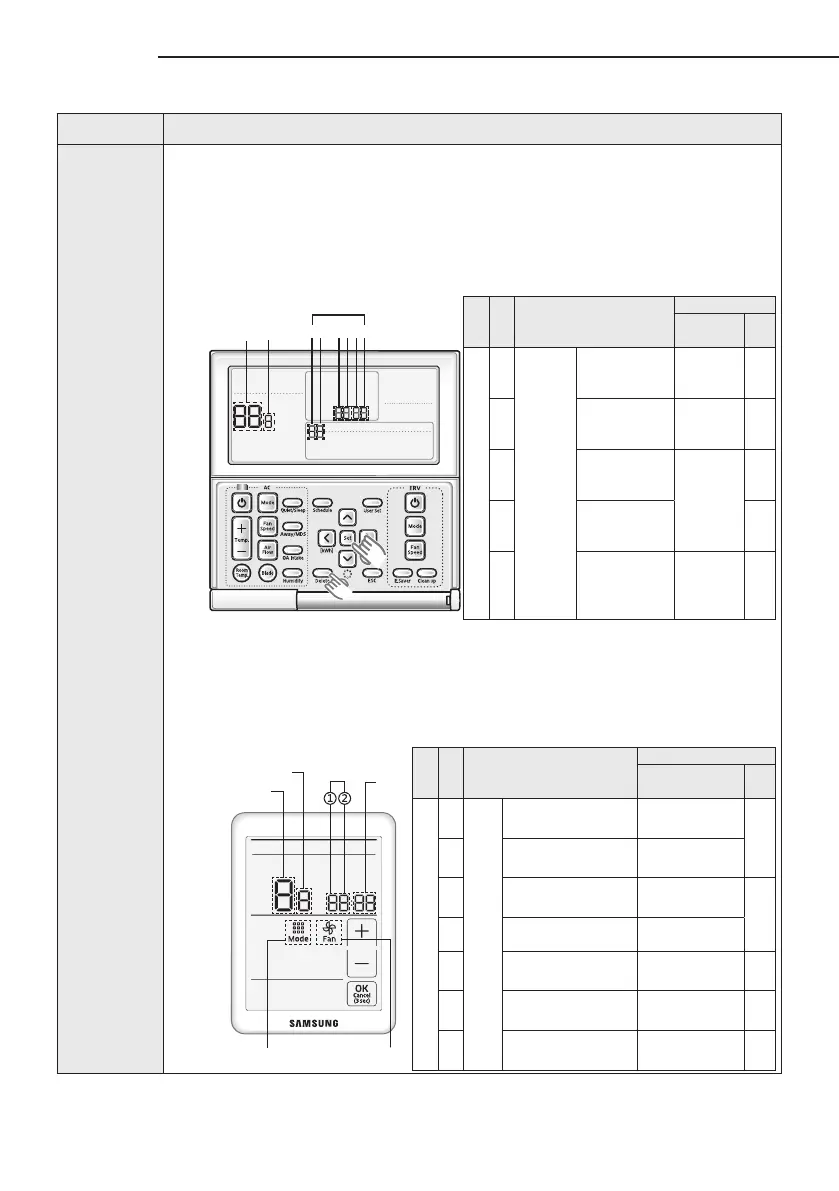

2. Wired remote controller
– Setting for MWR-WE1*N
1) Press the Delete and Set buttons at the same time for more than three seconds. Then you will
enter the additional function settings, and the [main menu] will be displayed.
2) Assign an indoor unit MCU port address with main menu 4, sub menu 7 (MCU address is
assingned to SEG 12, Port address is assinged to SEG 4). If you want to know the detailed
operation of MWR-WE1*N , refer to installation manual for MWR-WE1*N.
Main
Menu
Sub-
menu
1
2
3
5
4
6
Data bit
Main
menu
Sub
menu
Function
Setting value
Description
Factory
default
4
1
Indoor unit/
Ventilator(ERV)
option setting
Setting/Checking the
address
MAIN address
(00H~4FH)
None
2
Setting/Checking the
product option
MAIN address
(00H~4FH)
None
3
Setting/Checking the
installation option 1
Refer to the
installation
manual of the
connected
indoor unit/
ventilator (ERV)
None
4
Setting/Checking the
installation option 2
None
7
MCU address setting/
checking
Port address setting/
checking
MCU address
(00~15)
Port address
(A~F)
None
– Setting for MWR-SH1*N
1) Press the top right corner (hidden button) of the display for more than 3 seconds then release it.
Then you can press [ + ]/[ - ] buttons and select No.3 and press [ OK ] button.
2) Assign an indoor unit MCU port address with main menu 4, sub menu 7 (MCU address is
assingned to SEG 12, Port address is assinged to SEG 4). If you want to know the detailed
operation of MWR-SH1*N, refer to installation manual for MWR-SH1*N.
Setting
value
Main menu
Sub menu
Page
Move menu Move page
Main
menu
Sub
menu
Function
Setting value
value
Factory
default
4
1
Setting
address/
option
Target address setting
Target address of indoor
unit (Example: 20 02 1F)
None
2 Main address setting/Checking
0~4F
(in hexadecimal digits)
3 RMC address setting/Checking 0x00~0xFE
None
4 Basic option setting/Checking Option code
5 Install option setting/Checking Option code None
6
Install(2) option setting/
Checking
Option code None
7
MCU address setting/checking
Port address setting/checking
MCU address (00~15)
Port address (A~F)
None
Wiring
