Samsung MCU-S6NEE1N User Manual

6

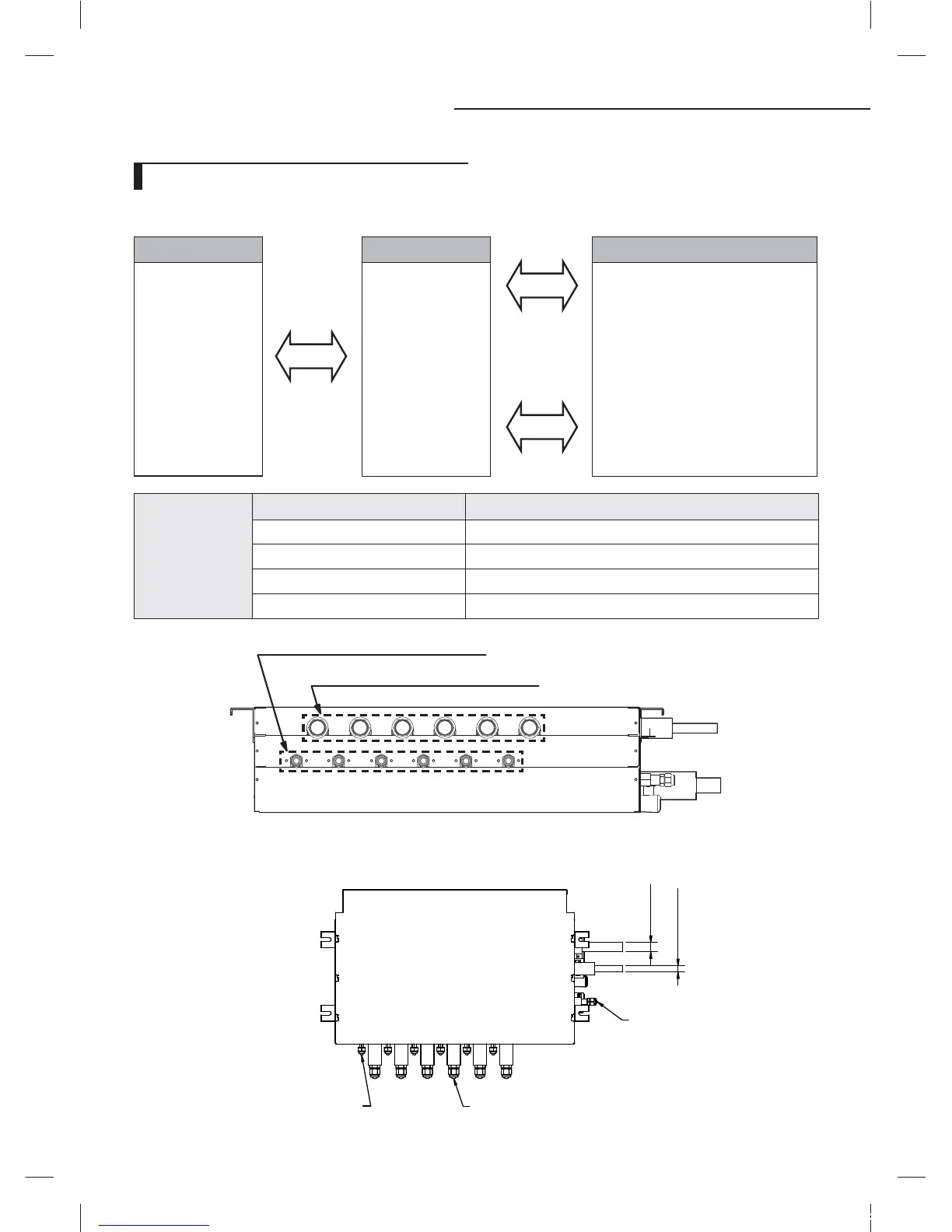

Preparing the installation
MCU indoor/outdoor unit compatible table
Before installing MCU, refer to the compatible table below and nd the model before installation.
Outdoor Unit
AM✴✴✴✴X✴✴✴✴
MCU
MCU-S6NEE1N
MCU-S4NEE1N
MCU-S4NEE2N
MCU-S2NEK1N
Indoor Unit
AM✴✴✴✴N✴✴✴✴
MCU Kit
Model Description
MCU-S6NEE1N
Below 6 indoor units, below 56 kW (192MBH)
MCU-S4NEE1N
Below 4 indoor units, below 56 kW (192MBH)
MCU-S4NEE2N
Below 2 large capacity indoor unit, below 56 kW (192MBH)
MCU-S2NEK1N
Below 2 indoor units, below 28 kW (96MBH)
Gas pipe connected to indoor unit
Liquid pipe connected to indoor unit
<Side view of MCU>
ø 28.58 (ø 1 1/8)
ø 19.05 (ø 3/4)
ø 15.88 (ø 5/8) nipple
ø 12.7 (ø 1/2) nipple
ø 9.52 (ø 3/8) nipple
[Unit : mm(inch)]
tj|Tz]ullXuptluGWZ[`WhTW]UGGG] YWX\TW`TX^GGG㝘㤸GXWa\Za[\

Samsung MCU-S6NEE1N Specifications

General

Brand	Samsung
Model	MCU-S6NEE1N
Category	Control Unit
Language	English
