8-4Samsung Electronics

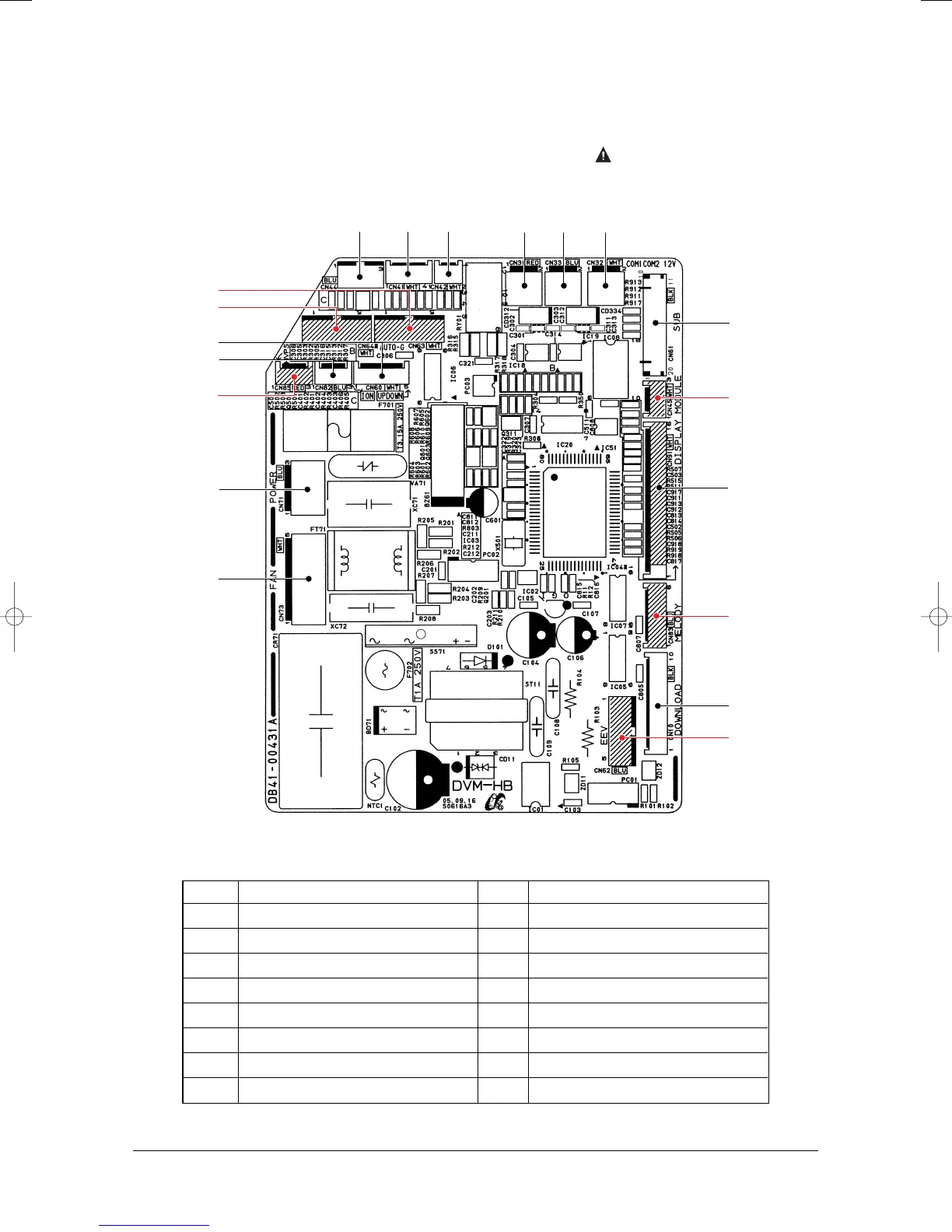

PCB Diagram
!
Motor Rpm FeedBack
@
ROOM/EVA IN
#
EVE OUT
$
COM1
%
COM2
^
12V
&
SUB PCB Connection
*
Module PCB Connection
(
Display PCB Connection
)
Melody
1
Download Connector
2
EEV
3
Indoor Fan Motor
4
POWER
5
MPI
6
Blade Step Motor
7
Auto Grille Step Motor 1
8
Auto Grill Step Motor2
&
*
(
)
1
2
5
6
4
3
! @ # $ % ^
■ MH✳✳✳FVEA/MH✳✳VV1-✳✳(MAIN PCB)
The red number connecter is not used.
8
9
7
