Samsung MH040FXEA2A - Page 151

8-8Samsung Electronics

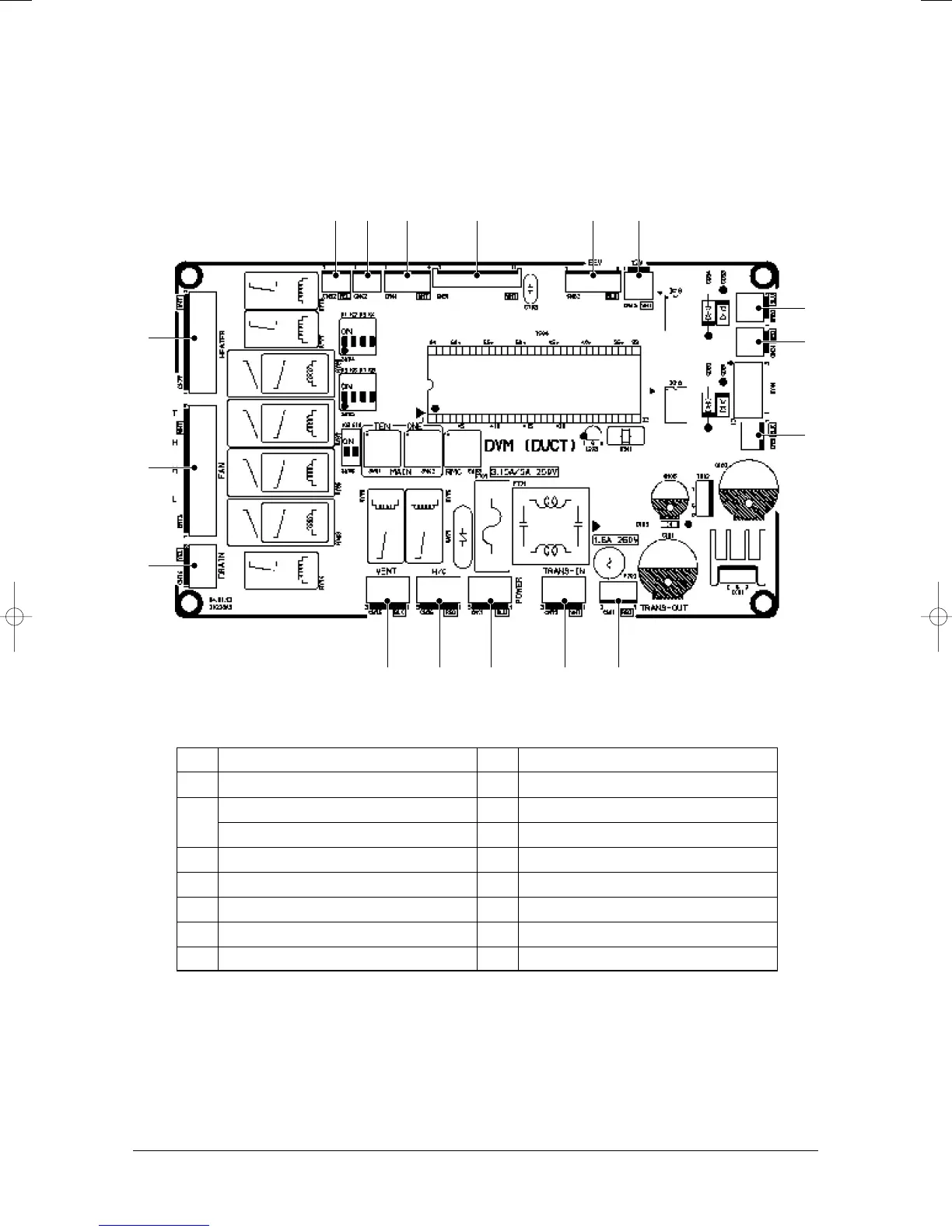

PCB Diagram
&
*
(
)
1
2
3 4 5 6 7
! @ # $ % ^
!
Heat-Thermal
@
EVA out Temperature
#
Room Temperature
EVA in Temperature
$
Display
%
EEV
^
12V Power
&
COM 2
*
COM 1
(
Float Switch
)
Heater
1
Fan Motor
2
Drain Pump
3
Ventilator
4
Water Coil
5
Power
6
Trans in
7
Trans out
■ MH✳✳✳FDEA
