Disassembly and Reassembly
No Parts Procedure Remark
2
Fan
&
Motor

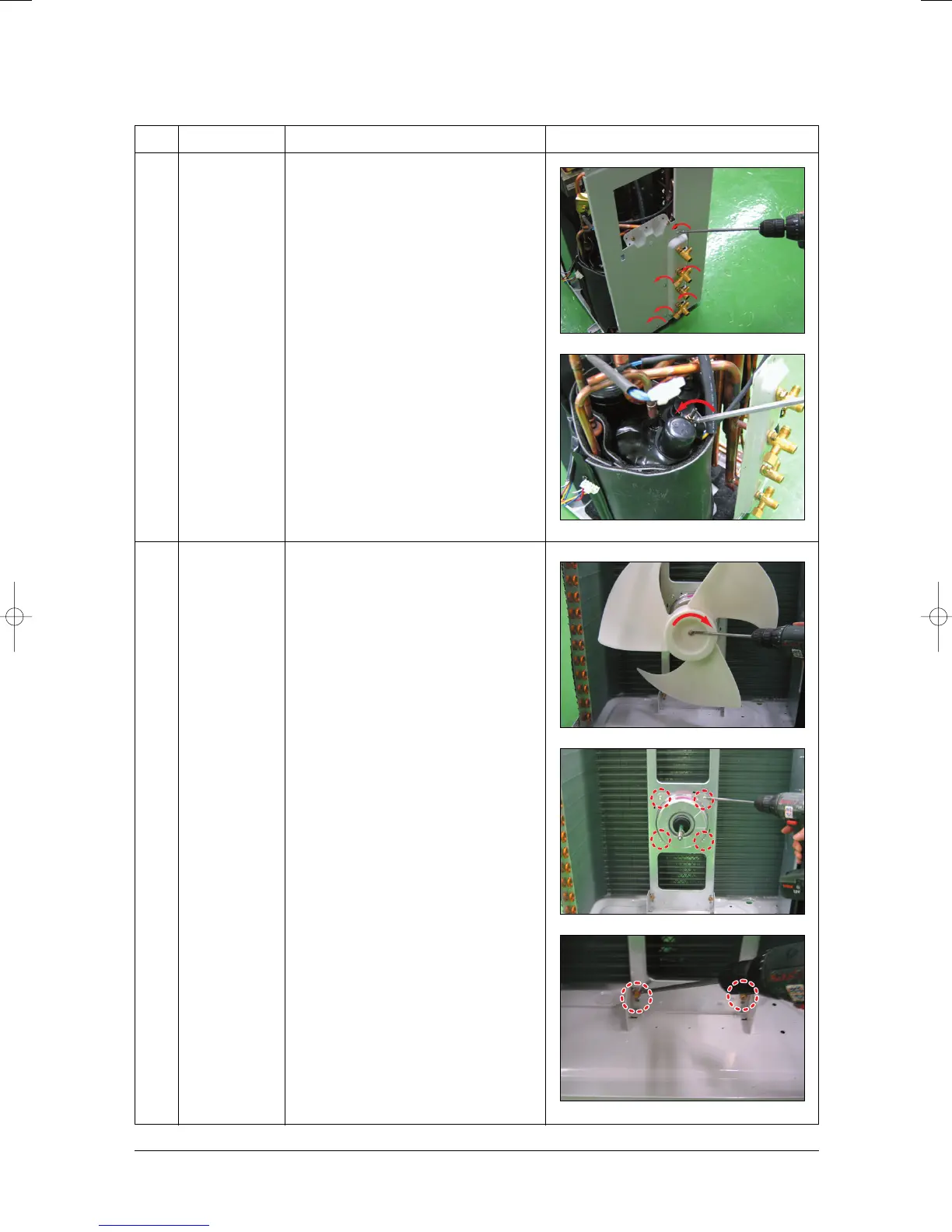

7) Loosen 9 fixing screws and detach the
Cabinet Side.
8) Detach the Terminal and detach the
Compressor Lead Wire.
1) Loosen the fixing nut and detach the Fan.
2) Loosen 4 fixing bolts and detach the
Motor.
3) Loosen 2 fixing bolts and detach the
Bracket Motor.
To Next Page
