PREPARING THE INSTALLATION
Air Conditioner and Accessories

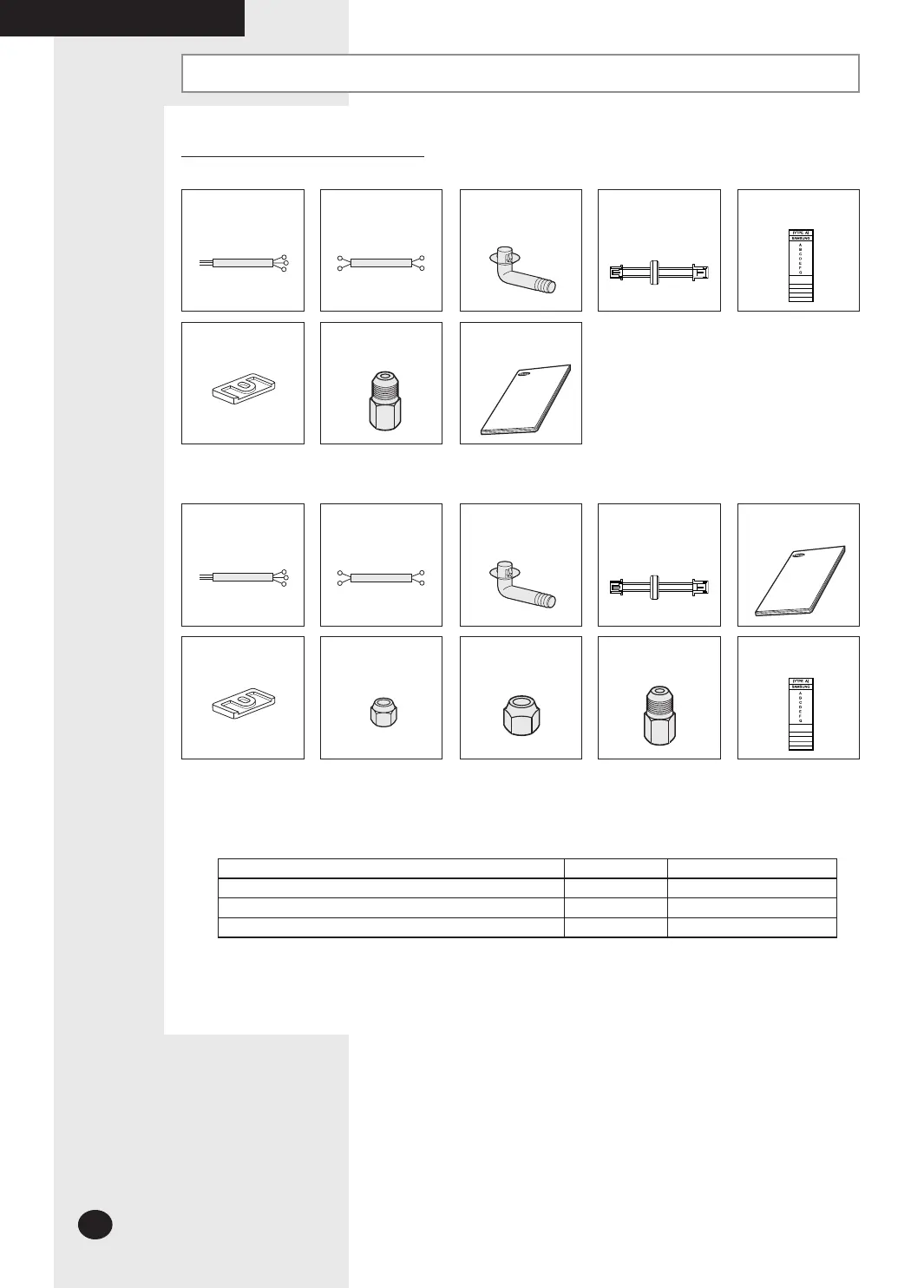

The following accessories are supplied with the air conditioner.
Accessories in the Outdoor Unit Case
 MH040FXEA2A/MH052FXEA2A/MH060FXEA3A/MH18VV1X/MH19VV1X
3-wire
Power Cable
(option)
2-wire
Assembly Cable
(option)
Drain Plug
Transmitter power
cable
Energy Label
Rubber Leg Flare Bolt
(Nut 1/2”, Bolt 3//8”)
(except MH040FXEA2A)
Installation Manual
Attach Energy Label to the outdoor unit properly when installing.
 MH070FXEA4A / MH080FXEA4A
3-wire
Power Cable
(option)
2-wire
Assembly Cable
(option)
Drain Plug
Transmitter power
cable
Energy Label
Rubber Leg Flare Nuts, 6.35mm
outer pipe diameter
Flare Nuts, 9.52mm
outer pipe diameter
Flare Bolt
(Nut 1/2”, Bolt 3/8”)
Installation Manual
Attach Energy Label to the outdoor unit properly when installing.

The 3-wire power cable and the 2-wire assembly cable are optional. If these cables are not supplied, use the
standard cable approved by IEC standard.
The specification for cables :
Use AWG Cross sectional area (mm
2
)
3-wire power cable for main power supply 13 or fewer 2.5 or more
3-wire power cable for indoor power supply 16 or fewer 1.5 or more
2-wire assembly cable for communication 16 or fewer 1.5 or more
