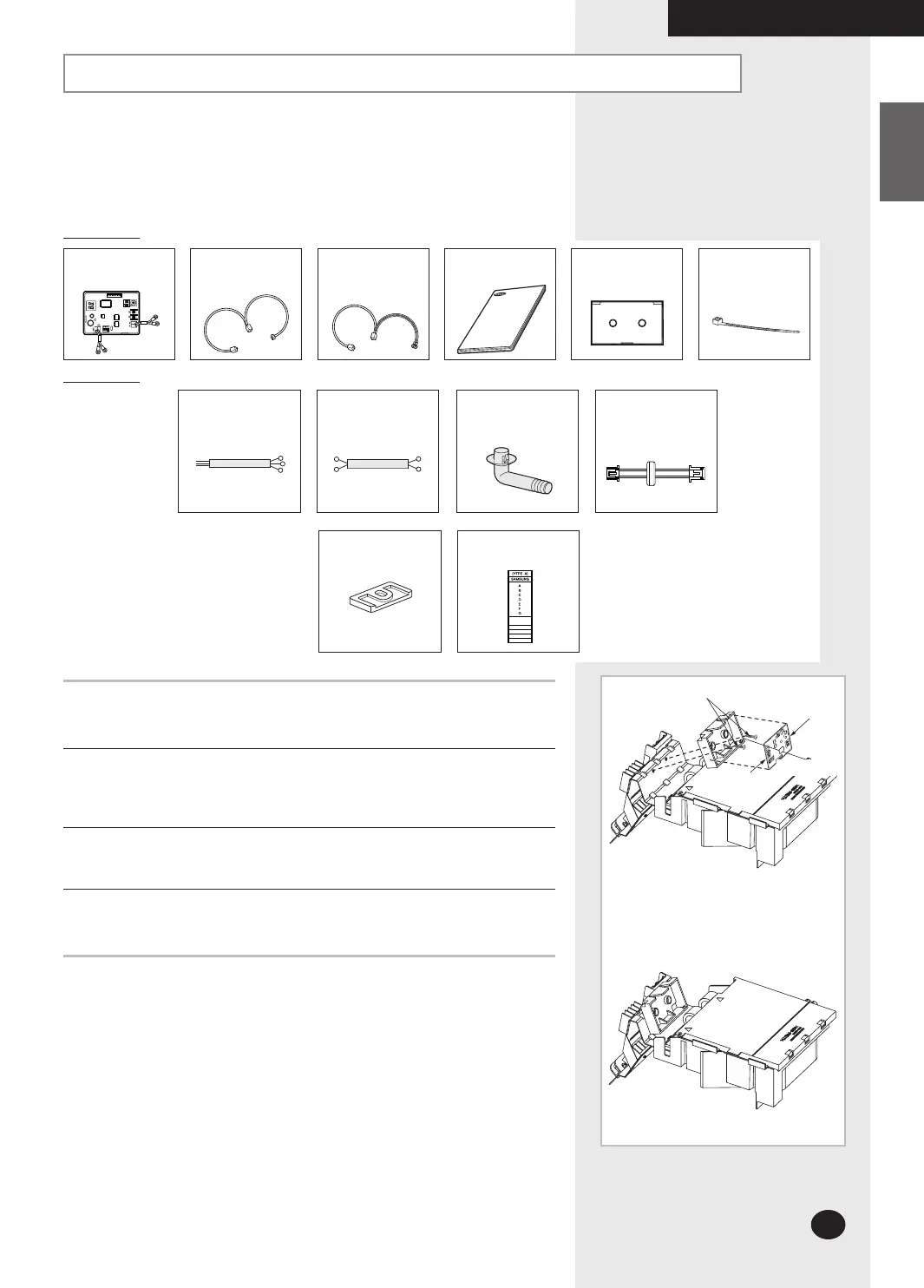

Transmitter Installation (Optional)
 MH040FXEA2A
Accessories (Transmitter: MIM-B13)
Transmitter Transmitter power
cable
Transmitter
communication cable
Installation Manual Case
Rubber Leg
Accessories (Outdoor Unit)
3-wire
Power Cable
(option)
2-wire
Assembly Cable
(option)
Drain Plug
Transmitter power
cable
Energy Label
Cable-tie
7seg. LED
Display side
Transmitter
Terminal
side
Bolts spec.
M4
1
Fix the case at with bolts on the side of the control box in the outdoor unit.
(See the picture)
2
Attach the transmitter PCB to the case in the control box in the outdoor
unit, then connect the power and the communication cable between the
transmitter and the outdoor unit; refer to the figure of page 19.
3
If you install a transmitter to an outdoor unit, every indoor unit which is
connected to an outdoor unit can be controlled simultaneously.
4
Each outdoor unit connected to the same centralized controller has its
own transmitter.
Fix the case with hinges
(Control Box in the outdoor unit)
