E-5
ENGLISH

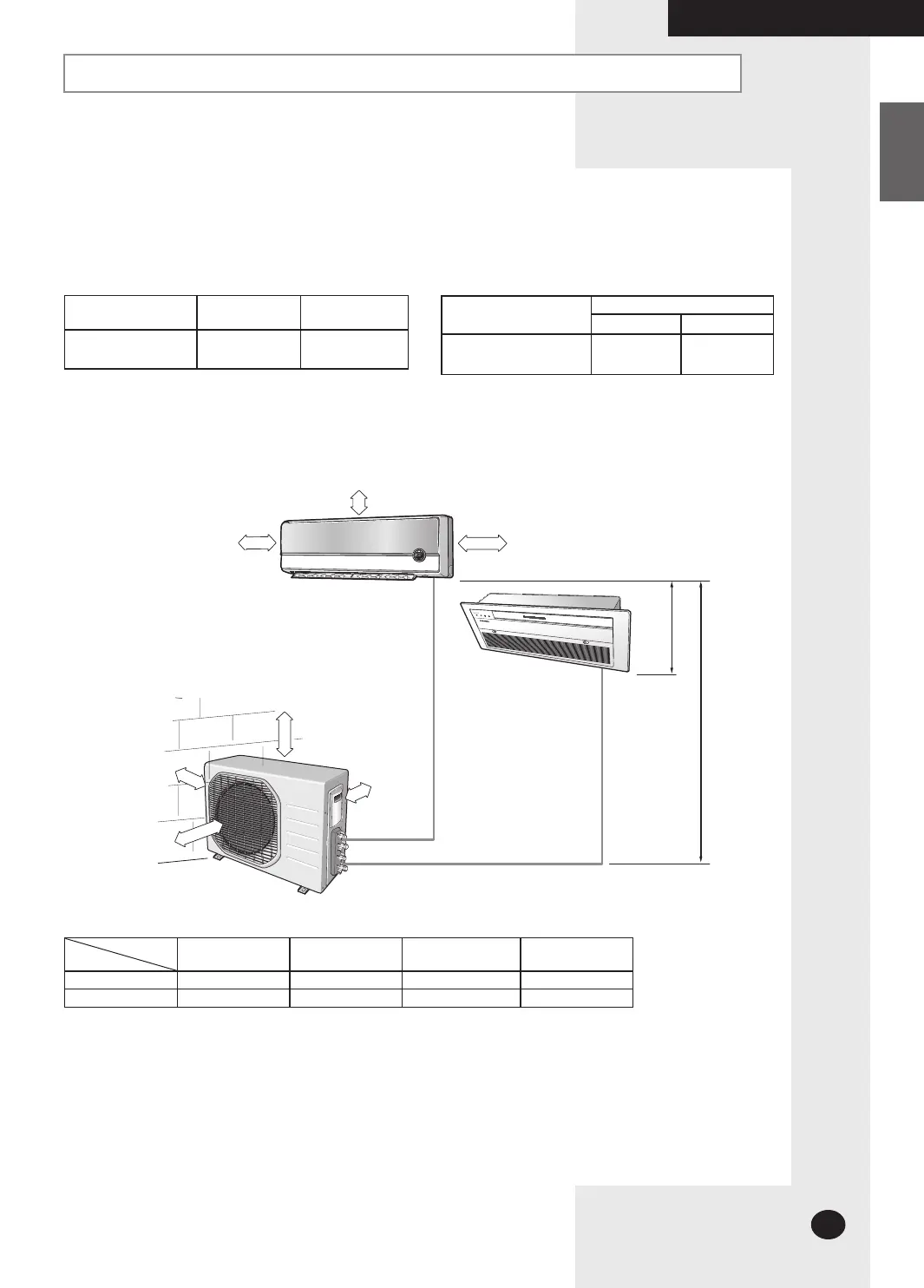

PREPARING THE INSTALLATION
MH040FXEA2A
The split type and 1-way cassette indoor units can be installed together.
Indoor unit Outdoor unit
Power supply
Ø, V, Hz

020/023/026/035

MH040FXEA2A 1,220-240, 50
Unit
Outside diameter
Liquid Gas

020/023/026/035

1/4" 3/8"
MH040FXEA2A outdoor unit cannot be connected to the following indoor unit combination.
-
052/MH FMEA/MH  FEEA
Piping outside diameter
200 mm
or more
160 mm
or more
100 mm
or more
(h) (H)
A B
600 mm
minimum
1 Room max
length
2 Room total max
length
Max height between
indoor unit & outdoor unit
Max height between
indoor units
Dimension 15m 30 m 15m 7.5 m
Composition A,B A+B (H) (h)
Piping length and the height
300 mm
minimum
300 mm
minimum
600 mm
minimum
