Reference Information
11-4Samsung Electronics

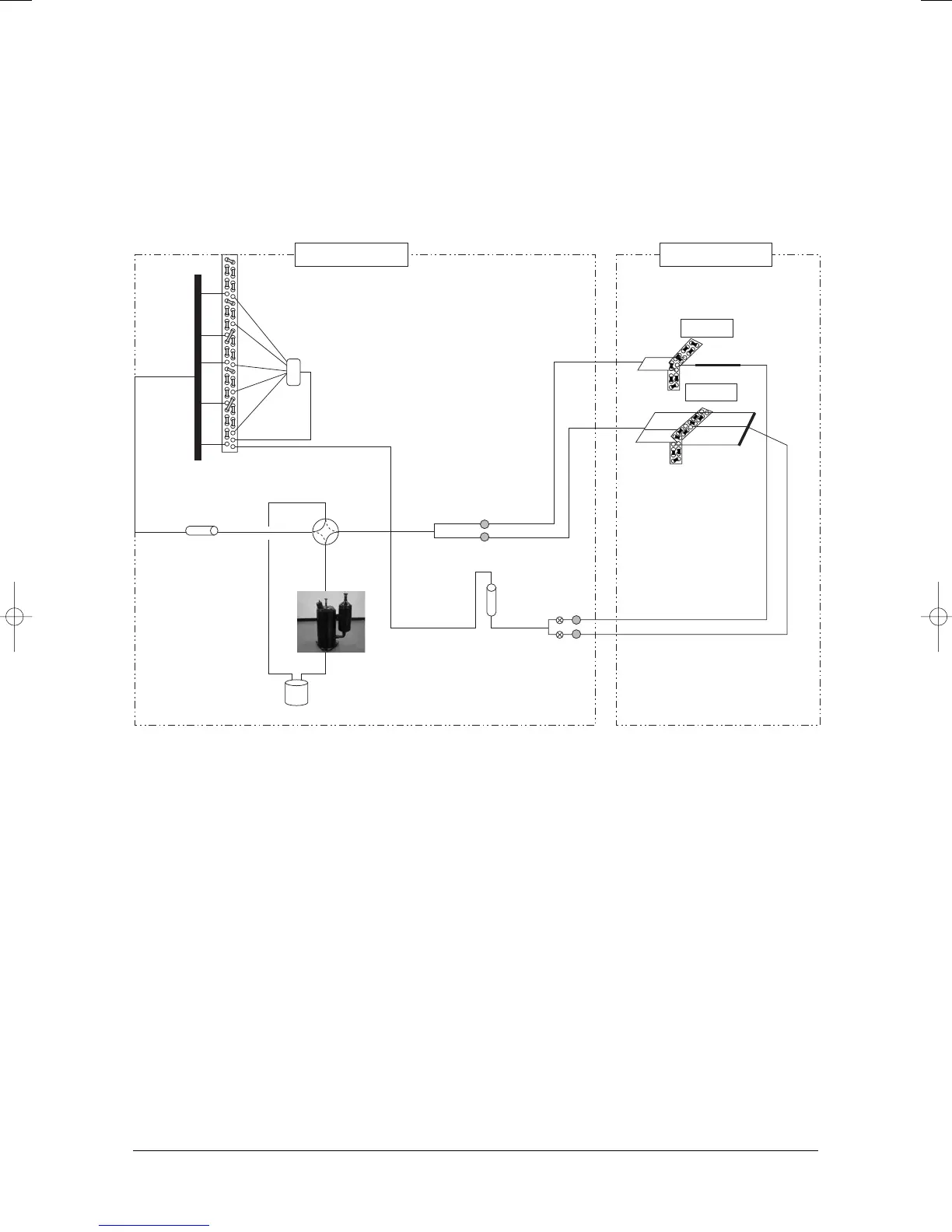

■ MH19VP2X/MH19VW2X
ex) 2 Rooms(MH✳✳✳✳✳-07+MH✳✳✳✳✳-12)
1/4"
1/2"
Header
(5/8")
Distributor
3/8"
3/8"
Service
valve
Service
valve
Receiver
1/4"
1/4"
EEV
OUTDOOR UNIT INDOOR UNIT
ROOM A
ROOM B
Sub-
accumulator
1/2"
1/2"
2
1
1
2
4 way valve
Inverter
Compressor
Main-
accumulator
3/8"
Muffler
