Disassembly and Reassembly
No Parts Procedure Remark
1 Common Work
&

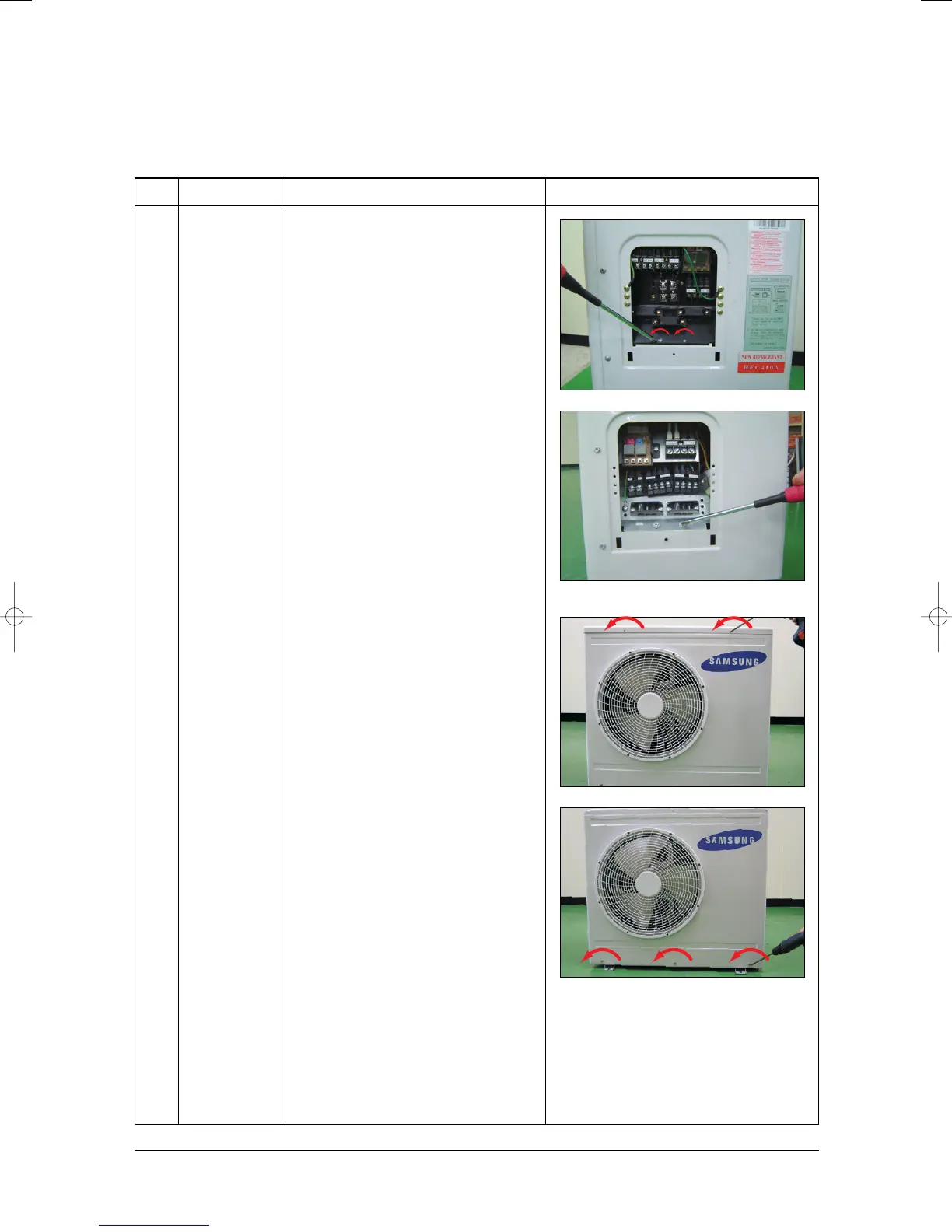

Control Out
1) Loosen the fixing screw and detach the
Cover-Control.
2) Detach the Cable-Connector Wire from
the Terminal-Block.
3) Loosen 2 fixing screws of the Ass'y
Control Out.
4) Loosen 8 fixing screws and detach the
Cabinet Upper.
5) Loosen 6 fixing screws, 7 bolts and
detach the Cabinet Front.
4-1-3 MH068FXEA4/MH080FXEA4/MH30VP2X/MH30VW2X
MH070FXEA4A/MH080FXEA4A
[MH070FXEA4A/MH080FXEA4A model only]
