Disassembly and Reassembly
4-9Samsung Electronics

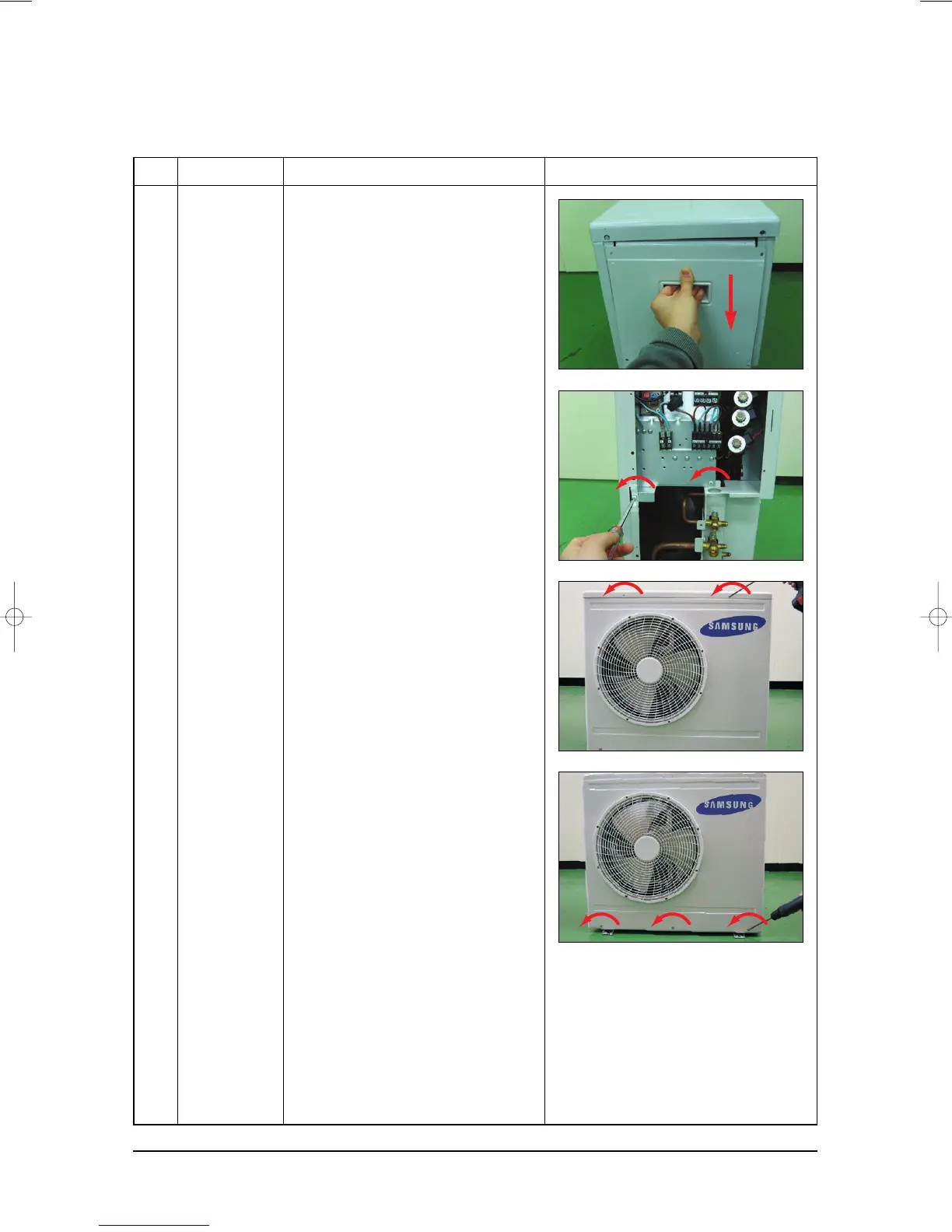

No Parts Procedure Remark
1 Common Work
&
Control Out
1) Loosen 7 fixing screws and detach the
Cabinet side RH. (Use +Screw Driver.)
2) Detach the Cable-Connector Wire from
the Terminal-Block.
3) Loosen 2 fixing screws of the Ass'y
Control Out. (Use +Screw Driver.)
4) Loosen 6 fixing screws and detach the
Cabinet Upper. (Use +Screw Driver.)
5) Loosen 2 fixing screws, 7 bolts and
detach the Cabinet Front.
(Use +Screw Driver.)
4-1-3 MH060FXEA3B/MH070FXEA4B/MH080FXEA4B
