Samsung ML-1640 User Manual

Service Manual
Reference information
7-1
Samsung Electronics
7. Reference Information
This chapter contains the tools list, list of abbreviations used in this manual, and a guide to the
location space required when installing the printer. A definition of tests pages and Wireless
Network information definition is also included.
7.1 Tool for Troubleshooting

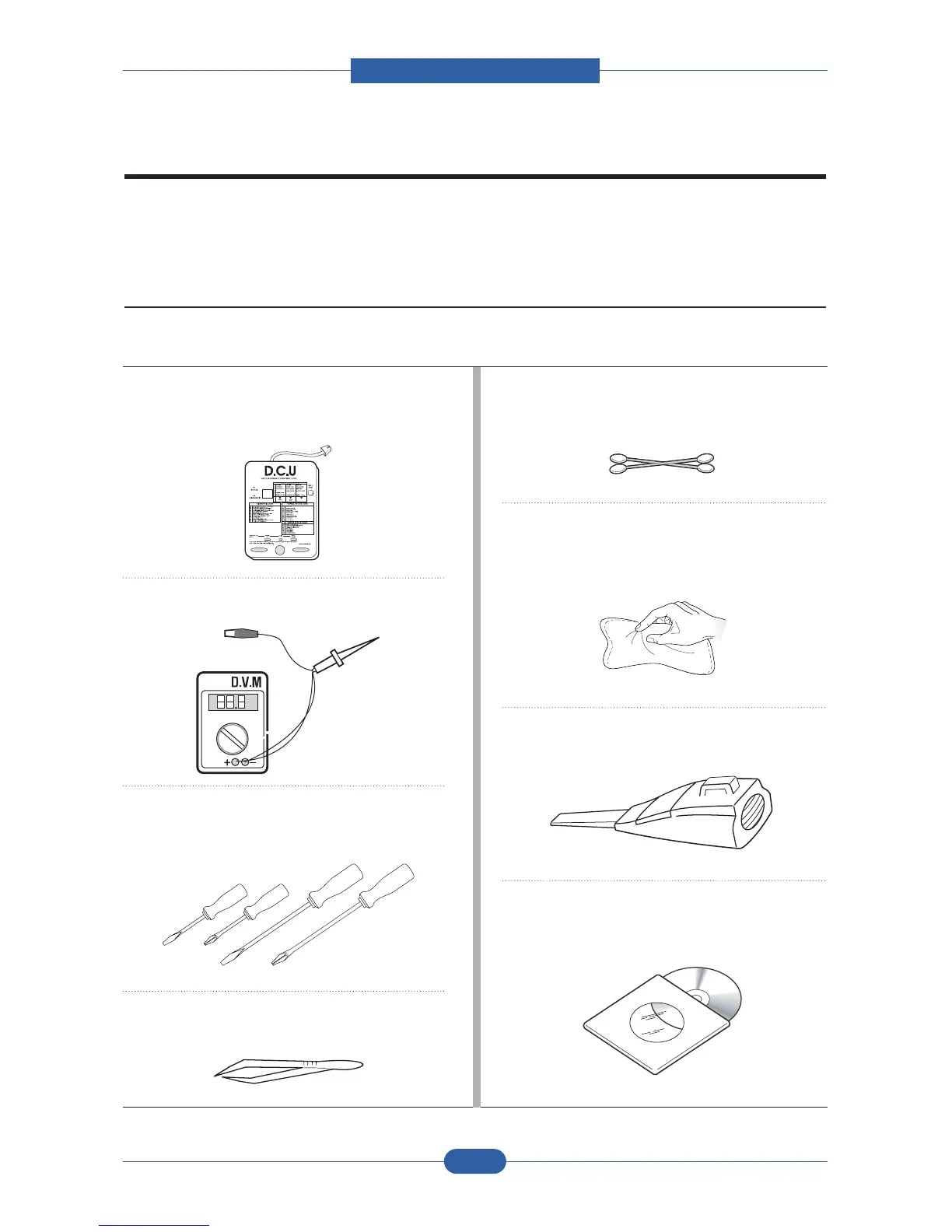

The following tools are recommended safe and easy troubleshooting as described in this service manual.
• DCU (Diagnostic Control Unit)
Standard : Test equipment to diagnose the Laser
printer supplied by Samsung Electronics.
• DVM (Digital Volt Meter)
Standard : Indicates more than 3 digits.
• Driver
Standard : "-" type, "+" type (M3 long, M3 short, M2
long, M2 short).
• Tweezers
Standard : For general home use, small type.
• Cotton Swab
Standard : For general home use, for medical service.
• Cleaning Equipments
Standard : An IPA(Isopropyl Alcohol)dry wipe tissue or
a gentle neutral detergent and lint-free cloth.
• Vacuum Cleaner
• Software (Driver) installation CD ROM

Samsung ML-1640 Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	600 x 1200 DPI
Time to first page (black, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	16 ppm
Internal memory	8 MB
Processor frequency	150 MHz
Sound pressure level (printing)	50 dB
Total input capacity	150 sheets
Total output capacity	100 sheets
Maximum print size	216 x 356 mm
Paper tray media types	Labels, Plain paper, Recycled paper
Maximum ISO A-series paper size	A4
Compatible operating systems	Windows 2000/ XP/ 2003 Server/ Vista Linux OS Mac OS X 10.3 - 10.5
Maximum duty cycle	5000 pages per month

Weight and Dimensions

Weight	5700 g
Dimensions (WxDxH)	353 x 298 x 209 mm
