Samsung MX-HS6800 - Getting Started; Front Panel

HDMI/
OPTICAL/
COAXIAL
TUNER/AUX
j
k 56
c
7
&
1 43
*d (
2m n
g
l
$^
%
)
e
b
f
@
8
a
9
0
!
#
i
h

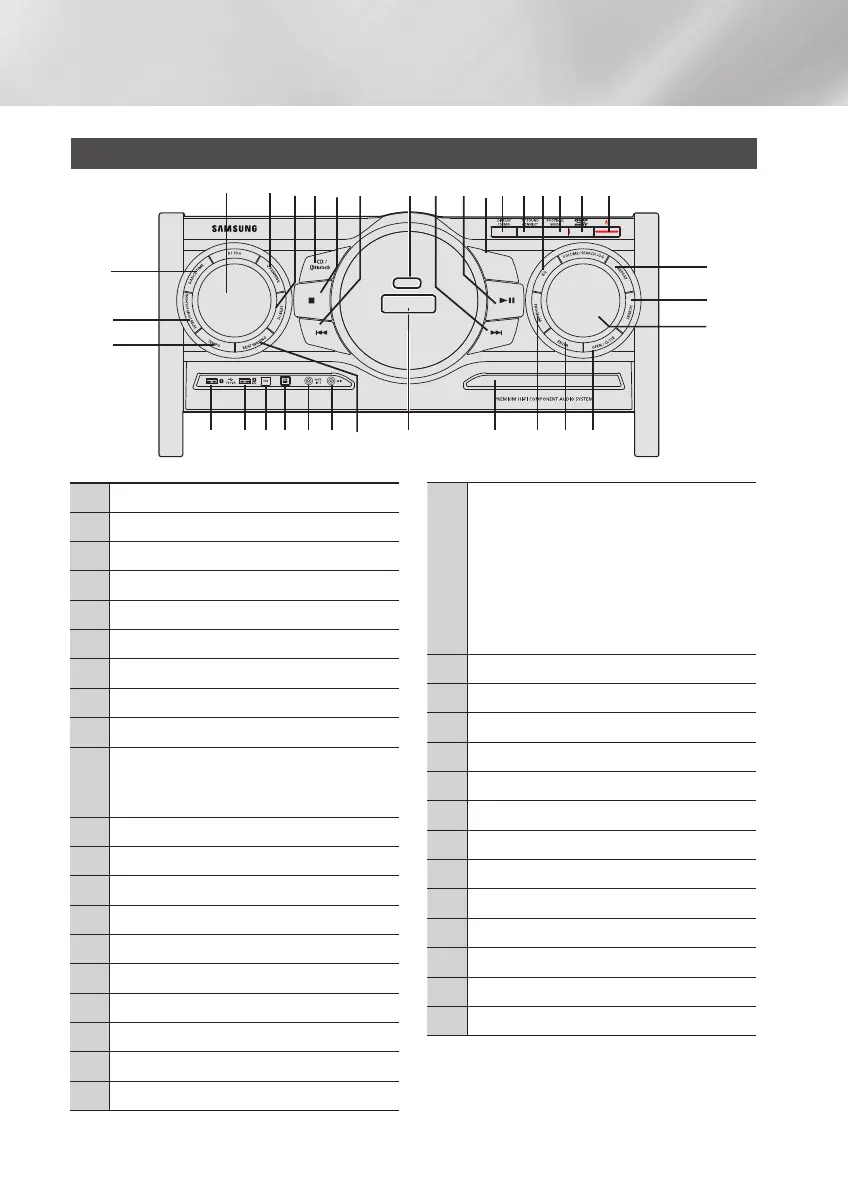

Front Panel
1
REMOTE CONTROL SENSOR
2
FORWARD SEARCH/SKIP button
3
PLAY/PAUSE button
4
HDMI/OPTICAL/COAXIAL button
5
DISPLAY / DEMO button
6
TV SOUND CONNECT button
7
EQ button
8
FOOTBALL MODE button
9
GIGA SOUND BEAT button
0
POWER button
• Press this button to switch your product
on or off.
!
REPEAT button
@
SEARCH button
#
VOLUME / SEARCH JOG
$
OPEN/CLOSE button
%
ENTER button
^
PROGRAM button
&
DISC slot
*
Display Panel
(
BEAT WAVING button
)
MIC jack
a
AUX IN 1 jack
Connecting an external device such as an
MP3 player.
• Connect AUX IN 1 on the front panel
of the product to the Audio Out of an
external device/MP3 player.
• Press the TUNER/AUX button to select
AUX1.
b
USB REC button
c
USB button
d
USB 2 jack for Playing and USB Recording
e
USB 1 jack for Playback only.
f
TEMPO button
g
NON-STOP MUSIC RELAY button
h
DANCE TIME button
i
DJ JOG
j
+PANNING button
k
DJ BEAT button
l
CD/Bluetooth,Tuner/AUX button
m
STOP button
n
BACKWARD SEARCH/SKIP button
