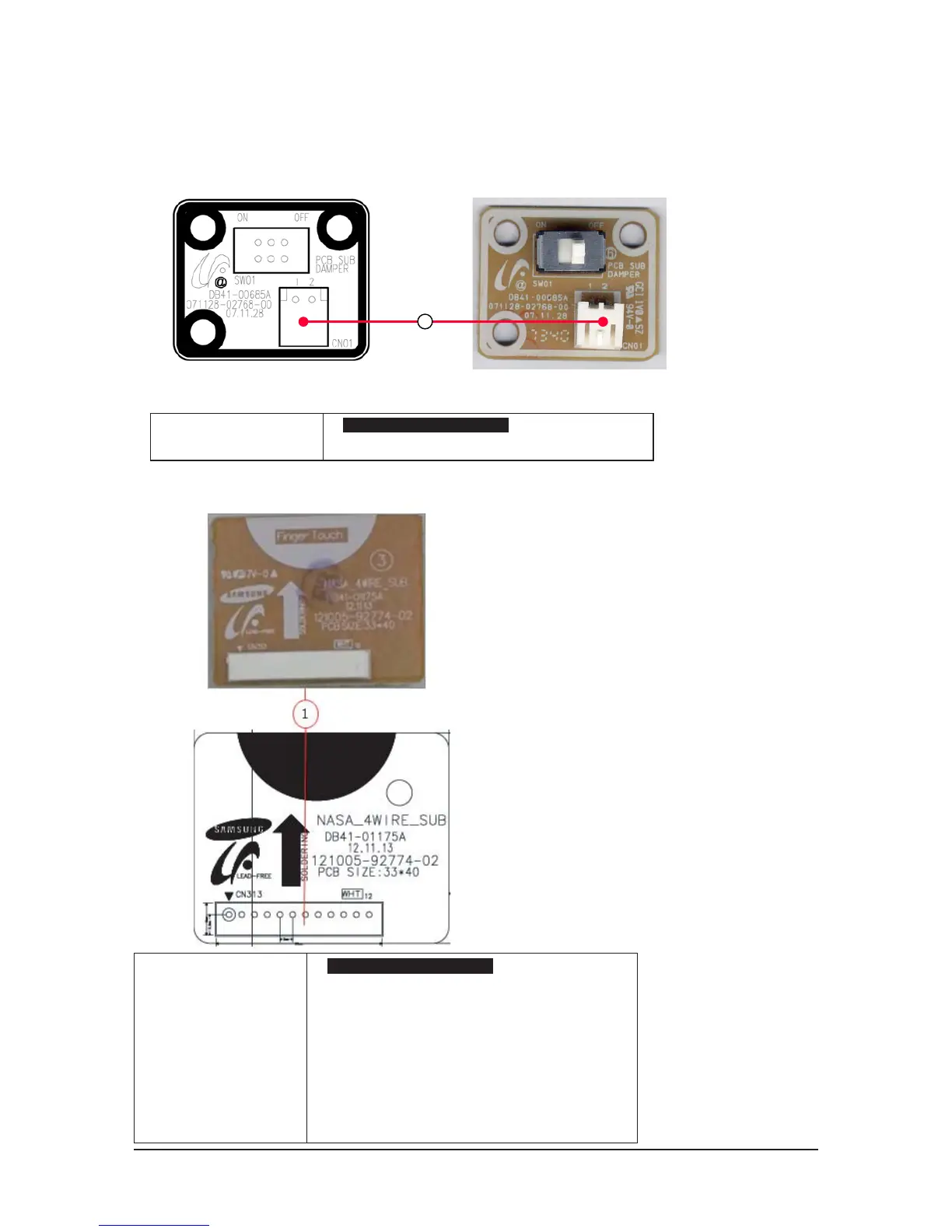

5-1-3 SUB PBA

DC
connecting
connector
①
CN01-DAMPER S/W
#1. DC 5V
#2. GND
CN01-DAMPER S/W
AC052FBCDEH/ AC071FBCDEH
DC
connecting
connector
①
CN01-DAMPER S/W
#1:DC 12V
#2:COM2 Control Signal
#3:COM2 Check Signal
#4: COM2 Check Signal
#5:COM2 _Micom _ AD
#6:Vcc
#7: COM2 Enable Signal
#8:COM2
#9:COM2
#10:COM2-Write
#11:COM2-Read
#12:Ground
CN313-4wire communication (WHT)
AC052HBCDEH/ AC071HBCDEH
