Samsung NS052CDXEA - Outdoor PCB Diagram

Samsung Electronics 5-5

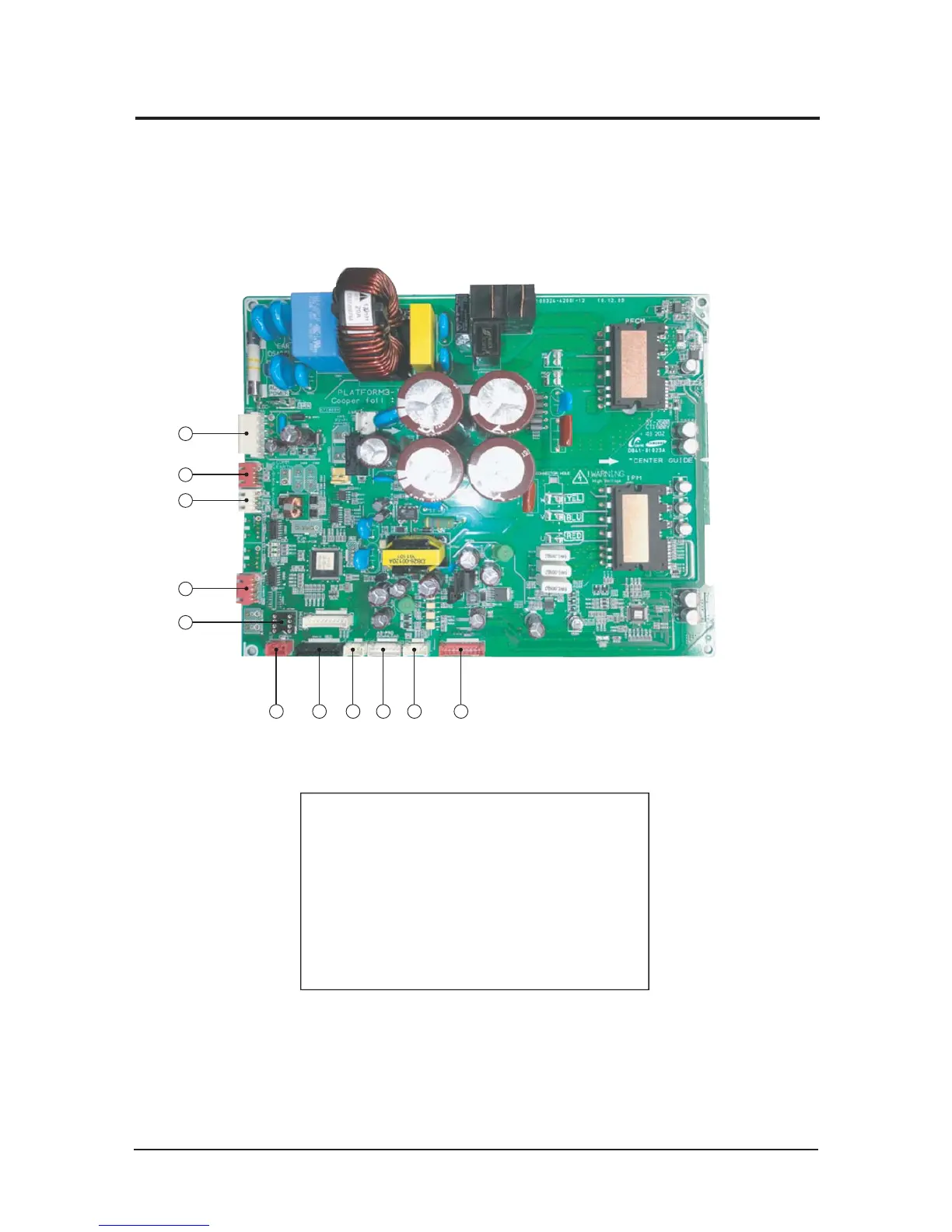

5-2-1 Outdoor Unit PCB
O Main PCB : AC071FCADEH / AC071FCAPEH
①OLP /COND THERMISTOR CONNECTOR SMAW250A04 WHT
②OUT/DISCHARGE THERMISTOR CONNECTOR SMAW250A04 RE
③BLDCFAN CONNETCOR YAN39606V WHT
④EEVA CONNECTOR SMAW250A05 RED
⑤DISPLAY CONNECTOR SMW20010 NTR
⑥DISPLAY CONNECTOR SMAW250A03 RED
⑦PC DOWNLOADCONNECTOR SMW20010 BLK
⑧S NE T CONNECTOR SMW20004 NTR
⑨ASPRO DOWNLOAD CONNECTOR SMAW200A07 WHT
⑩DISPLAY CONNE CTORS MW20005 NTR
⑪DOWNLOADINV CONNECTOR S MW20010 RED
76
5
4
3
2
1
8 9 10 11
5-2. Outdoor PCB Diagram
